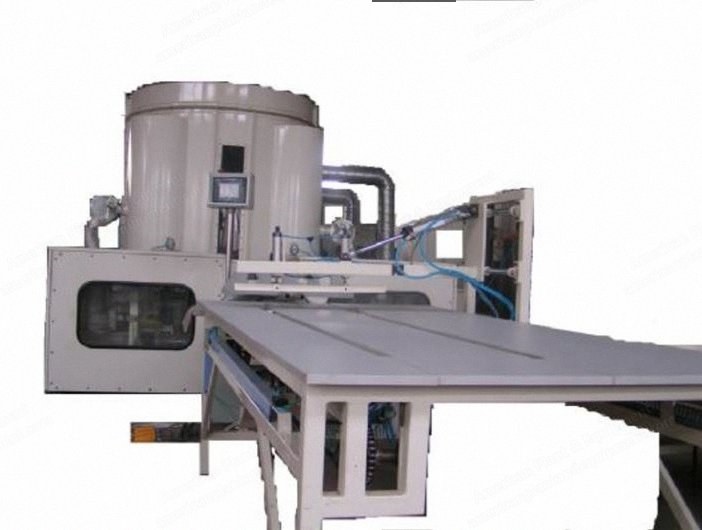

Fully enclosed design to keep surroundings clean and to save material
Automatic weighing with accurate load cell to ensure production quality
Filling time is 2 to 5 seconds
Nice design suitable for all kinds of fabric
Ce certificate
Mainly used to make down feather quilt
Feather down filling uses vacuum method style function that helps to keep the material soft, elastic and hand feeling and avoids the feather being damaged during the filling procedure
Simple operation that saves labor cost and the whole set can be handled by one operator
Working surroundings are kept clean because all filling materials are kept inside of the hopper
Advanced technology level; the whole set is controlled by plc system with an english operation menu wherein 100 recipes can be set up, each recipe can be set up with about 80 sets of weight value which is suitable for very complicated product design within one piece
High working capacity; the average material measuring time is 4 to 6 seconds. The filling time can be adjusted as desired so that two fillers can be handled by only one operator
With our professional r&d group we can design the individual fillings according to your requirements
Specifications
Dimension: approx. 11000 x 2500 x 3000 mm
Voltage: 200/380415 v 50/60 hz 3 phase
Power: 13 kw
Filling range: 2 to 100 g, depending on the material
Accuracy: ±1 g
Air pressure: 0.5-0.8 mpa
There are 4 weighing systems and one working table for down feather
Weighing accuracy can be controlled within 1 gram which can be adjusted by single set or single piece according to different requirement of different products. This helps quality controlling and avoids material waste also
Included Equipment
Material hopper: dia. 1700 x 2500 mm, 1 piece
Weighing system: 800 x 1000 x 1200 mm, 2 pieces
Plc control system and control panel: 1 set
Material changing hopper: 1200 x 1200 x 2500 mm, 1 piece
Air hopper: 1200 x 1200 x 2500 mm, 1 piece
Material feeder: 1200 x 1200 x 1200 mm, 1 piece
Blower: 4 pieces
Pipe: 1 set
Automatic working table: 2 sets
English edition article and video for operation description
Working Table Details
Includes two automatic filling tables
The working table includes pneumatic clamping device for two filling pipes, compound shoe clamping device, ring clamping device air suction, compressed air ring injector
