Fully enclosed design to keep surroundings clean and to save material
Automatic weighing with accurate load cell to ensure production quality
Filling time is 2 to 5 seconds
Nice design suitable for all kinds of fabric
Ce certificate

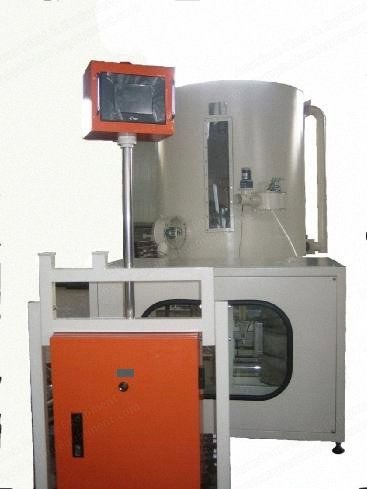

The developed computerized down and feather weighing filling machine is mainly used to fill jackets, sleeping bags, cushions, pillows, pads, comforters etc that are made with down and feather and controlled by a computerized weighing system
Three hopper-system for constant supply
The vacuum filling function that does not hurt the material and keeps the original elasticity and soft-hand feeling
Accurate weighing results; the tolerance is within 0.2 gram. It can be adjusted according to the production requirement by choosing group error or single piece error from the control panel, so that the production quality is assured and material waste is controlled
The whole line can be handled by one operator with very simple operation
All the materials are inside the hoppers without producing any dust that affects the working area
Key electrical components are imported
The whole line operation is controlled by plc system
According to different quantity and quality production requirements the machine control panel can be set up for 100 groups of recipes and each recipe can be 50 sets of different weight value for filling options, which is enough to fill different parts of the same production
The average filling time can be 4 to 10 seconds (depending on the accuracy) and the filling time can be adjusted
The customer’s different requirements are considered by our professional engineers so that the machines are suitable for your particular needs
Specifications
Type: FD114
Dimension: 3000 x 2500 x 2000 mm
Voltage: 200/380/415 v 50/60 hz 3 phase
Power: 3.8 kw
Filling range: 2-100 g, depending on the material
Accuracy: ±0.2 g
Air pressure: 0.5 to 0.8 mpa
Included Components
Material hopper: dia. 1200 x 2000 mm, 1 piece
Weighing system: 1200 x 1000 x 1000 mm, 1 piece (3 sets)
Filling table: 1200 x 550 x 1500 mm, 1 piece
Plc control system and control panel: 1 set
Blower: 3 pieces
Pipe system
