Fully enclosed design to keep surroundings clean and to save material
Automatic weighing with accurate load cell to ensure production quality
Filling time is 2 to 5 seconds
Nice design suitable for all kinds of fabric
Ce certificate
Item no.: PC156
Dimension: approx. 6400×2500×3000mm
Voltage: 200/380415v 50/60hz 3phase
Power: 11kw
Filling range: 2-2000 g, depending on the material
Accuracy: ±10g
Air pressure: 0.5-0.8mpa

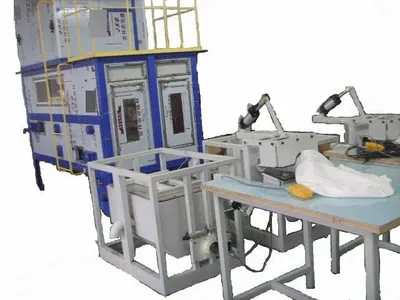

There are 4 weighing systems and one working table for the down feather filling line
It is mainly used to make down feather quilt
Specifications
It includes two automatic filling tables, the working table includes pneumatic clamping device for two filling pipes, compound shoe clamping device, ring clamping device air suction, compressed air ring injector
The feather down filling uses vacuum method style helps keep the original material soft, elastic and hand tact and avoids the feather being damaged during the filling procedure
The accuracy can be controlled within 10 grams (weighing range:2000 grams), which can be adjusted by single set or single piece according to the requirements of different products. It helps quality controlling and avoids material waste
Simple operation that saves labor cost; the whole machine can be handled by only one operator
Keeps clean of the surrounding environment because all the filling materials are kept inside of the hopper
The whole machine is controlled by plc system with an english operation menu wherein 100 recipes can be set up in advance to the control system. Each recipe can be set up to about 80 sets of weight value which is suitable for very complicated product design within one piece
The average material measuring time is 4 to 6 seconds. The filling time can be adjusted as desired so that two fillers can be handled by one operator
Our professional r&d group can design the individual fillings according to your requirements

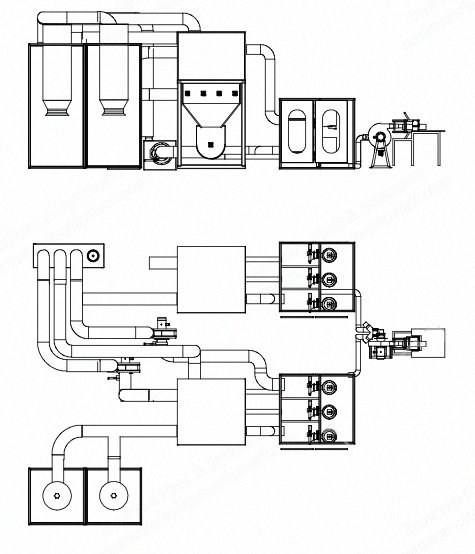

Included Equipment
Feeding system: 2400 x 1500 x 3300mm, 1 piece
Weighing system: 800 x 1000 x 1200mm, 2 pieces
Plc control system & control panel: 1 set
Blower: 4 pieces
Pipe: 1 set
Automatic working table: 2 sets
English edition article and video for operation description
