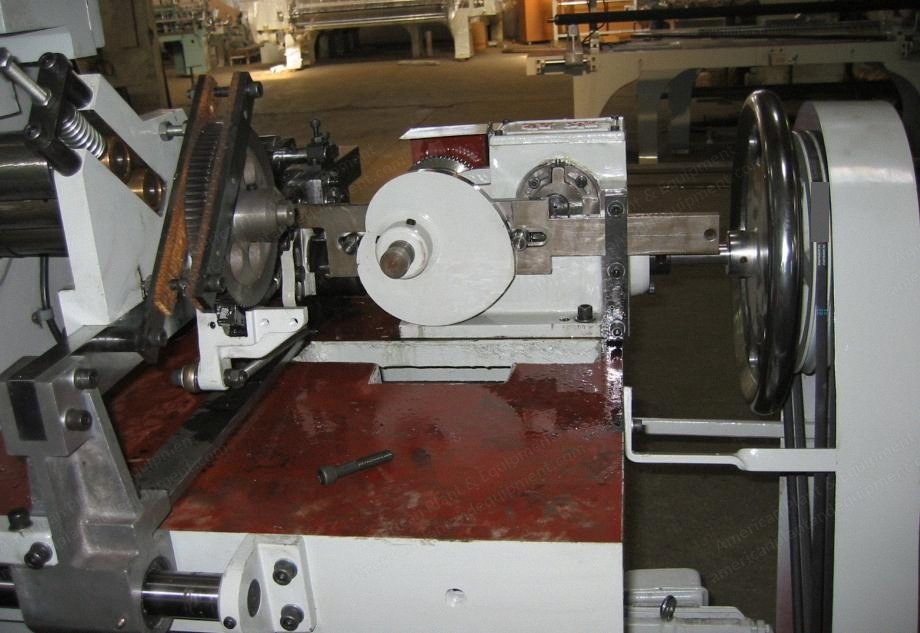

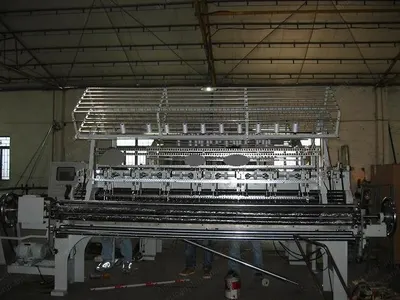

NovaStar, QL119, Mechanical Quilting Machine, 2388mm Width, 3 Needle Bars, 200-500 RPM (New)

NovaStar, QL119, Mechanical Quilting Machine, 2388mm Width, 3 Needle Bars, 200-500 RPM

Description

  1. Overview
    1. Quilting with 180 degrees patterns
    2. Cam driven patterns
    3. Model: QL119 mechanical quilting machine
    4. 94" width (2388 mm)
    5. Three needle bars
    6. Three cam patterns of your choice
    7. # 10 shuttle bobbin
  2. Specifications
    1. Overall dimensions: 4300 x 1150 x 1650 mm (169" x 45" x 65")
    2. Weight: 2530 kgs (5566 lbs)
    3. Running speed: 200-500 rpm
    4. Needle distance: 25.4 mm (one inch)
    5. Motor: 3.5 kW
    6. Thickness: ≤30 mm (1.25")
    7. Maximum pattern size: 12 inches by 12 inches
  3. Standards
    1. Standard: SGS & ISO9000-2000; CE
