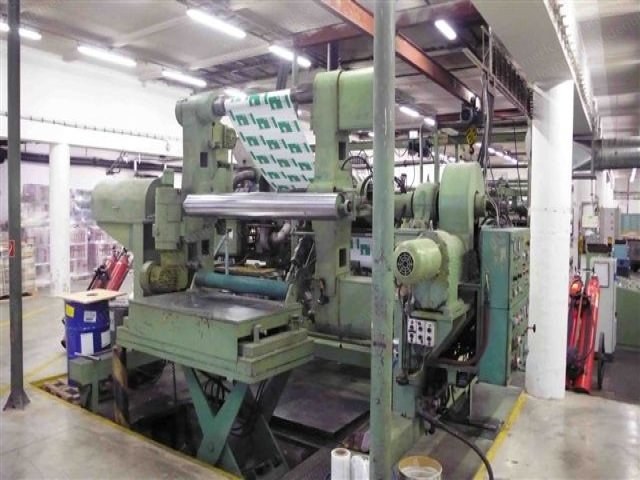

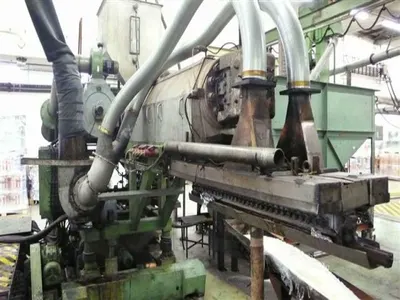

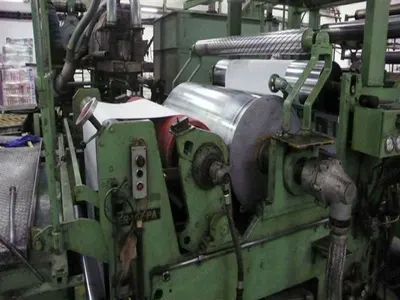

Description Overview Dedicated for extrusion coating of PE and laminating of Al foil on the background material (paper and carton) with extruded PE Working width: 1300 mm Range of processed material: 40 to 350 g/m² Speed: 300 m/min Deposit: PE 8 to 100 g/m² Machine Status Machine in operation till July 2009, dismounting August 2009 Extruder Flat folien extruder Extruder with performance 600 kg PE/hour Screw and 9 cross over sections thermoregulation 6 section nozzle thermoregulation Granulate level in hopper controlled by sensors Transport of granulate by pump with injector manual adjustment of differential screw nozzle PE deposit measuring Lippke Primary Unwinder for Paper and Carton Turret two unwinding axes Shaftless Braking by electromotors Tension read by dancing roller Possibility to unwind in both directions Non stop Reel max. diameter: 1200 mm Unwinder core diameter: 76 and 152 mm Laminating Unit Available: cooling rollers matt 1 pc; gloss 1 pc Nip rollers 2 pcs Edge Trim Edge trim with inject exhausting behind the laminating unit Edge trim with inject exhausting in a front of rewinder Rewinder Rewinder pope Rewinder equipped with a manipulator with shafts Unwinding Unit of Al Foil All foil thickness 7 to 38 microns Unwinded foil reel maximum diameter: 800 mm Unwinded foil reel width: 1200 mm Al foil tension regulation by pneumatic fluid sensor Material Pre-Treatment 2nd pre-treatment a front of laminating unit – flame treating – Aerogent producer Additional Notes The equipment doesn’t have own air pressure and cooling water sources
