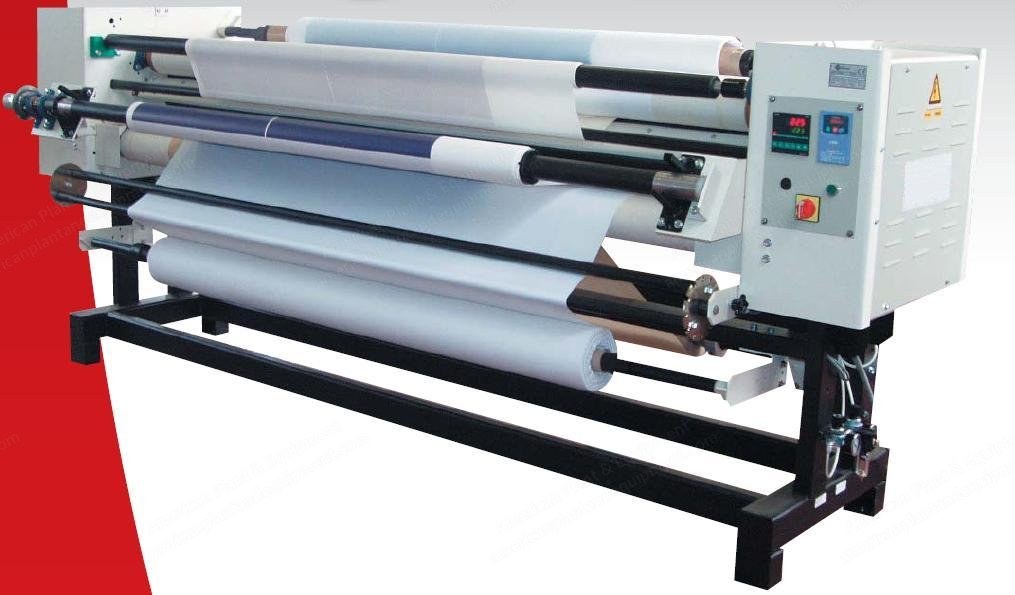

Lemaire, Range D, 240mm Diameter, 1700-3200mm Working Width, Nomex Blanket, Transfer Printing Calender

Name: Lemaire, Range D, 240mm Diameter, 1700-3200mm Working Width, Nomex Blanket, Transfer Printing Calender
Brand: Lemaire
SKU: G-0169

‹ Go Back Next Product ›

Description

Overview
1. Diameter: 240 mm
2. Available models: DPC, DPV, DPX, DPY, DPS
3. Working width: DPC 1700 mm, DPV 1900 mm, DPX 2300 mm, DPY 2500 mm, DPS 3200 mm
4. With a speed of 27 to 81 meters/hour the calenders are perfectly adapted for the transfer-printing of small production and sampling, the transfer-printing of pieces, the heat-setting of inks on fabrics printed by direct ink-jet
5. Blanket: Nomex
Speed
1. DPC/DPV/DPX at 20 seconds contact time: 81 m/h
2. DPY/DPS at 20 seconds contact time: 65 m/h
3. DPC/DPV/DPX at 40 seconds contact time: 41 m/h
4. DPY/DPS at 40 seconds contact time: 33 m/h
5. DPC/DPV/DPX at 60 seconds contact time: 27 m/h
6. DPY/DPS at 60 seconds contact time: 22 m/h
Heating And Power
1. Heating: Electrically heated thermal oil
2. Total installed power: DPC 18 kW, DPV 20 kW, DPX 24 kW, DPY 27 kW, DPS 30 kW
Included Components
1. 1 unwinding support bar for fabric to be printed
2. 1 rewinding support bar for printed fabric
3. 1 unwinding support bar for heat transfer paper
4. 1 rewinding support bar for used heat transfer paper
5. 1 unwinding and rewinding system for protective paper
Dimensions And Weight
1. Width: DPC 730 mm, DPV 730 mm, DPX 730 mm, DPY 1500 mm, DPS 1500 mm
2. Length: DPC 2740 mm, DPV 2940 mm, DPX 3340 mm, DPY 4000 mm, DPS 4700 mm
3. Height: DPC 1380 mm, DPV 1380 mm, DPX 1380 mm, DPY 1500 mm, DPS 1500 mm
4. Weight: DPC 1000 kg, DPV 1200 kg, DPX 1500 kg, DPY 3000 kg, DPS 3500 kg
Options
1. A second re-roll bar for used heat transfer paper
2. Programmable digital timer
3. Fabric counter metric
4. Driven scroll roller
5. Safety brakes
