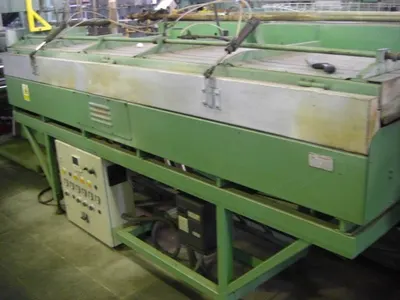

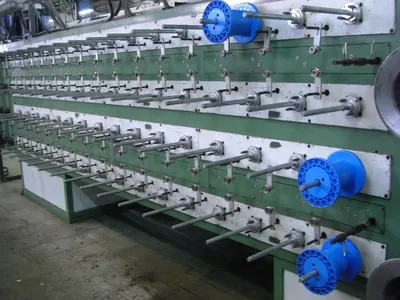

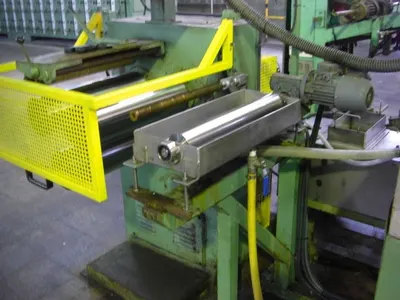

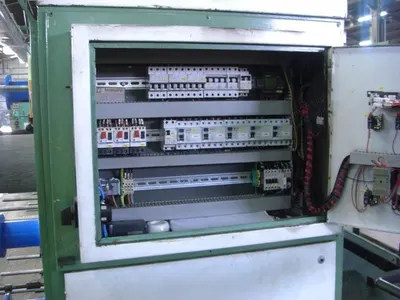

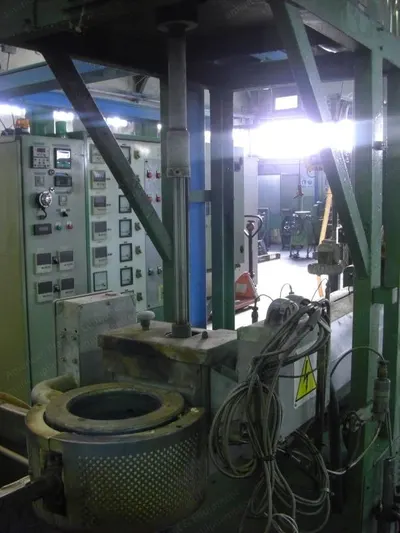

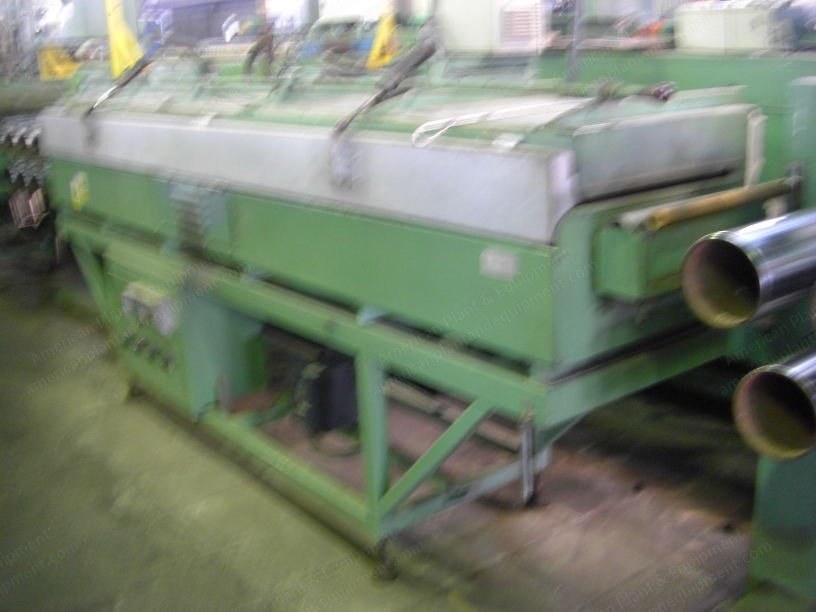

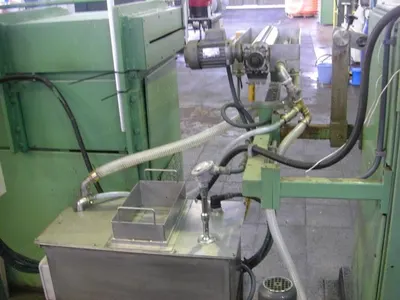

Description Overview Take-up in flanged bobbins DIN 160/200 and cops Weight in DIN 200 PET 2.5 kgr, PP 1.9 kgr Extruder And Pump Screw diameter 45 mm Screw length ratio L/D = 28 Number of heating zones: 4 For extrusion of PP, PET, PBT, PA6/66, with yarns from 0.08 to 1.20 mm Maximum capacity of production with PET: 30 kg/h Included aspirator for raw material and dosing system for additives and master batch Dosing pump 15 cc Electrical drive with 5 thermo-regulation zones (year 2003) Water tank and temperature control to 80° C Godets (Stretching/Annealing) (4 Units) Transmission by chain and speed regulation with frequency regulator Cromed stretching godets in good condition First trolley with water aspirator of yarns at exit of water tank Fourth trolley with oiling roller for oiling the monofilament Stretching/Annealing Oven (3 Units) Temperature control of 3 single zones, 3 meters length Pneumatic lock the door with security pull Winder With 152 motors Bobbin coupling shaft D = 22 mm suitable for DIN-160/200/250 and cop PLS for bobbins, tube, or cone package control (year 2008) Europe
