Lemaire, PZV-C, 1800mm Working Width, Electrically Heated, 3000kg

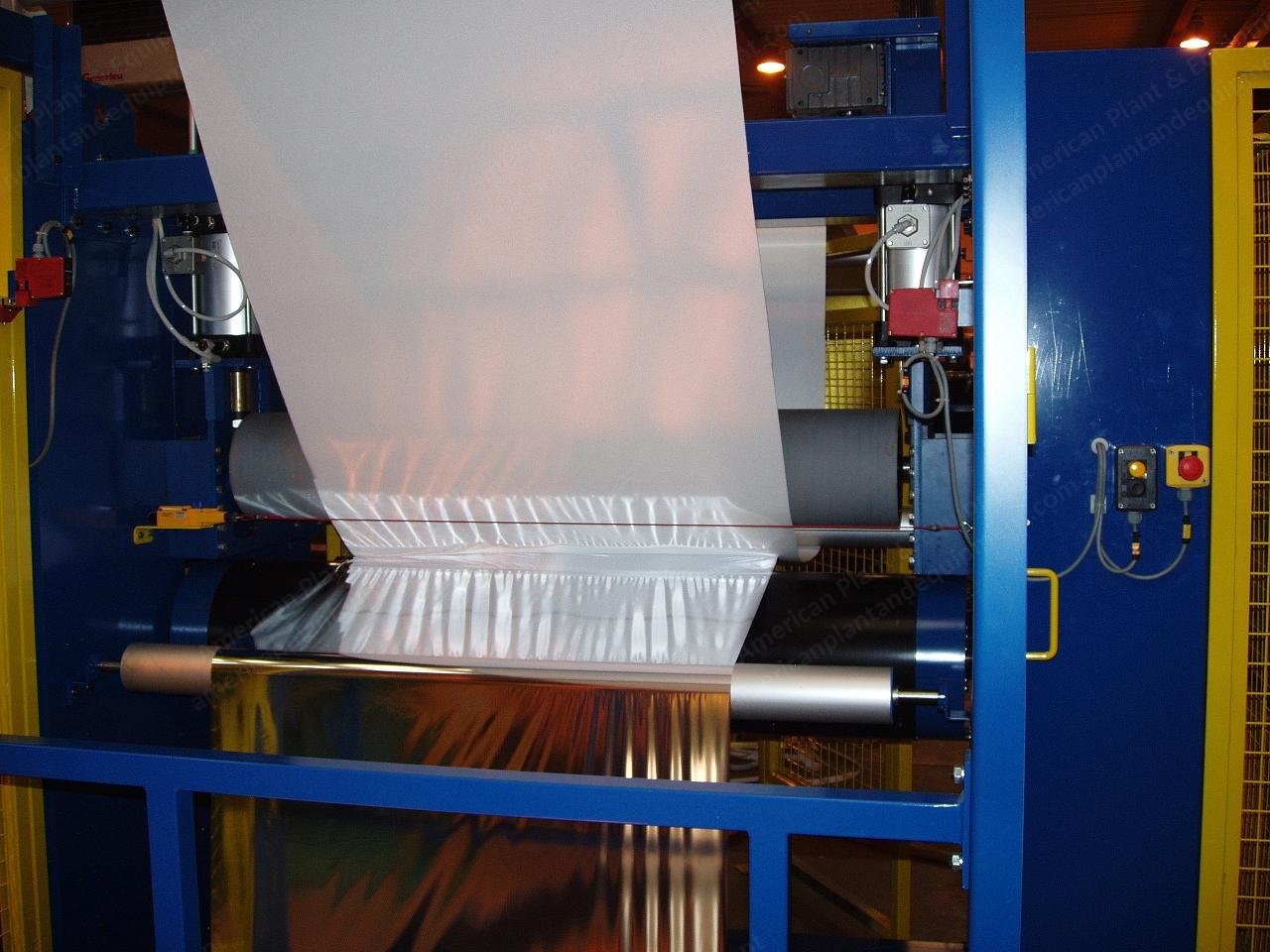

Lemaire, PZV-C, 1800mm Working Width, Electrically Heated, 3000kg

Description

  1. Overview
    1. Model PZV-C 350/1800
    2. Complete frame with control board
    3. Subject to availability
  2. Heating Cylinder
    1. Cylinder diameter: 350 mm or 14 inches
    2. Cylinder width: 2060 mm
    3. Working width up to 1800 mm or 71 inches
    4. Teflon coated cylinder
    5. Variable speed: 2 to 20 meters per minute
    6. Drive ac motor power: 3 kW
  3. Silicone Cylinder
    1. Silicone rubber pressure roller
    2. Resistant to 220°C
    3. Pressure by pneumatic system to 2.5 tons max
    4. Drive ac motor power: 1.5 kW
    5. Possibility of speed variation of +10% (synchronized) with the heating cylinder
    6. Adjustable gap between this cylinder and the main heating cylinder
  4. Heating System
    1. Electrically heated thermal oil
    2. Installed peak power: 28 kW
    3. Average consumption: 15 kW/h
    4. Heated by hot oil without external boiler
    5. Heating elements fitted in tubes located all around the heating cylinders with thermal oil in the double chamber of the cylinder (small quantity of oil)
  5. Included Components
    1. 2 roll-off support bars for foil with safety brakes, axes included
    2. 2 manual tension rollers for the 2 materials to stick
    3. Rollers for supporting the material
    4. 1 complete electrical box
    5. According to safety CE requirements
  6. Specifications
    1. Total weight: 3000 kg
