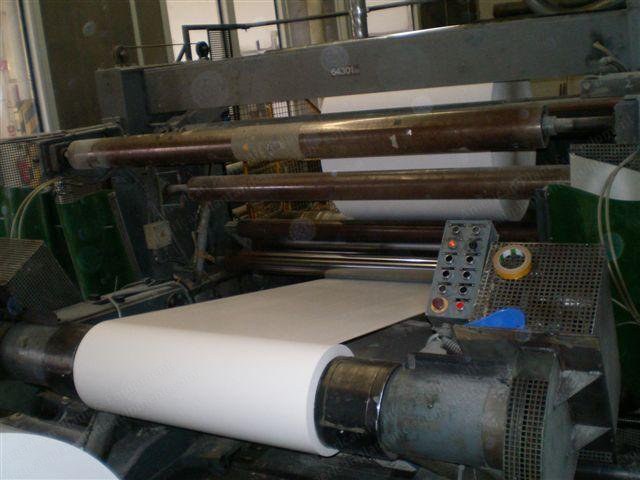

Goebel, U16L, 1977, Slitter Rewinder, 2200mm Working Width, 1000 m/min

Goebel, U16L, 1977, Slitter Rewinder, 2200mm Working Width, 1000 m/min

Description

  1. Overview
    1. Year: 1977
    2. Model: U16L
    3. Electric drive with DC motors
    4. Suitable for thin paper, coated paper, newsprint, kraftpaper and board
  2. Specifications
    1. Maximum working width: 2200 mm
    2. Shaftless unwind with floor pick-up
    3. Maximum unwind diameter: 1500 mm
    4. Shafted rewind for maximum 1300 mm diameter
    5. Maximum mechanical speed: 1000 m/min
    6. Shear-cut circular knife slitting system
    7. Spreading roller
    8. Tension and web guide control
    9. Rider roller
    10. Finished roll unloading table
  3. Condition
    1. Subject to availability
  4. Included
    1. Pictures available upon request
