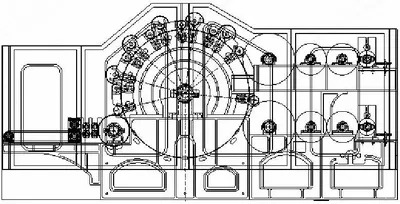

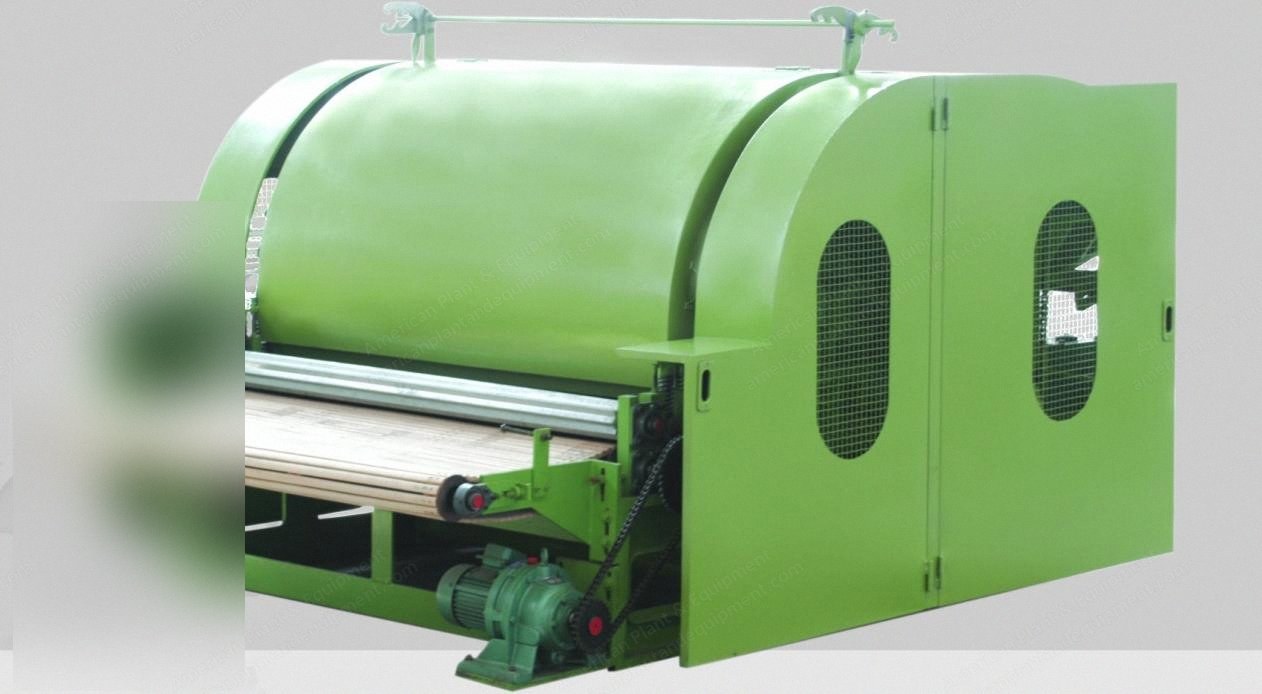

Description Overview Reference number: G-0659 Single cylinder double doffer double random card/garnett machine (new) Suitable to card the fiber and process it into regular fiber web for webs Technical Parameters Working width: available up to 2500 mm Output capacity: up to 300 kg/h (with first class 6 denier or above fiber as standard) Fiber range: 2.5 to 15 D × 36 to 65 mm Outlet speed: ≤ 50 m/min Installed power: 23.5 kW Structure and Characteristics Machine frame is made of high quality castings (HT200), high temperature stress removed and high-precision processed, assembled with braces Horizontal feeding lattice is PVC lattice, with press roller for even feeding Four rollers for feeding with diameter 65 mm, at the entry, anti-metal protection device is used at the fiber input of machine with auto-stop warning Diameter of main cylinder: 1230 mm, diameter of double doffer: 492 mm each Five carding sections to card fiber completely (workers and stripper pairs) and form web evenly Edge-suction system is equipped in 4 places The dust particles will be transferred to dust collection station Walking platforms are placed on two sides of machine for maintenance Machine safe guard cover is transparent organic glass Power Main cylinder: 15 kW Double doffer: 3 kW Feed rolls: 1.5 kW Edge-suction fan: 4 kW All motors are inverter type except edge-suction fan
