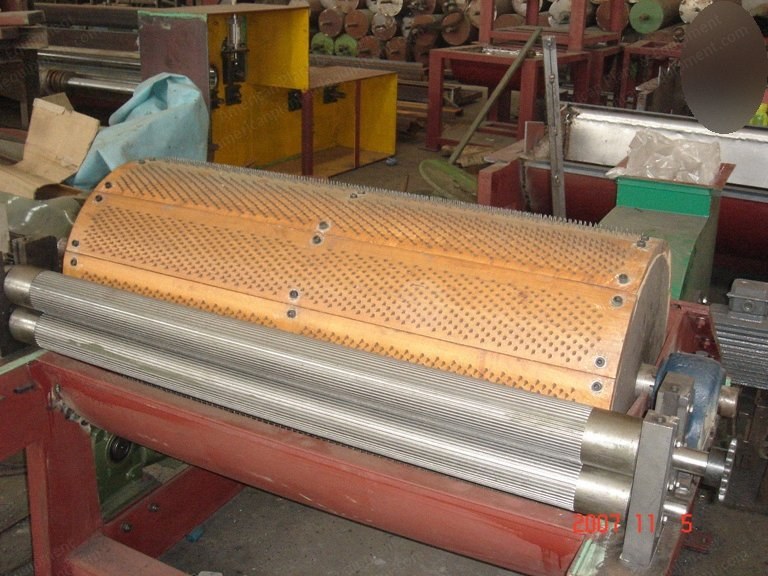

NovaStar, FP131, Pre-Opener, 1300mm Working Width, 350 kg/h Capacity, 8.45 kW (New)

NovaStar, FP131, Pre-Opener, 1300mm Working Width, 350 kg/h Capacity, 8.45 kW

Description

  1. Overview
    1. Used to pre-open and mix fiber, which will be sent to next working station by fan.
  2. Technical Data
    1. Working width: 1300 mm.
    2. Opening method: spiked roll for opening.
    3. Diameter of opening roller: 500 mm (with the clothing).
    4. Speed of opening roller: 900 rpm.
    5. Production capacity: 350 kg/h.
    6. Installed power: 8.45 kW.
  3. Structure and Characteristics
    1. Machine frame is 10 mm thick plate welded.
    2. Feeding apron is wooden lattice.
    3. Feed rolls are steel groove style rolls, diameter is 75 mm, upper and bottom rolls with spring loaded pressure.
    4. With metal feet welded to main cylinder body.
    5. Fiber transfer fan is separately driven.
    6. Permanent strong magnet for metallic impurities removal.
    7. Diameter of fiber transfer duct is 300 mm.
    8. Photoelectric sensors in cabinet collector for controlling feed amount, and equipped with reverse switch.
    9. Power: opening roll 5.5 kW, feed rolls 0.75 kW inverter drive, fan 2.2 kW.
