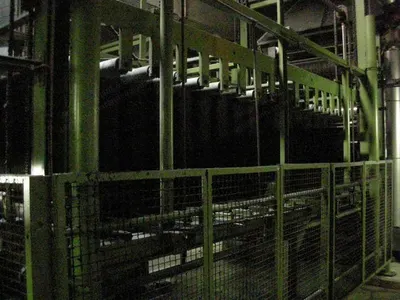

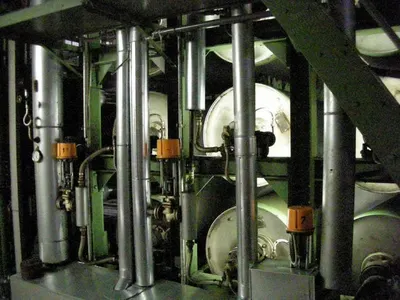

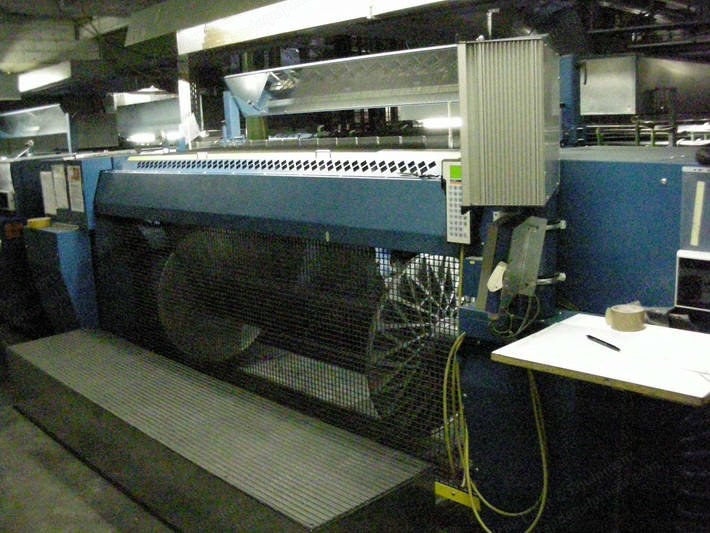

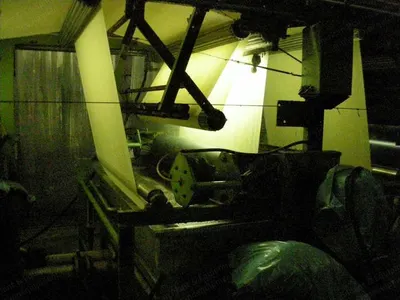

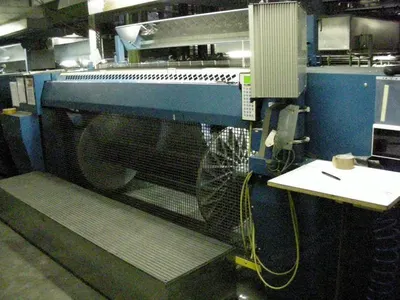

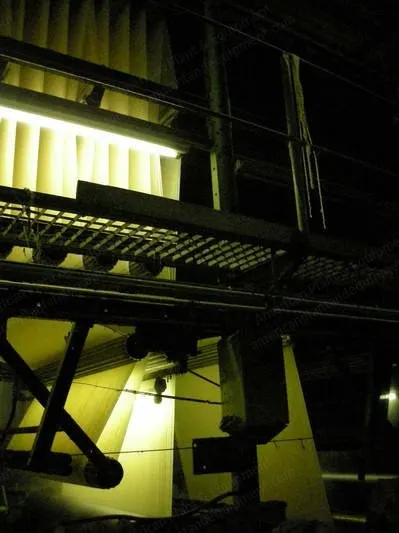

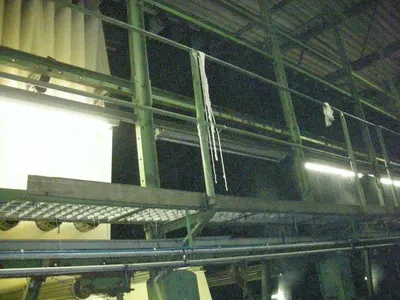

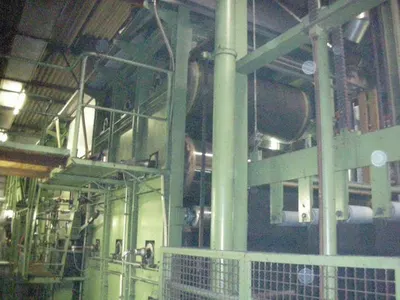

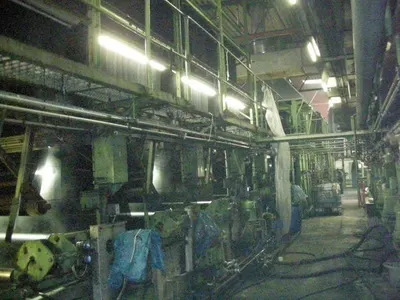

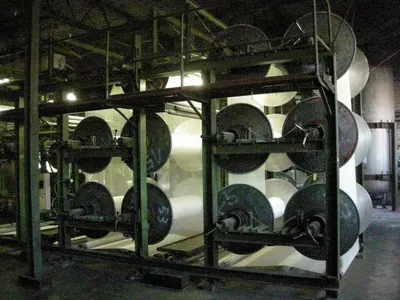

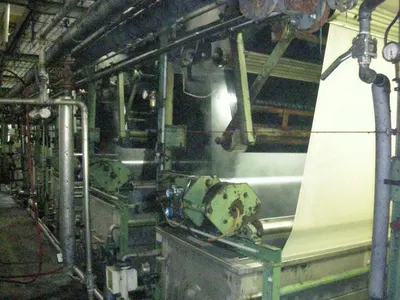

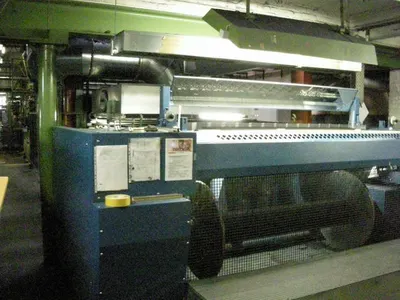

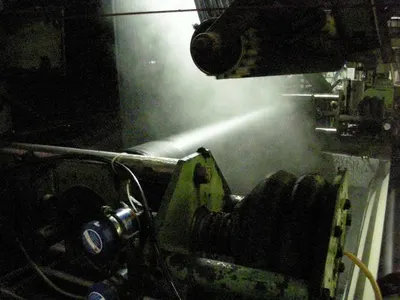

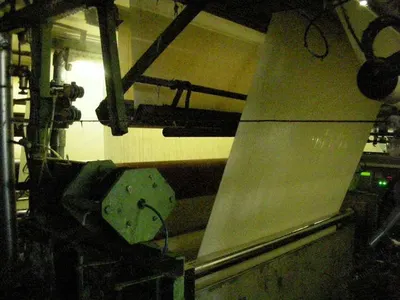

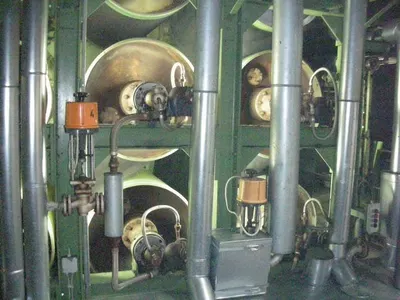

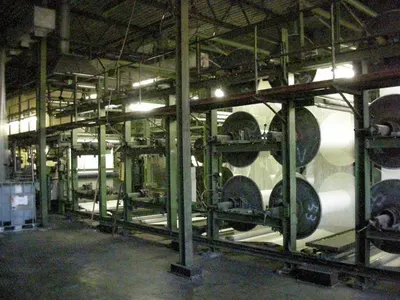

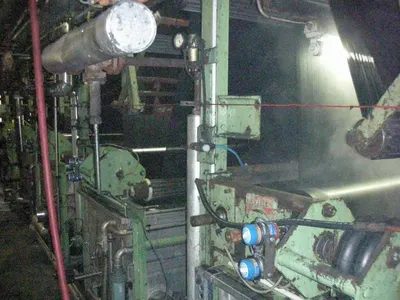

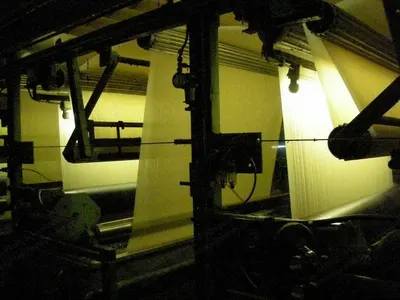

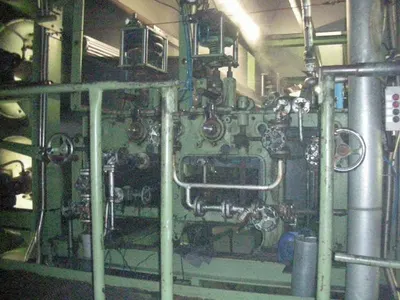

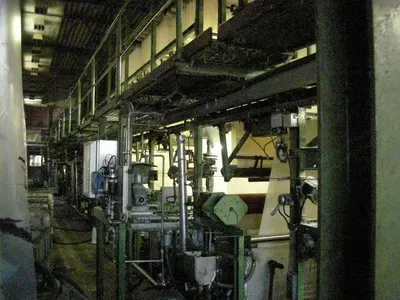

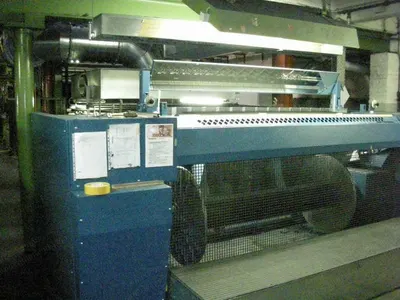

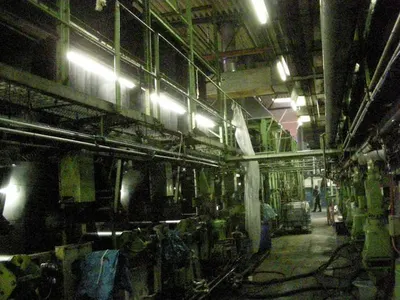

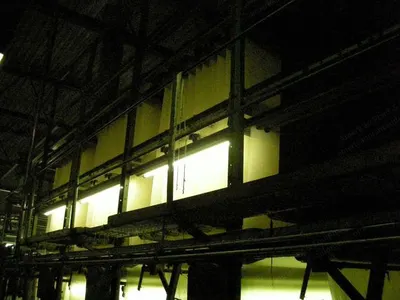

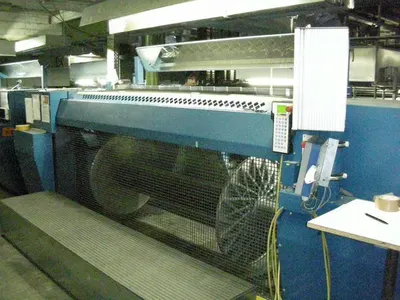

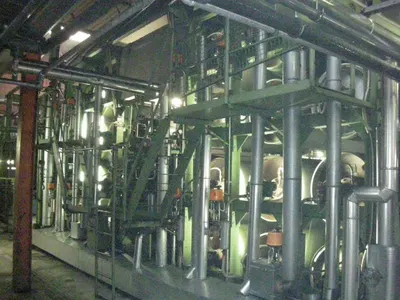

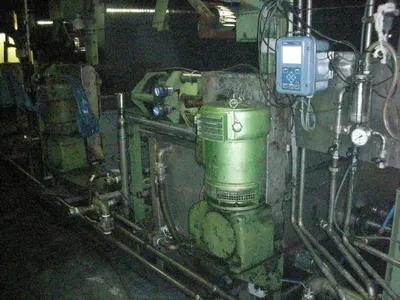

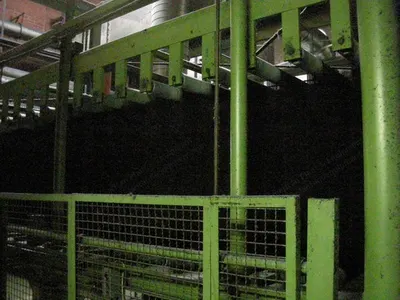

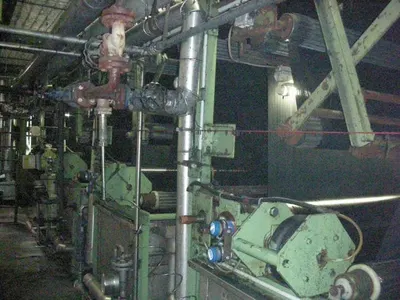

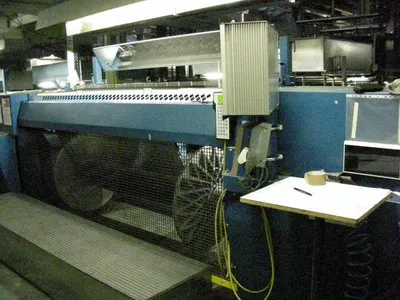

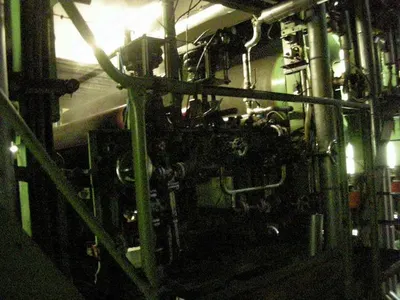

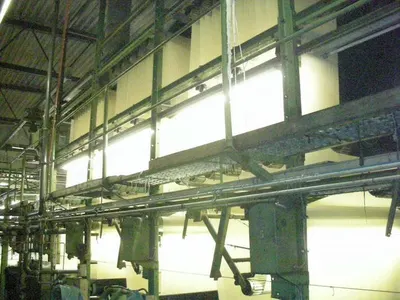

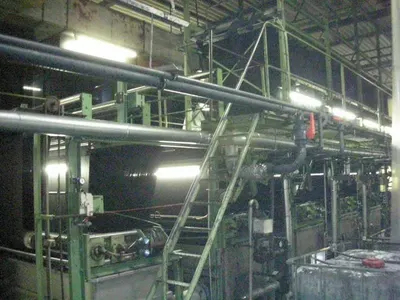

Description Overview Loop oxidation indigo dyeing line Make: Sucker Muller With Benninger continuous warp dye and sizing with beaming machine Year: 1988 – 2005 Warp Beam Unwinding Creel Suitable for 12 warp beams with a warp beam width from 1800 – 2000 mm, adjustable Max beam disc diameter 1000 mm Mercerizing and Dyeing Section Stainless steel guiding and deviation rollers for feeding into 1st bath for mercerizing the warp Roller width of all the baths: 2000 mm Comprising of 10 dyeing baths each with 2 roll squeezing mangle Each bath exit feeding warp into compensator for oxidation by expanding and guiding rollers Production speed: 50-60 m per minute Pre-Dryer and Sizing Exit of dyeing section into pre-dryer steam heated with 12 cylinders, teflonized Entry into sizing bath double dip and squeeze Exit and feeding into cylinder dryer with 12 cylinders Compensator and Beaming Feeding into compensator with approx 120 m contents for continuous interruption-free production Feeding by expanding rollers onto Benninger beaming machine, year 2005 With suitable 2400 mm beaming width possible and max warp beam disc diameter 1000 mm Lifting and delivery device Complete with Bensizetec beaming electronic visual control
