Purteco, Compress 3, Foam Roll Compression Machine, 2200mm Max Width, 20000 N Pressing Force (New)

Purteco, Compress 3, Foam Roll Compression Machine, 2200mm Max Width, 20000 N Pressing Force

Description

  1. Overview
    1. Reference number: G-0814
    2. Foam roll compression machine for sale

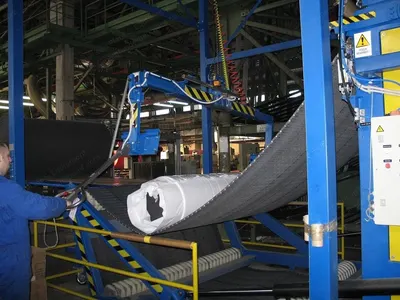

    3. Round-roll press machine - PUR-Compress - for pressing and enveloping polyurethane foam
    4. This variant of press has installed press-belt “Habasit Link”
  2. Specifications
    1. Product: round-roll press machine
    2. Type: Compress 3
    3. Max length: 5830 mm (+ place for the lift)
    4. Max width: 4440 mm
    5. Max height: 3760 mm
    6. Belt drive: 2.2 kW
    7. Belt-tie drive: 4 kW
    8. Cover-material towing drive: 0.37 kW
    9. Belt-engagement drive: 0.25 kW
    10. Hydraulic set motor: 5.5 kW
    11. Together: 12.4 kW
    12. Specified power: 15 kW
    13. Operating air pressure: 6 bar
    14. Cycle air consumption: 70 L
    15. Oil pressure: 70 bar
    16. Oil type: hydraulic oil “Olma 46”
    17. Pressing force: 20,000 N
    18. Belt speed: 20 m/min
    19. Pressing time (1 cycle): 60-80 s
    20. Round-roll max width: 2200 mm
    21. Round-roll max diameter: 2000 mm
    22. Round-roll min diameter: 400 mm
    23. Round-roll max change of diameter: 900 mm (in the case when round-roll diameter is 2000, by smaller diameters or solid materials the size is smaller)
    24. Weight: 4000 kg
    25. Cover-material round-ball max diameter: 450 mm
    26. Emission: air-70 L/cycle
    27. Noise: <70 dB
  3. Condition And Safety
    1. The machine should not be used in explosive atmosphere
    2. The machine corresponds to the safety regulations and general warranty periods
    3. Warranty period: 12 months
    4. After testing the machine should be partly dismantled because of the transport
    5. Time of delivery: 5 months after receipt of confirmation regarding payment of advanced invoice

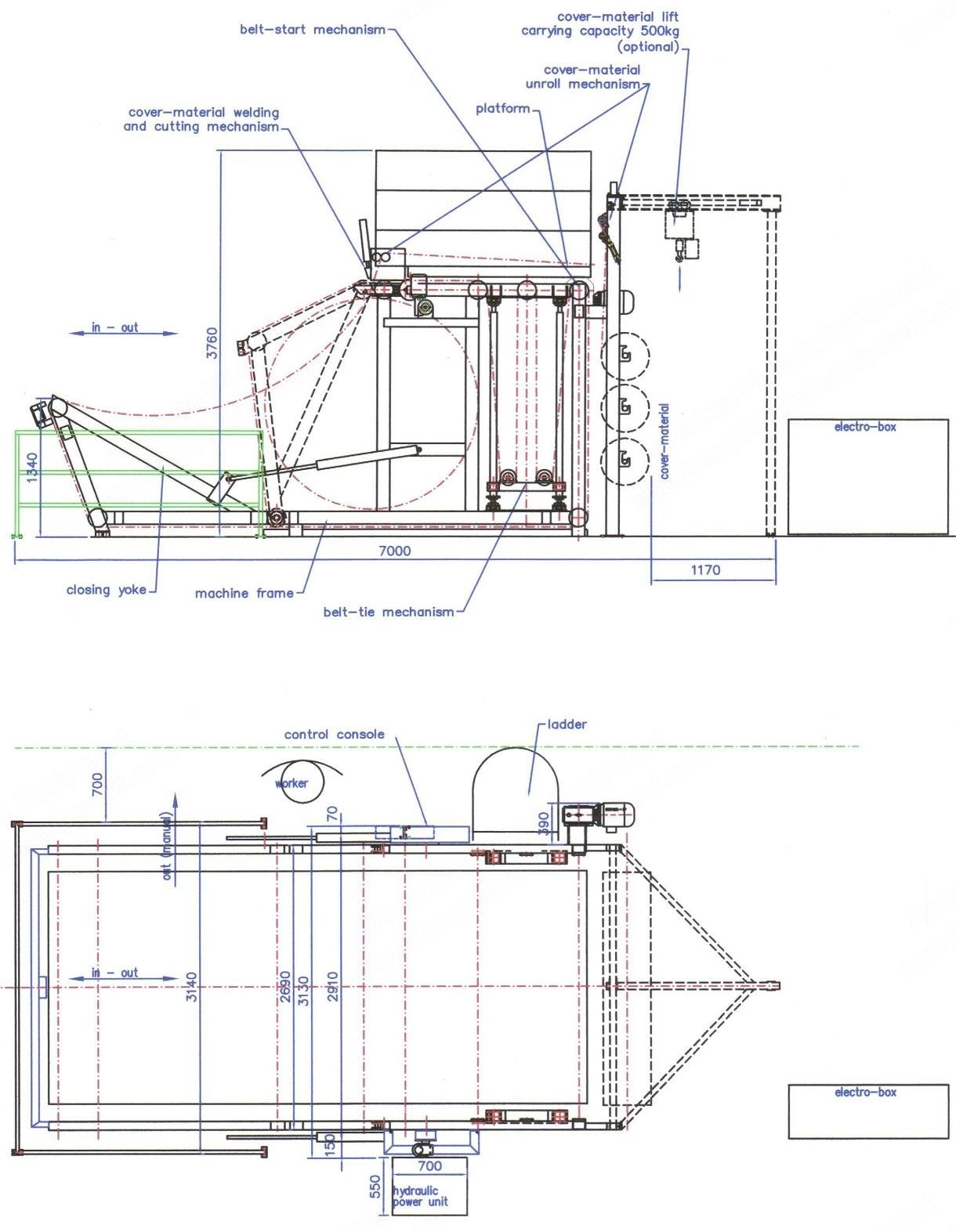

  4. Included Components
    1. Machine frame
    2. Closing yoke
    3. Belt-tie mechanism
    4. Belt-start mechanism
    5. Cover-material dose mechanism (polyethylene foil)
    6. Cover-material welding and cutting mechanism (polyethylene foil)
    7. Cover-material unroll mechanism
    8. Hydraulic and pneumatic equipment
    9. Electro-box with control console
    10. Machine is equipped with operating controller “Siemens OP3” – with the controller we are able to choose functions or change parameters
  5. Possible Additional Parts

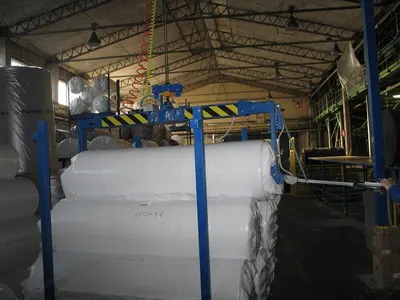

    1. Cover-material lift; carrying capacity: 500 kg (at separate price)
    2. Monorail crane with grab for lifting roll out of round-roll press machine (at separate price)
    3. Operating plate
  6. Colors
    1. Blue: 5010 (carcase)
    2. Grey: 7040 (protective sheets and fixed barrier)
    3. On request other colors are possible against additional price
