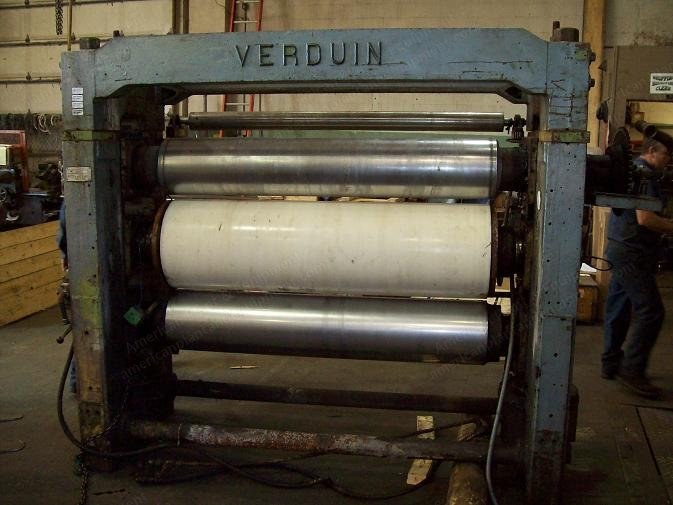

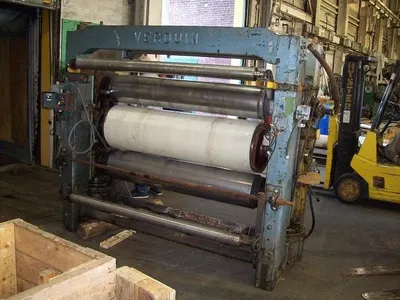

Top roll is driven, 11” diameter x 61” (1549 mm) face steel roll, chrome plated, bored for gas (or steam) heat gas pipe and used s.s. braided flex hose used by last owner are installed into top roll bore
350 degrees f from gas burner, actual steel roll face temperature
Center roll is a syncal nylon sleeve mounted on a steel mandrel
Center roll size is 17.25” (438 mm) diameter x 59” face (1498 mm)
Bottom roll is 12” (304 mm) diameter x 60” (1524 mm) face steel roll, chrome plated
Bottom roll was not heated
All three rolls use spherical roller bearings lubricated by grease
Condition and Included Items
There are no winders as calender last ran in-line with other equipment
Calender is used and being sold on an as is/where is basis
