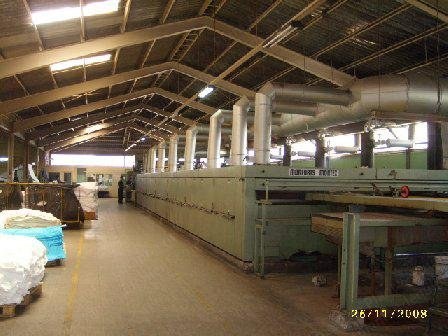

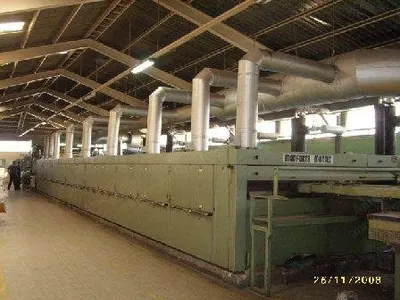

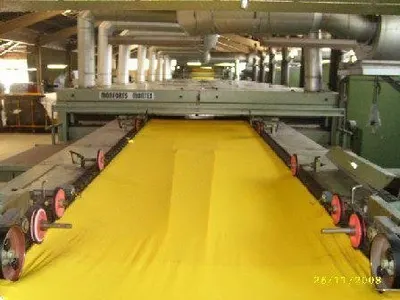

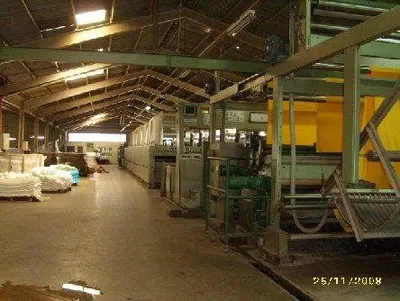

Monforts, Montex-12 G/K, 1991, 3400mm Working Width, 6 Zones, Pin and Clip Chain

Monforts, Montex-12 G/K, 1991, 3400mm Working Width, 6 Zones, Pin and Clip Chain

Description

  1. Overview
    1. Foulard (pad) weft straightener with 6 zones
    2. Wide entrance: 3400 mm
    3. Chains: pin and clip
    4. High-performance Monforts stenter frame for treatment of woven and knitted fabrics
    5. Model: Montex-12 G/K
    6. Year: 1991
    7. Serial: 45-1-64667
  2. Technical Data
    1. Nominal width: 340 cm
    2. Minimum tension width: 70 cm
    3. Maximum tension width: 320 cm
  3. Lengths (Standard Measurements)
    1. Entry field: approx. 3.3 m
    2. Total length of sections: approx. 19.96 m
    3. Exit field: approx. 2.00 m
    4. Total installation length
    5. Section height: approx. 1.57 m
  4. Speed Range
    1. From 5 to 100 m/min (measured from the articulation point to the re-feed shaft)
  5. General Characteristics
    1. Combined pin and clip chain, horizontal, mounted on ball bearings with long-life lubrication and grease nipples on each bearing
    2. Fabric entry device KR-48
    3. Selvedge feeler FR-15
    4. 2 suction fans with motors
    5. Air-support nozzles
    6. 12 radial fans for circulating air, with three-phase current motors 11 kW
    7. 6 air heaters for heating via circulating oil for 12 sections
    8. 6 installations for automatic temperature regulation
    9. Heating installation via circulating oil, maximum output 1,500,000 kcal/h
    10. Vertical boiler design
    11. Heating installation suitable for light oil
    12. 1 service platform
    13. 1 additional traction roller
    14. 2 driven expander cylinders
    15. 1 instrument bridge
    16. 2 pairs of selvedge unwinders
    17. 1 pair with 2 fixed spindles
    18. 1 pair with 4 driven spindles
    19. Overfeed advance unit
    20. Entry field length 4700 mm instead of the 3300 mm included in the basic machine execution
    21. Support nozzle vaporizer
    22. Support tube
    23. Selvedge gluing device
    24. 2 central gluing devices
    25. Over-tension device
    26. Additional width adjustment, motor-adjustable for the first spindle: adjustment range +10 cm relative to pre-set width, -30 cm relative to pre-set width
    27. Additional width adjustment, motor-adjustable for the second, third, and fourth spindles in the fabric running direction: adjustment range +10 cm relative to pre-set width, -10 cm relative to pre-set width
    28. Circulating air bypass flaps with intermediate position of common bypass devices
    29. Additional lint collection screens
    30. Exit field extension of 1.4 m
    31. Cooling zone with nozzles, total cooling zone length approx. 1000 mm
    32. Selvedge cutting device
    33. 2 laterally displaceable central cutting devices
    34. Automatic lifting device for central cutting devices
    35. 1 Monfor-Matic control system for stenters with 12 measuring sensors
    36. Gravimat weight per unit area measuring and regulating installation, type FMI/R-7 AS
    37. Support bridge for Gravimat installation

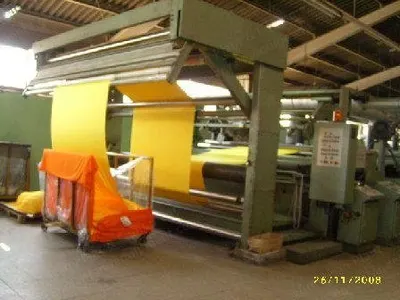

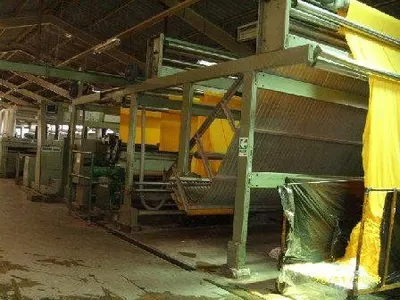

  6. Entry Equipment
    1. Entry combination with trough for wet fabric (trough placed at floor level) for working from large fabric rolls
    2. Fabric band regulator SRA 3302
    3. Upper fabric passage frame designed to increase the elevated fabric entry height by approx. 3 m
    4. 3 guide rollers in the fabric passage section
    5. Orthomat straightening unit, type RFMC 96H with: 6 photo-electronic scanning heads, pre-set stretch with control unit, tension control unit for adjusting desired fabric tension, driven entry expander roller preceding the straightener pedestal, fabric band regulator SRA 3302
    6. 1 foulard with 2 cylinders, model Matex-2H, horizontal cylinder arrangement, stainless steel double-walled trough for indirect heating with double fabric passage, trough can be raised and lowered pneumatically, automatic temperature regulation installation, bath level regulation installation
    7. 1 driven, beveled expander cylinder for working with knitted fabrics
    8. 1 curved and additional driven expander cylinder
    9. 1 driven, beveled expander cylinder
    10. 2 cylinders for working with knitted fabrics
    11. Rotary compensator, fabric tension adjustable pneumatically
  7. Exit Equipment
    1. 1 driven extraction roller, steplessly adjustable, 190 mm diameter, driven by a DC motor-reducer
    2. Length counter with measuring roller and printer
    3. Folding device
    4. Winding device for large fabric rolls (Sochor), curved tension tube arranged in front of the traction roller
    5. Continuous core cutter winder
    6. Automatic fabric roll feed
    7. Seam indicator
    8. Piece length pre-selection
    9. 2 couplings

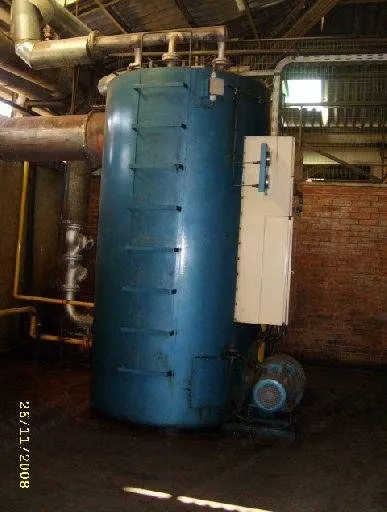

  8. Thermal Fluid Boiler
    1. Thermopac model TP 1500
    2. Model TP 1500 M (natural gas + diesel oil)
    3. Capacity: 1,500,000 kcal/h
    4. Serial number: 12/04
    5. Work number: 0168-04
    6. Year of manufacture: 2004
    7. Manufacturer: ITA
    8. Fluid content: 465 liters
    9. Oil consumption: 204 l/h
    10. Natural gas consumption: 205 m³/h
    11. Monotubular boiler for high circulation speed and high calorific power
    12. Electric control panel
    13. Quick start for economy
    14. Height: 3.30 m
    15. Diameter: 1.45 m
  9. Condition
    1. Pictures available
