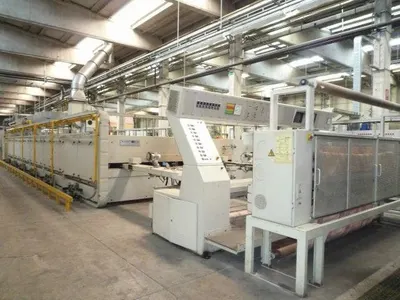

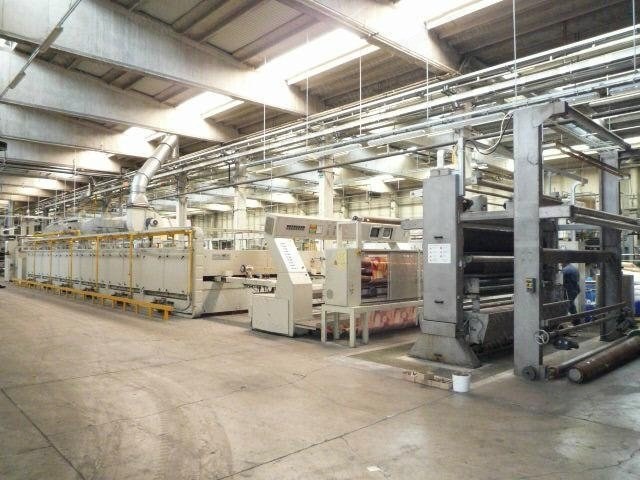

Babcock, Tenter Frame, 1997, 3400mm Roller Width, 6 Chambers, Gas-Heated, Pin and Clip Chain

Babcock, Tenter Frame, 1997, 3400mm Roller Width, 6 Chambers, Gas-Heated, Pin and Clip Chain

Description

  1. Overview
    1. Roller width: 3400 mm
    2. Six chambers gas-heated
  2. Entry Section
    1. High entry with E+L guiders
    2. Beta padder of three cylinders with double impregnation tank, fully in stainless steel
    3. Mahlo weft straightener with optics at entry and exit
  3. Tenter Frame
    1. Babcock tenter frame with six chambers gas-heated for drying and thermosetting overfeeding

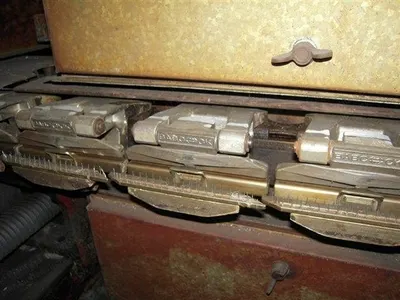

    2. Horizontal pin and clip chain
  4. Exit Section
    1. Exit by cooling zone
    2. Central cutter
    3. Exit with roller
