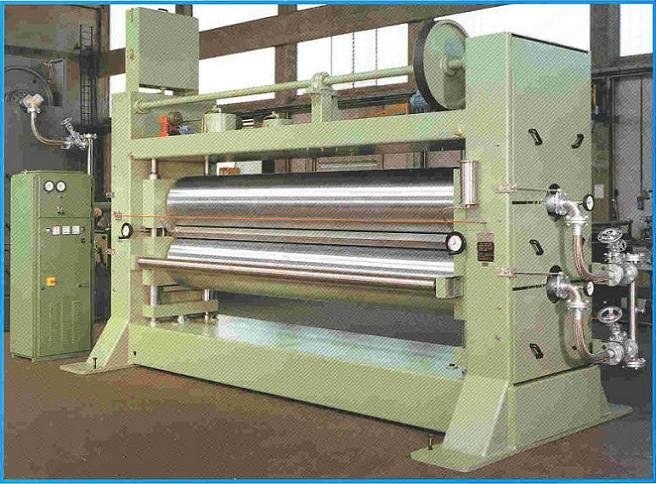

Beta, CPC S-2, 1999, Nonwoven Thermobonding Calender, 3600mm Working Width, 2 Cylinders, 600mm Diameter

Beta, CPC S-2, 1999, Nonwoven Thermobonding Calender, 3600mm Working Width, 2 Cylinders, 600mm Diameter

Description

  1. Overview
    1. Model: CPC S-2
    2. Year: 1999 (the machine was almost not used)
    3. Working width: 3600 mm
    4. With 2 cylinder diameter each 600 mm
  2. Specifications
    1. Maximum mechanic pressure: 80,000 kg
    2. Specific pressure: 222 kgf/linear centimeter
    3. Maximum flexibility of 1 cylinder under pressure 80,000 kg: 0.01 mm
    4. Working speed: 50 m/min
    5. Maximum working temperature: 250 degrees C of the heating system
    6. Speed control unit with Mitsubishi inverters
    7. Unwinder with all the accumulator cylinders
  3. Included Components
    1. Inspection platform
    2. Infrared heating at the entrance (brand Krelus) to homogenize the product temperature at the entrance of the calender in order to homogenize the calendering effect
    3. Cooling air system at the exit of the calender (brand Unitech) with perforated cylinder with forced ventilation
    4. Winder system
    5. Diatherm thermal unit system with 2x Diatherm heater oil system (brand Therma) type DTV 600 174 kW by gas to control the temperature of heating very precisely
  4. Condition
    1. Almost new
    2. The machine is complete as follows
