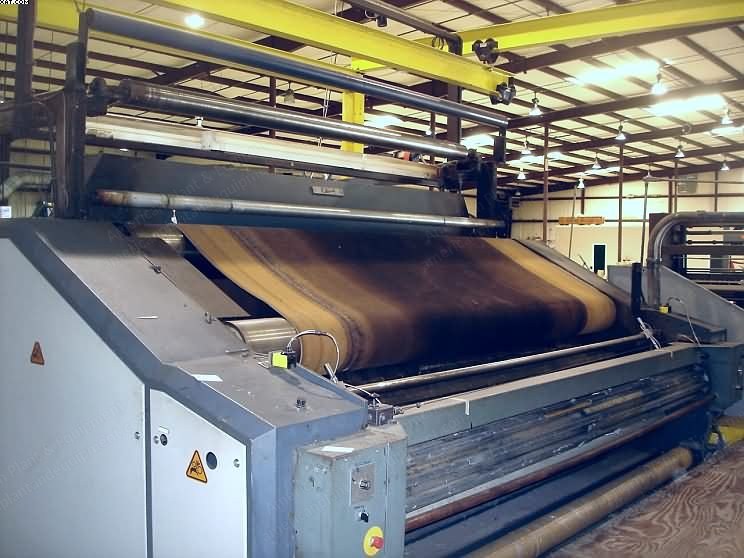

Klieverik, TC131, 1995, 126" Belt, 30" Drum Diameter, Vapor Phase Transfer Printing Calender

Klieverik, TC131, 1995, 126" Belt, 30" Drum Diameter, Vapor Phase Transfer Printing Calender

Description

  1. Overview
    1. Inventory number: G-1392
    2. Klieverik transfer printing calender
    3. 126" belt
    4. Year: 1995
    5. Model: TC131
    6. This machine employs a vapor phase process to transfer dyestuff from the paper to the cloth under the influence of heat and pressure.
    7. The calender drum is heated by electrical elements placed in an oil bath.
  2. Specifications
    1. 30" dia. x 138" face cylinder with 126" blanket (Nomex)
    2. Onboard enclosed heating system
    3. Operating speed of 2-20 mtr/min
    4. Dia. of transfer paper roll: 14"
    5. Machine speed: 2 to 20 mpm
    6. Max. drum temperature: 220 c (464 f)
    7. Dia. heated drum: 760mm (30.4")
    8. Blanket width: 3500mm (140")
    9. Oad of calender: 112.6" l x 182.4" w x 89" t
    10. Weight: 7400kg (16,314 lbs)
  3. Included Components
    1. Includes scray
    2. High entry with E&L KF-2040 guider
    3. Operator platform
    4. E&L width monitor
    5. 4-roll accumulator 136" with 12 yd capacity
    6. 2-roll surface take-up with edge guiding and yardage counters
    7. With operator's manual
    1. E-mail us for pictures
