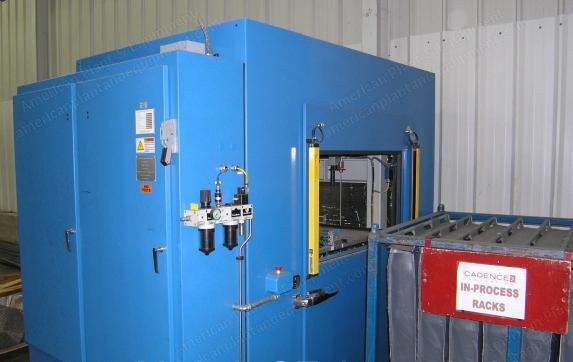

Branson, M-624L, 2006, 100 Hz, 25 kN Clamp Force, 480V

Branson, M-624L, 2006, 100 Hz, 25 kN Clamp Force, 480V

Description

  1. Overview
    1. 2006 model, but did not start operating until 2007
    2. Linear vibration welding
  2. Specifications
    1. Vibration frequency: 100 Hz (nominal)
    2. Vibration amplitude: 1.8 mm to 4.0 mm (peak-to-peak)
    3. Weld plane: 500 square centimeters
    4. Max clamp force: 25 kN

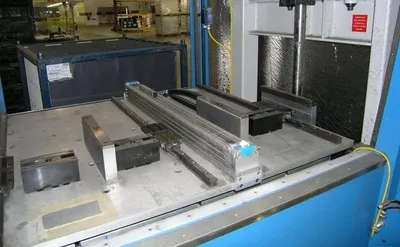

    5. Dimensions of lift table: 1330 mm w x 540 mm d
    6. Weight of upper tooling: 65 to 135 kg
    7. Control: PLC/VC 100
    8. Voltage: 480
  3. Condition
    1. Used industrial machine
  4. Included

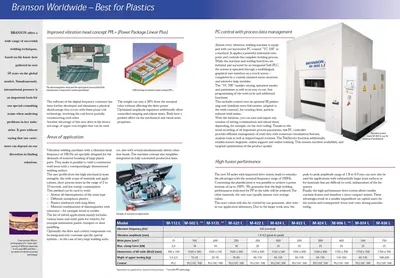

    1. Pictures and brochure available upon request
    1. Not specified
