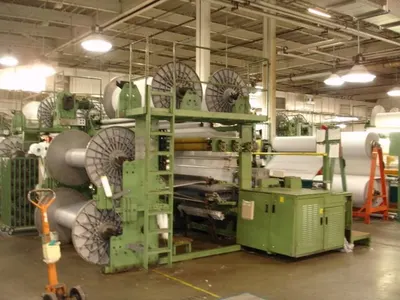

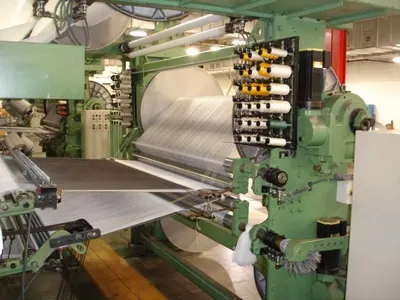

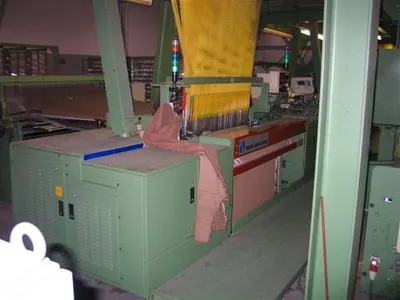

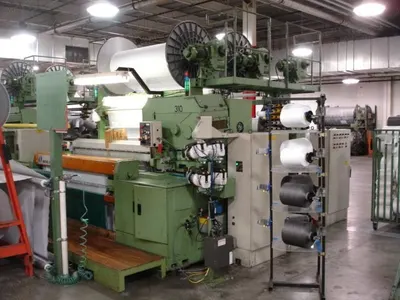

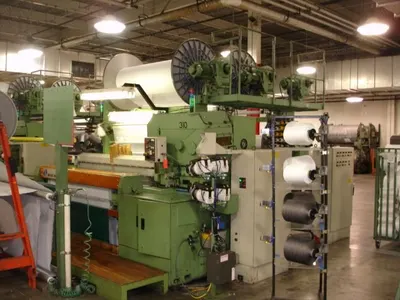

Van De Wiele, VMM22-175 / LPM32-175, 1998, Double Rapier Velvet Looms, 1750mm Width

Van De Wiele, VMM22-175 / LPM32-175, 1998, Double Rapier Velvet Looms, 1750mm Width

Description

  1. Overview

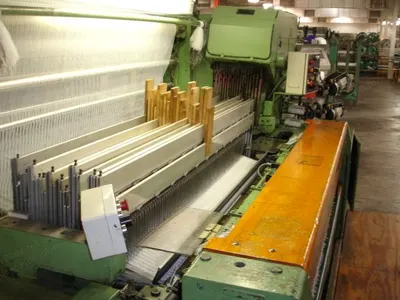

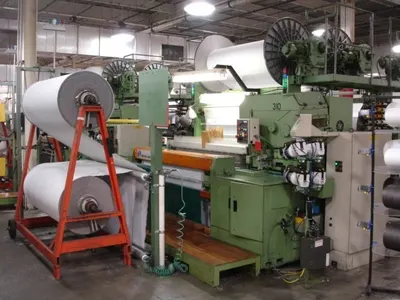

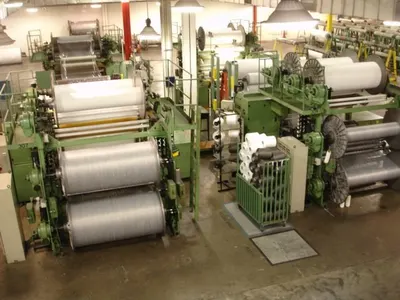

    1. Van de Wiele double rapier velvet looms
    2. Year: 1998
    3. Model: VMM22-175
    4. Width: 1750 mm
    5. Van de Wiele jacquard looms for loop pile velvet

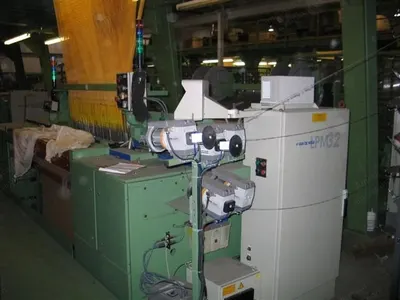

    6. Model: Loop Pile Master LPM32-175 - this is a double rapier velvet weaving machine for weaving upholstery and small area rugs (such as prayer) with loop pile
    7. The LPM32 weaves at an industrial speed 3 times greater than on a wire weaving machine
    8. Any type of natural or man-made yarns can be used, also heat-sensitive yarns: polypropylene, polyamide, acrylic, and cotton
  2. Specifications
    1. Basic machine controlled by 16-bit microprocessor to weave loop pile fabrics
    2. Pick regulator with change gears

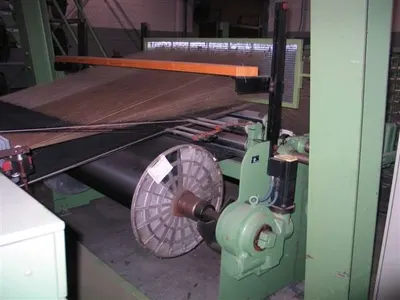

    3. Take-up of fabric on one roll of maximum 800 mm diameter

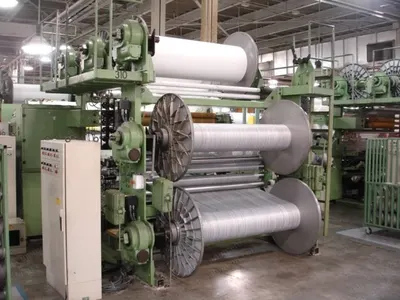

    4. Beam stand for two ground beams of maximum 1000 mm diameter with electrical let-off
    5. Electrical connection: 460 V, 3 phase, 60 Hz
    6. Pulleys for: 260-280 rpm
  3. Weaving Accessories Included
    1. Reed with 1120 pile dents/1460 mm + edges left and right

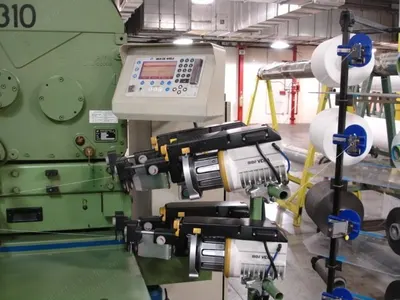

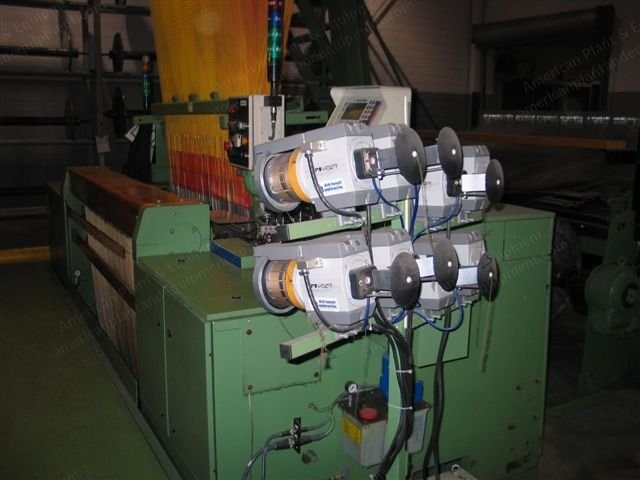

    2. Filling package supply stand with 5 prewinders (5 color weft)
    3. 1 pile stop motion with six electrodes and one ground stop motion with 8 electrodes, with 3400 pile droppers and 4600 ground droppers

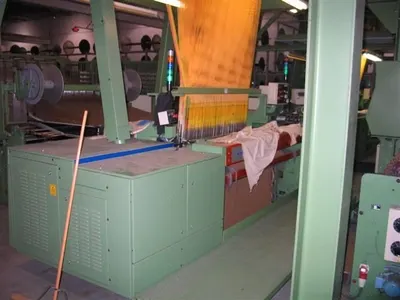

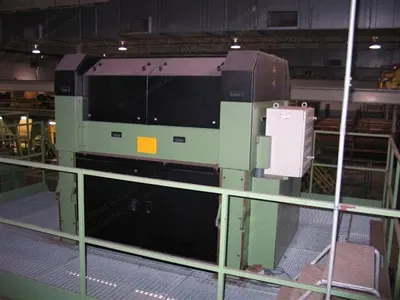

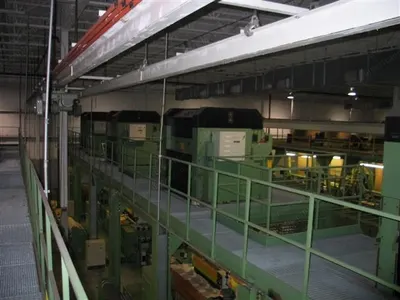

    4. Jacquard machine, including superstructure for: type Piletronic electrical jacquard in capacity of 2800 solenoids (2800 hooks)
    5. Used solenoids: 1680 in pile, 1120 in background
    6. Piletronic controller programmed by 3.5 inch Syquest disk of 270 Mbyte
    7. Harness of 7840 ends for 3 pile frames + 4 ground frames, 4 repetitions, in line

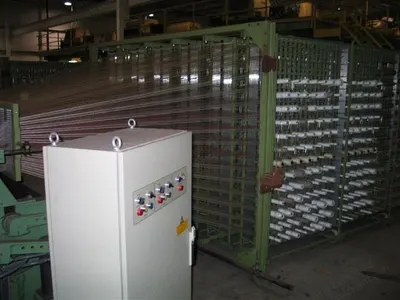

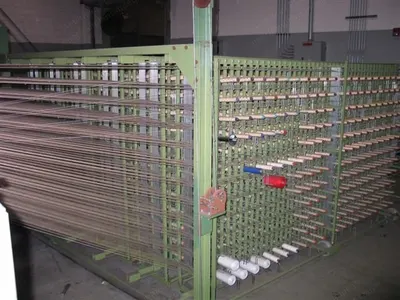

    8. Bobbin creel of 3780 spindles (2 x 6 x 15 x 21 in division 130 mm x 130 mm) for tubes of L 145 mm
    9. Including necessary creel weights of 2 x 50 gr/spindle (one open and one closed)
    10. Two edge spool holders with two edge spools 550 diameter
    11. Positive receiving rapier opening
    12. 2 x 4 filling sector
    13. Automatic pick-finding system

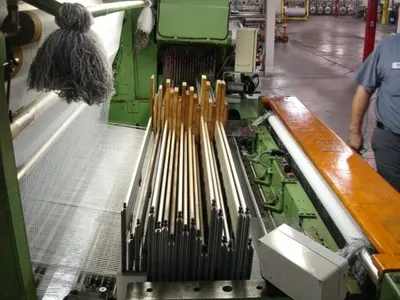

    14. Lancet holder with 11,500 lancets of 2 mm
  4. Additional Details
    1. 3 pile beam delivery
    2. 2 ground beam delivery

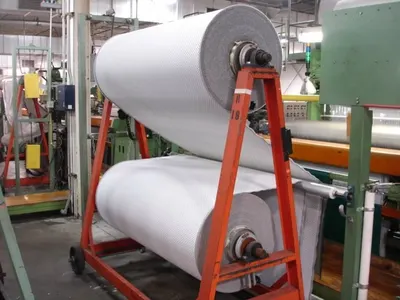

    3. 2 position off-loom cloth roll take-up
    4. 2 Roj accumulators
    5. Pictures available
