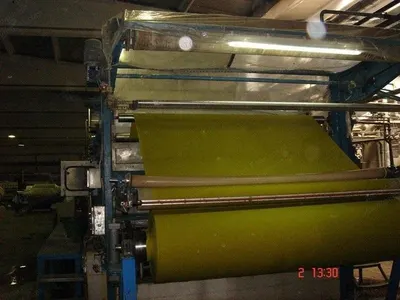

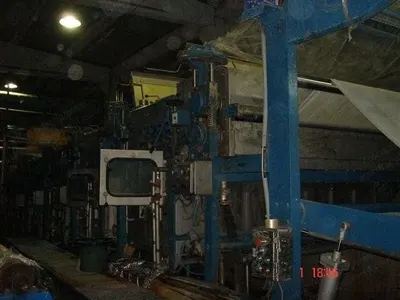

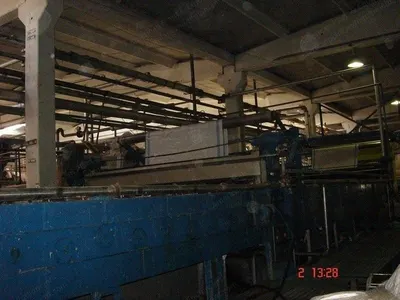

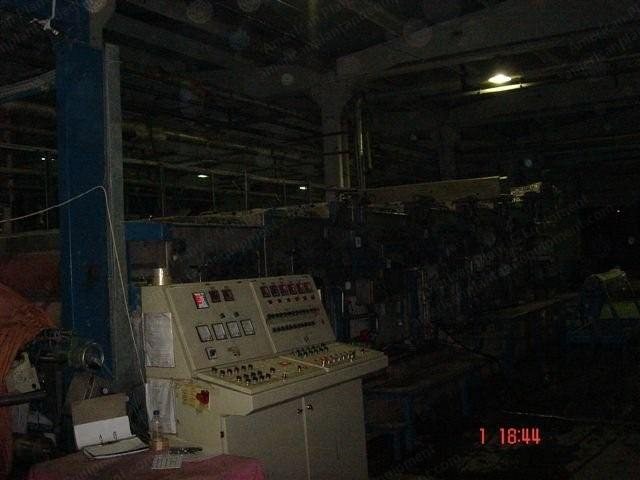

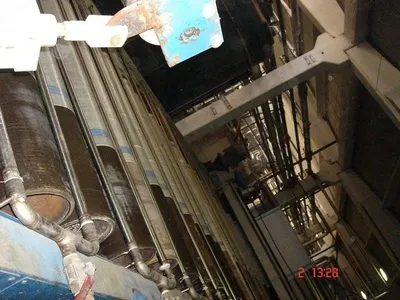

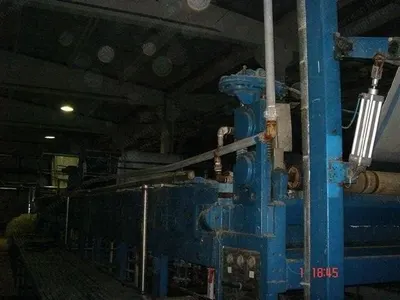

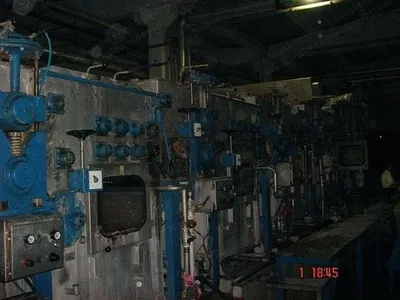

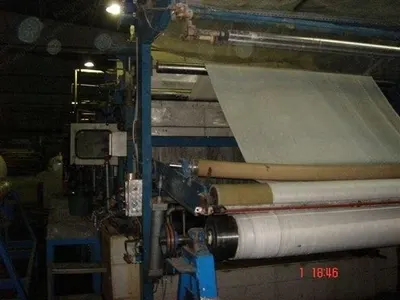

Goller, Optima-Effecta, 1997, 1800mm Working Width, 35 m/min, Wet-in-Wet Hot and Cold Process

Goller, Optima-Effecta, 1997, 1800mm Working Width, 35 m/min, Wet-in-Wet Hot and Cold Process

Description

  1. Overview
    1. Year: 1997
    2. Type: Optima-Effecta
    3. Process: Mercerizing; wet-in-wet hot and cold mercerizing process
    4. Working width: 1800 mm
    5. Production speed: 35 m/min at 25 sec mercerizing time
  2. Technical Details
    1. One set chainless mercerizing compartment, model Optima, with bottom rollers made of steel pipes with stainless steel covering and spiral grooves with stainless steel lateral disks, stainless steel tanks, stainless steel liquor pump
    2. Number of roller pairs: 8
    3. Cloth content: 14.6 m
    4. Impregnating time: 25 sec
    5. One set chainless stabilizing compartment, model Optima, with bottom rollers made of steel pipes with stainless steel covering, direct heating in the tanks and stainless steel distribution pipes
    6. Number of roller pairs: 12
    7. Number of stabilizing groups: 1
    8. Cloth content: 21.2 m
    9. Stabilization time: 36 sec
    10. One set automatic concentration regulator for strong caustic soda in the mercerizing compartment
    11. One set automatic concentration regulation for low concentrated caustic soda in the mercerizing compartment
    12. Two sets automatic temperature regulators
    13. One set high capacity open width washing machine, model Effecta, consisting of:
    14. 4 compartments, model WA/IV with vertical, single cloth guiding
    15. Cloth content in each compartment: 22 m
    16. Squeezing roller diameter: 250 mm
    17. Guide roller diameter: 180 mm
    18. Compensator roller diameter: 150 mm
  3. Additional Equipment
    1. Textima chainless mercerizer
    2. Year: 2000
    3. Maximum working width: 2400 mm
    4. Prewashing section
    5. Mercerizing and stabilizing sections
    6. Five wash boxes for final washing
    7. Big batcher plus plaiter at exit
