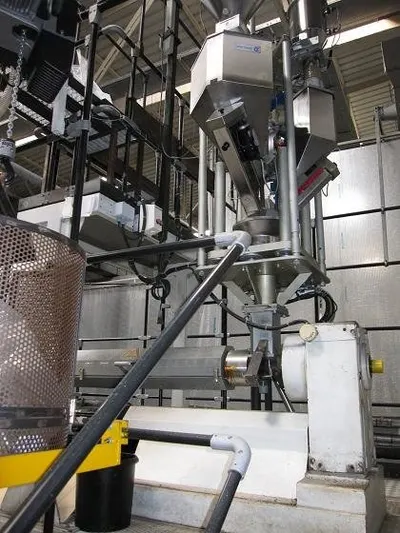

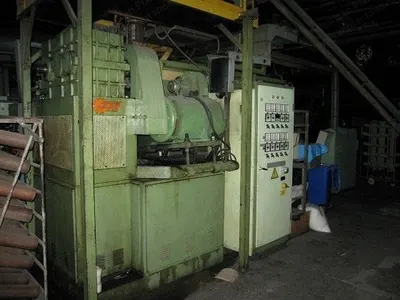

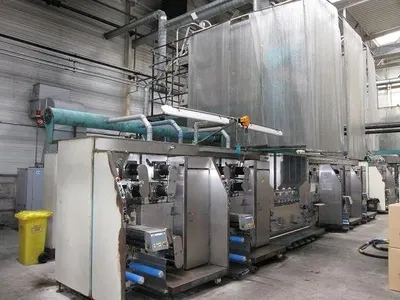

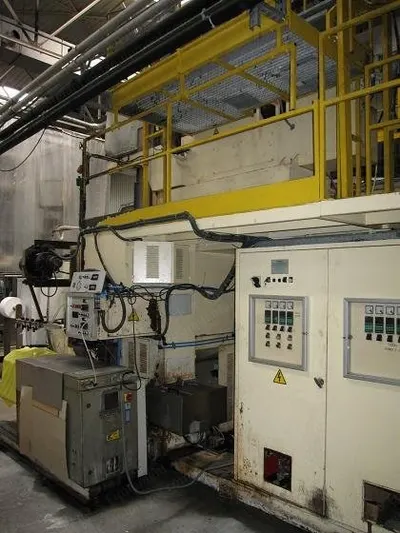

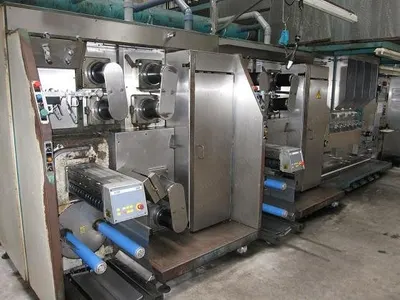

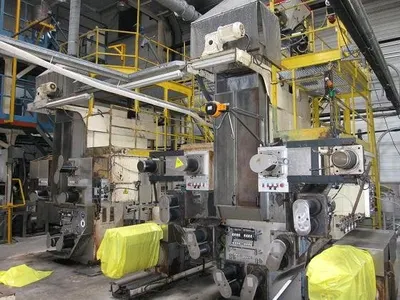

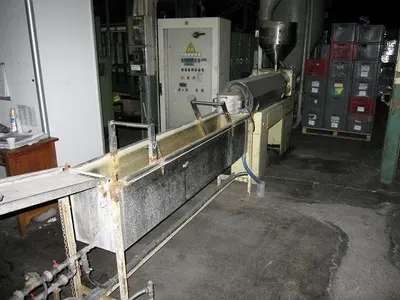

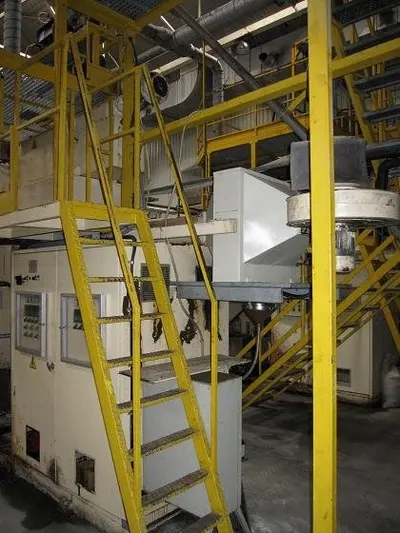

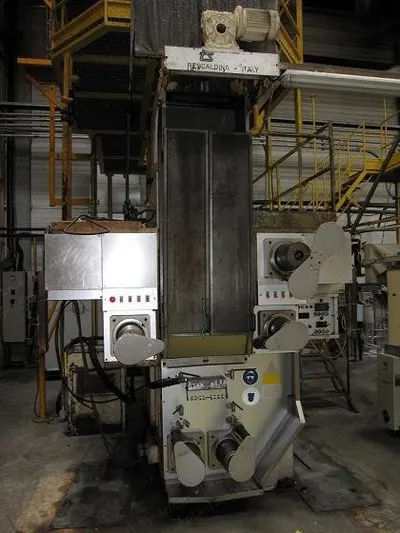

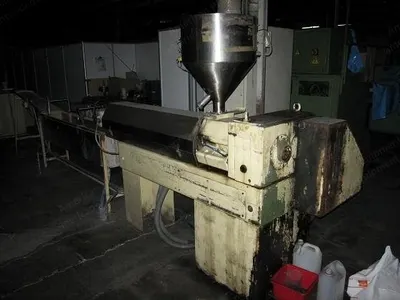

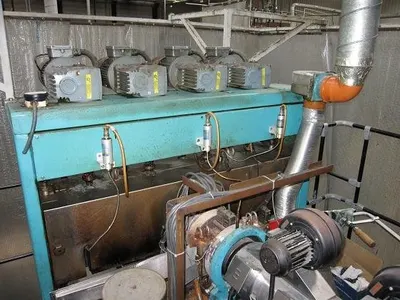

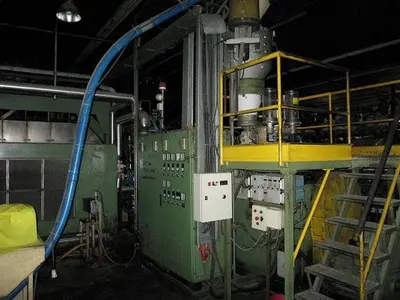

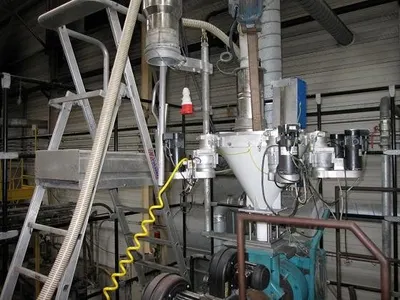

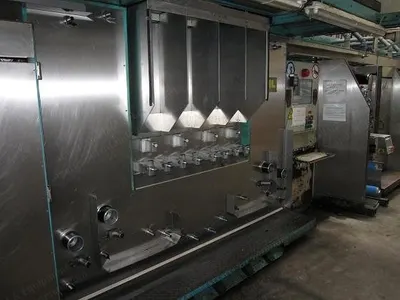

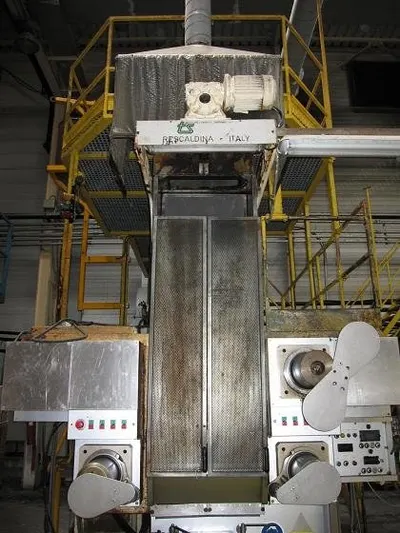

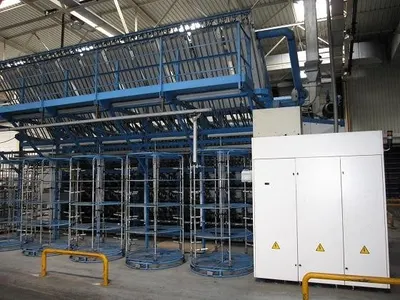

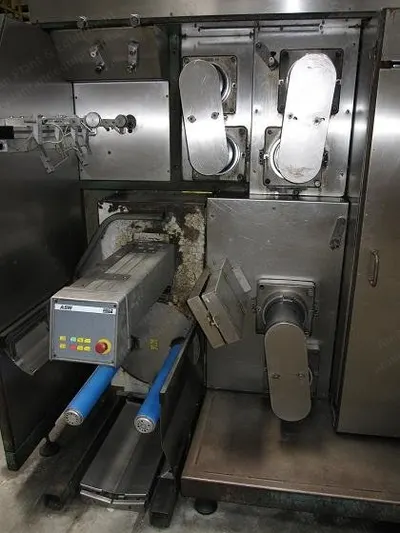

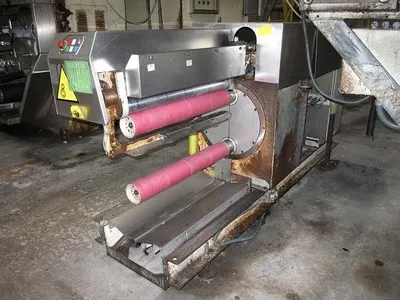

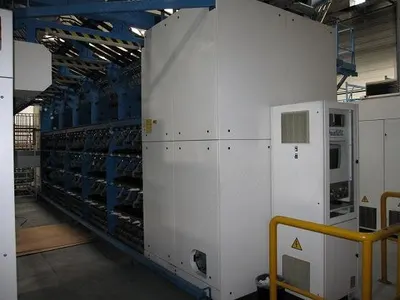

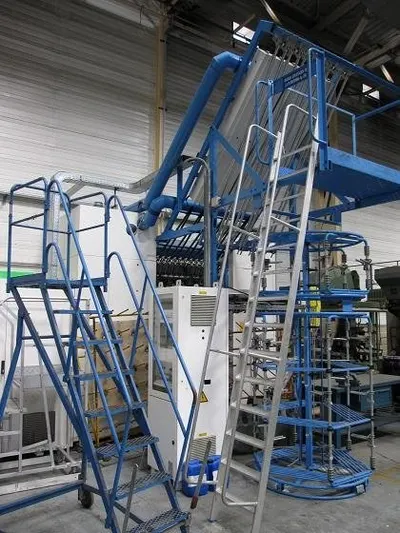

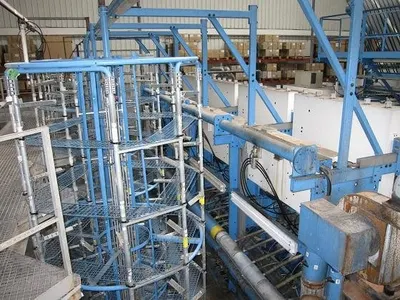

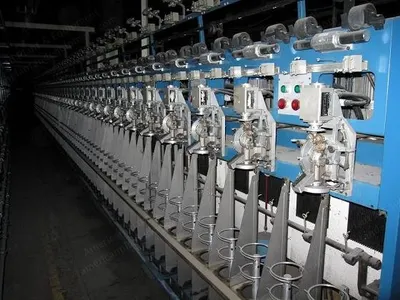

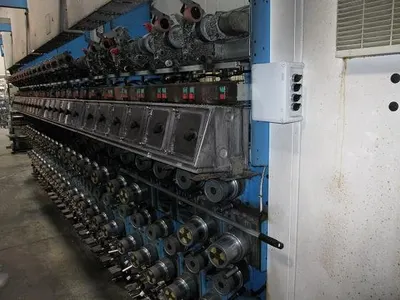

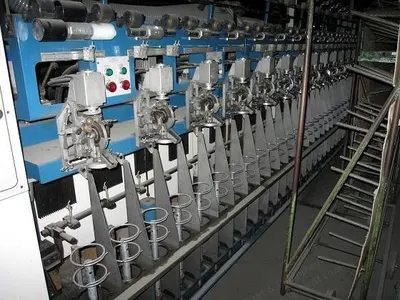

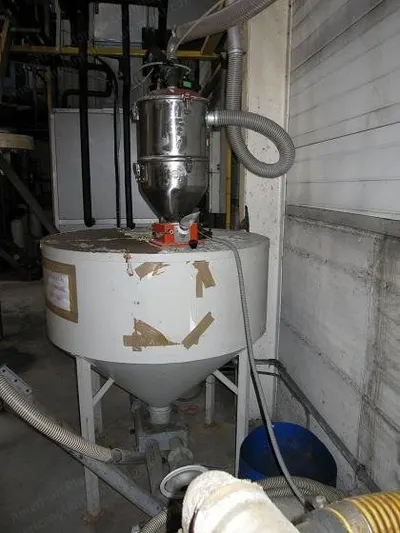

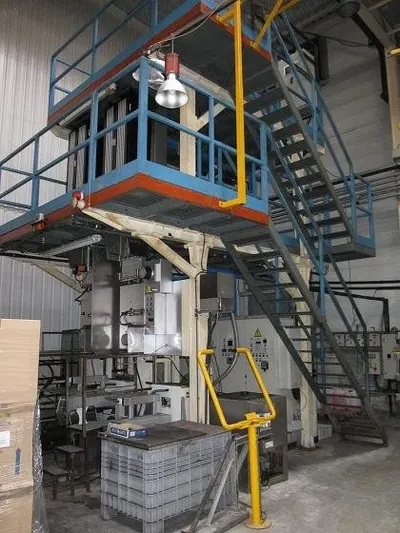

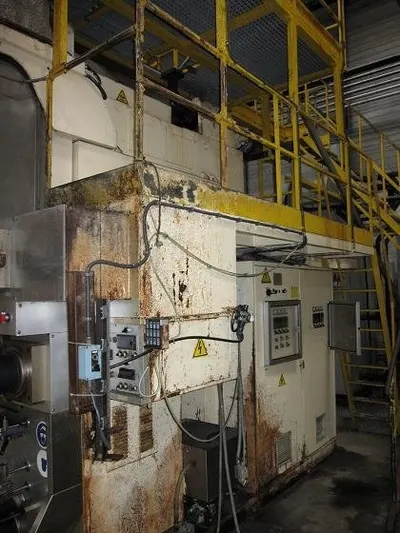

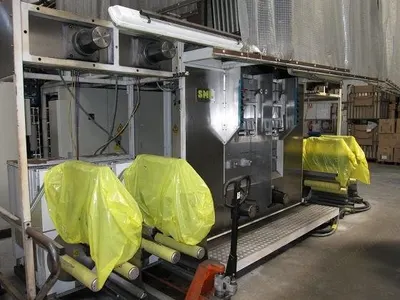

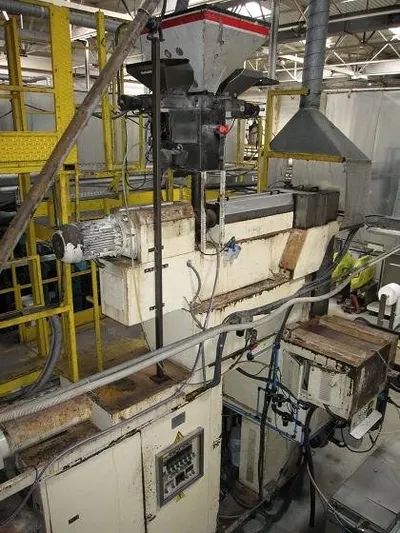

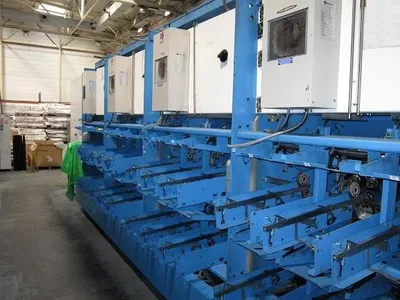

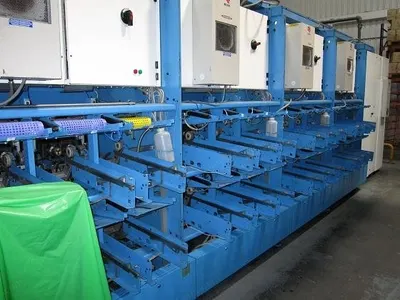

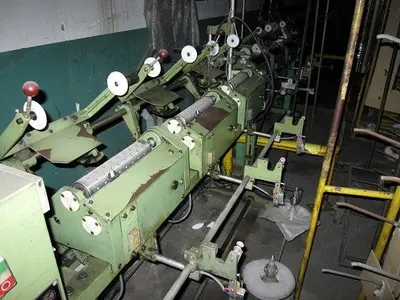

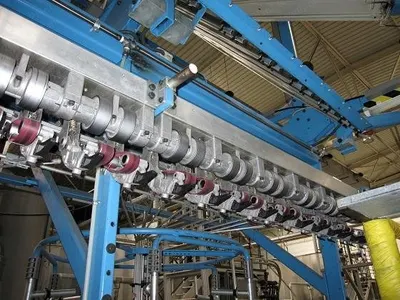

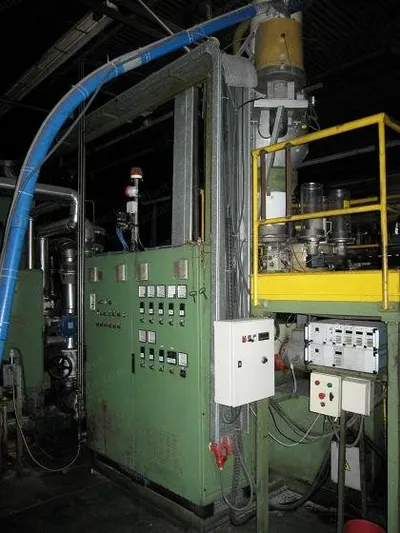

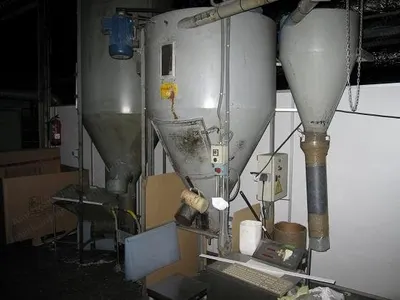

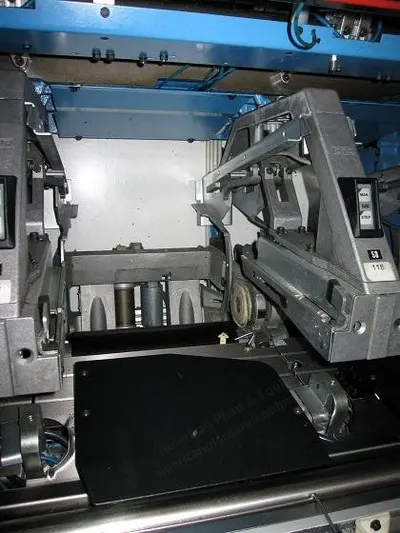

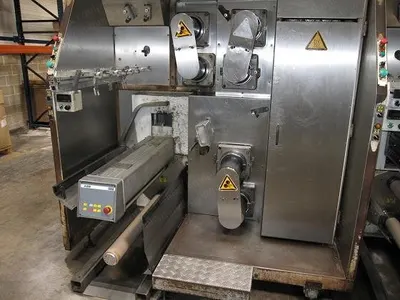

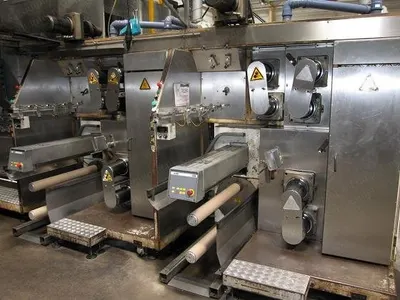

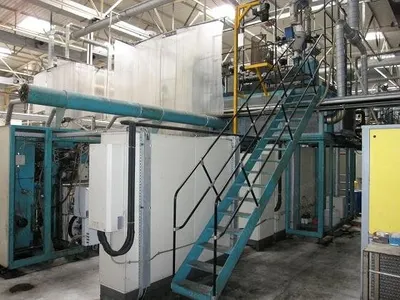

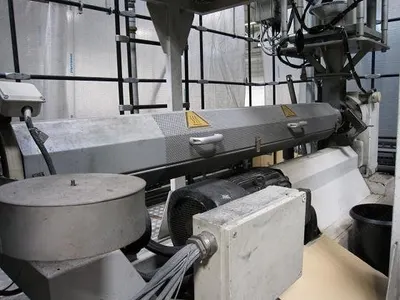

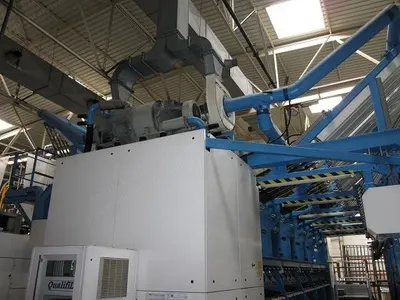

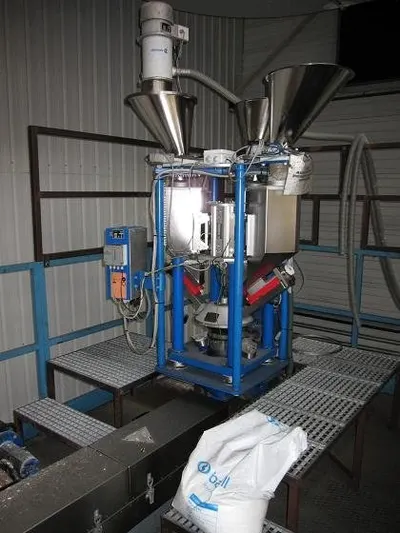

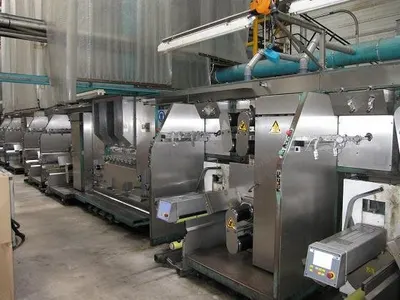

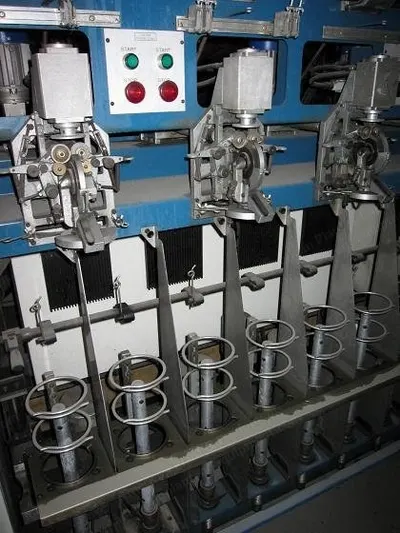

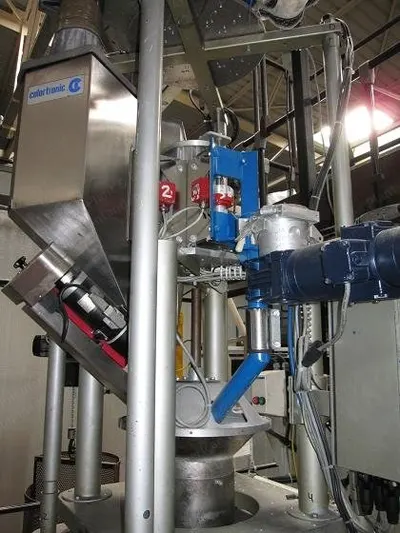

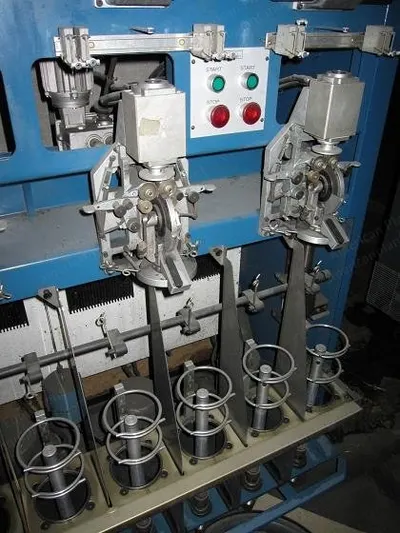

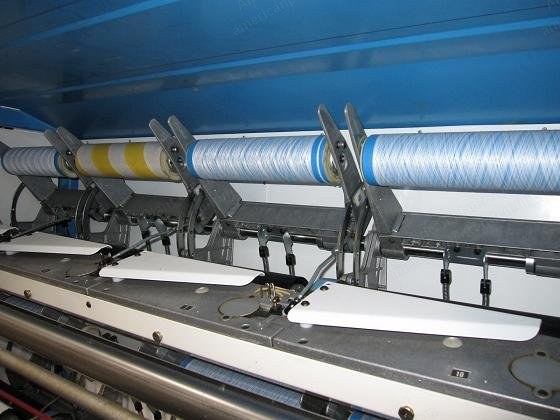

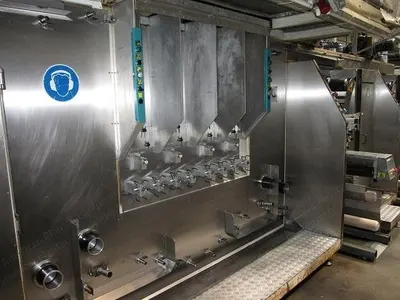

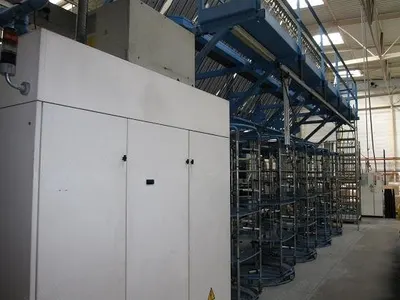

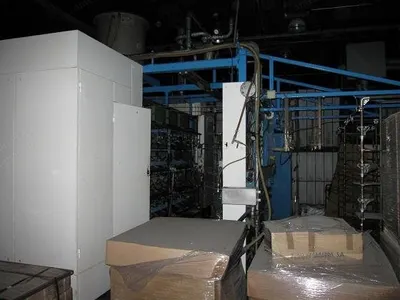

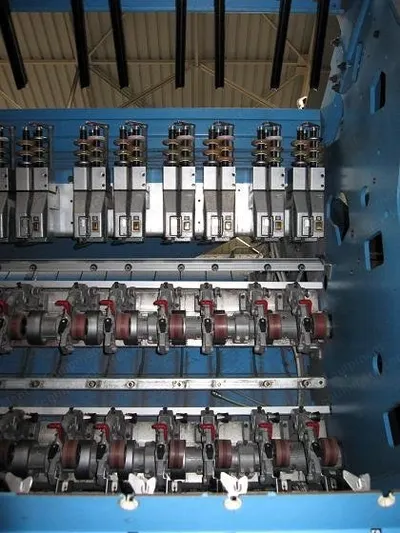

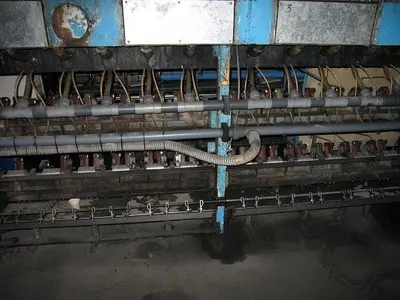

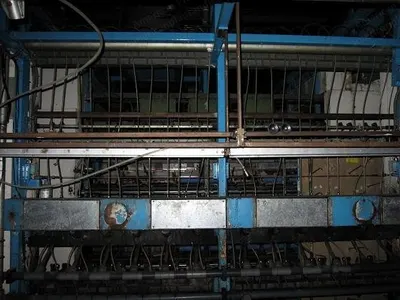

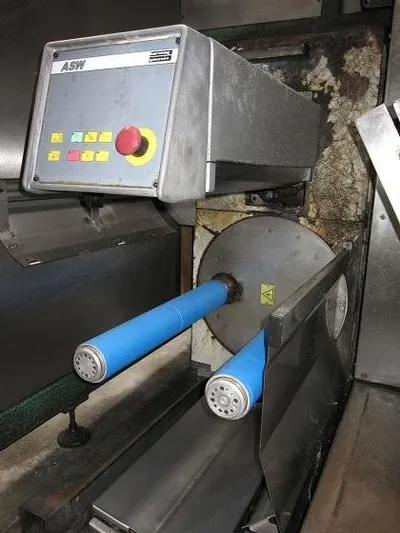

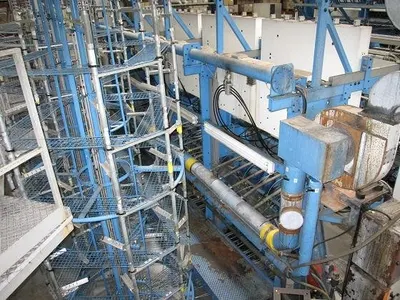

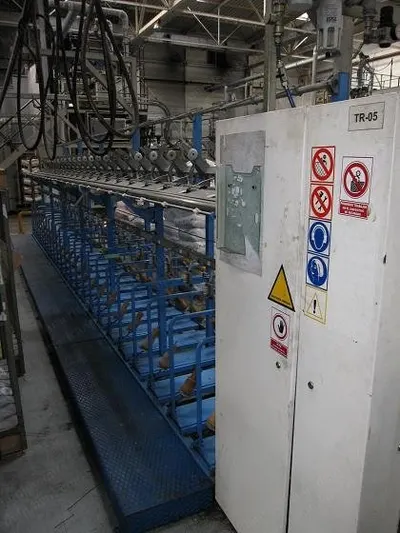

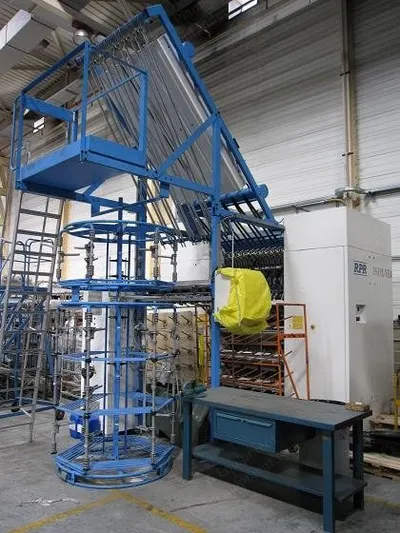

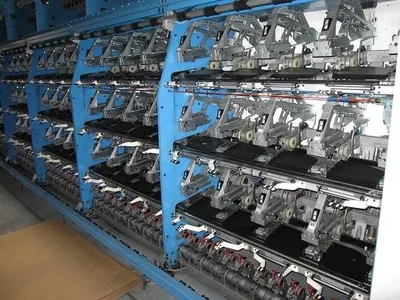

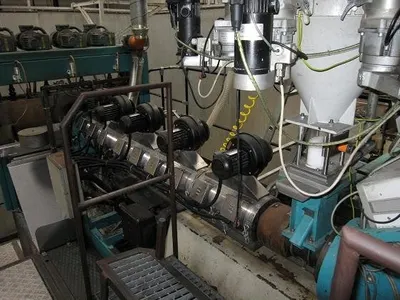

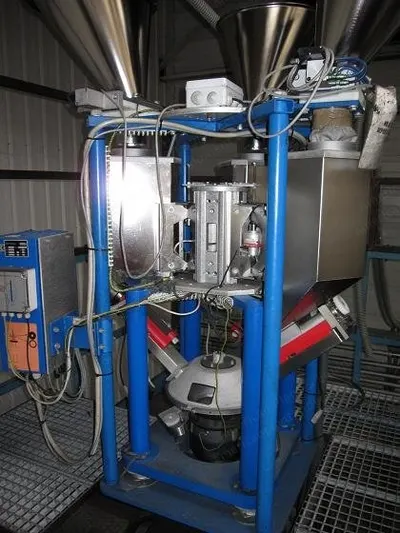

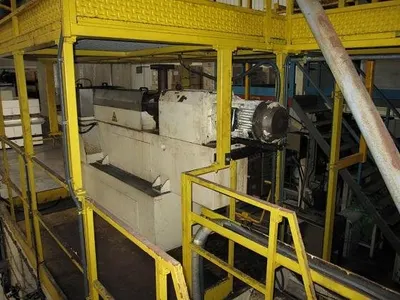

Description Vertical Extrusion Machines “Poy” F 12 extrusion line poly engineering Multifilament spinning plant designed for production of polypropylene multifilament, partially oriented yarn POY Year 2001 Single screw extruder 60mm diameter L/D ratio 30:1 Spinning head with 2 independent spinning pumps (4 spinnerets each) Gravimetric dosing system Colortronic “Graviblend” 3 components 2 automatic winders Barmag ASW 604 (cupboard 94x106x150mm) 2 x 4 = 8 ends Production range: POY between 50 and 600 DR F 14 Extrusion Line Sml Multifilament spinning plant designed for production of polypropylene multifilament, partially oriented yarn POY Year 2002 Single screw extruder 75mm diameter L/D ratio 30:1 Spinning head with 4 independent spinning pumps (2 spinnerets each) Gravimetric dosing system Colortronic “Graviblend” 3 components 4 automatic winders Barmag ASW 604 (cupboard 94x106x150mm) 4 x 4 = 16 ends Production range: POY between 50 and 600 DR Vertical Extrusion Machines “Foy” F 11 extrusion line SML HT8 Multifilament spinning plant designed for production of polypropylene multifilament, fully oriented yarn FOY Year 2000 Single screw extruder 75mm diameter L/D ratio 30:1 Spinning head with 4 independent spinning pumps (2 spinnerets each) Volumetric dosing system Colortronic “Syncroblend” 5 components 4 automatic winders Barmag ASW 602 (cupboard 75x87x300mm) 4 x 2 = 8 ends Production range: low, medium or high tenacity FOY between 300 and 3,000 DR Best productivity 133 kg/h with yarn count > 1,000 DR F 13 Extrusion Line Sml Ht8 Multifilament spinning plant designed for production of polypropylene multifilament, fully oriented yarn FOY Year 2001 Single screw extruder 75mm diameter L/D ratio 30:1 Spinning head with 4 independent spinning pumps (2 spinnerets each) Volumetric dosing system Colortronic “Syncroblend” 5 components 4 automatic winders Barmag ASW 602 (cupboard 75x85x290mm) 4 x 2 = 8 ends Production range: low, medium or high tenacity FOY between 300 and 4,000 DR Best productivity 133 kg/h with yarn count > 1,000 DR F 15 Extrusion Line Sml Ht8 Multifilament spinning plant designed for production of polypropylene multifilament, fully oriented yarn FOY Year 2002 Single screw extruder 75mm diameter L/D ratio 30:1 Spinning head with 4 independent spinning pumps (2 spinnerets each) Volumetric dosing system Colortronic “Syncroblend” 5 components 4 automatic winders Barmag ASW 624 (cupboard 94x106x230mm) 4 x 4 = 16 ends Production range: low, medium or high tenacity FOY between 150 and 2,000 DR Best productivity 133 kg/h with yarn count 500 DR and > 1,000 DR F 16 Extrusion Line Sml Ht8 Multifilament spinning plant designed for production of polypropylene multifilament, fully oriented yarn FOY Year 2003 Single screw extruder 75mm diameter L/D ratio 30:1 Spinning head with 4 independent spinning pumps (2 spinnerets each) Volumetric dosing system Colortronic “Syncroblend” 5 components 4 automatic winders Barmag ASW 624 (cupboard 94x106x230mm) 4 x 4 = 16 ends Production range: low, medium or high tenacity FOY between 150 and 2,000 DR Best productivity 133 kg/h with yarn count 500 DR and > 1,000 DR Horizontal Extrusion Machines “Foy” F 5 extrusion line Fare Multifilament spinning plant designed for production of polypropylene multifilament, fully oriented yarn FOY Year 1982 Single screw extruder 90mm diameter Production capacity in high tenacity 2,000 DR: 125 kg/h Spinning head with 8 independent spinning pumps (40 ends of 2,000 DR) Volumetric dosing system 3 components Manual winders Sahm “Bandomat 260” (cupboard 94 x 103 x 290mm) Best productivity in flat natural high tenacity between 2,000 and 5,000 DR F 8 Extrusion Line Fare Multifilament spinning plant designed for production of polypropylene multifilament, fully oriented yarn FOY Year 1995 Single screw extruder 100mm diameter L/D ratio 35:1 Production capacity in high tenacity 1,000 and 2,000 DR: 160 kg/h Spinning head with 8 independent spinning pumps with 8 outlets each (128 ends in 1,000 DR, 64 ends in 2,000 DR) Volumetric dosing system 5 components Cops winding machine 136 positions Fare (90 x 110 x 550mm) Best productivity in flat yarn to twist, natural or colours, low, medium or high tenacity between 840 and 5,000 DR F 10 Compounding Line Barmag Compound plant designed for production of polypropylene master batch Year 1995 Single screw extruder Barmag 60mm diameter Cooling tray Conveyer shot Cutter Production capacity 60 kg/h Can be used to produce compounds of several colours and/or additives Twisting Machines: Two-For-One Twisters T 8 two-for-one twister RPR GC72D4N Year 1995 60 spindle 260mm Range 300 – 5,000 DR Yarn speed: max 135 m/min Traverse length 250mm Tube 69 x 75 x 290mm T 9 Two-For-One Twister Rpr Gc72D4n Year 1995 60 spindle 260mm Range 300 – 5,000 DR Yarn speed: max 135 m/min Traverse length 250mm Tube 69 x 75 x 290mm T 14 Two-For-One Twister Rpr Gc72d Year 1996 90 spindle 260mm Range 210 – 1,200 DR Yarn speed: max 135 m/min Traverse length 250mm Tube 69 x 75 x 290mm T 15 Two-For-One Twister Rpr Gc72d Year 1996 90 spindle 260mm Range 210 – 1,200 DR Yarn speed: max 135 m/min Traverse length 250mm Tube 69 x 75 x 290mm T 16 Two-For-One Twister Rpr Gc72d Year 2001 90 spindle 190mm Range 300 – 2,000 DR Yarn speed: max 135 m/min Traverse length 250mm Tube 69 x 75 x 290mm T 17 Two-For-One Twister Rpr Gc72d Year 2002 72 spindle 260mm Range 210 – 1,200 DR Yarn speed: max 135 m/min Traverse length 250mm Tube 69 x 75 x 290mm T 18 Two-For-One Twister Rpr Gc72d Year 2002 72 spindle 260mm Range 210 – 1,200 DR Yarn speed: max 135 m/min Traverse length 250mm Tube 69 x 75 x 290mm T 19 Two-For-One Twister Rpr Gc72d4 Year 2003 48 spindle 260mm Range 300 – 3,000 DR Yarn speed: max 135 m/min Traverse length 250mm Tube 69 x 75 x 290mm Texturing Machines TX2 air texturizing RPR Year 1986 48 positions Manual doffing (cupboard 69 x 75 x 290mm) Single feeding yarn with PP FOY Production of air textured PP between 600 and 2,400 DR Tx4 Air Texturizing Rpr 3sd 2000/4g Year 2002 24 positions Automatic doffing (cupboard 69 x 75 x 290mm) Individual set heater for each position Core and effect feeding with PP – PA – PES from POY or FOY Heated godets to draw POY Production of air textured PP between 600 and 2,400 DR
