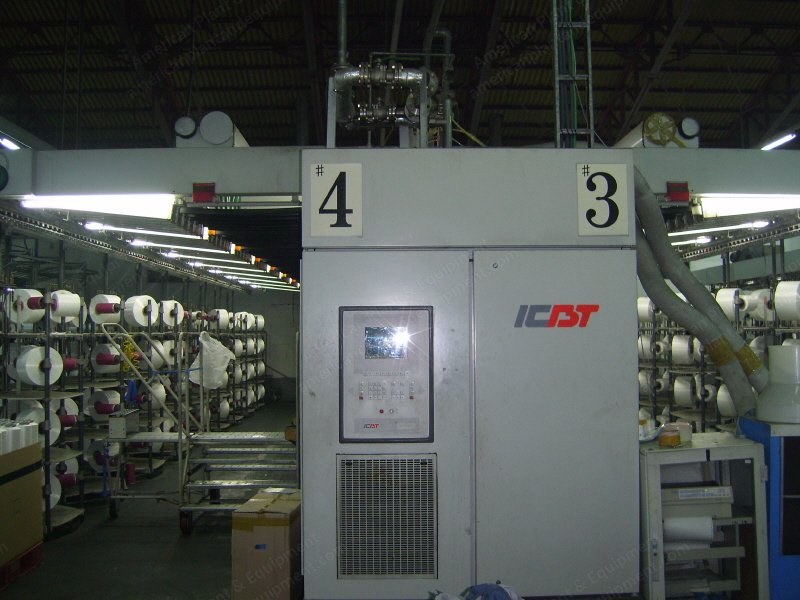

ICBT, FTF 15 E3 HT, 2000, 216 Positions, Single Heater, Auto Doffing

ICBT, FTF 15 E3 HT, 2000, 216 Positions, Single Heater, Auto Doffing

Description

  1. Overview
    1. ICBT: FTF 15 E3 HT
    2. Year: 2000
    3. No. of Position: 216 all “S” or “Z”
    4. Intermingling
    5. Yarn Oiler
    6. One Heater System
    7. Machine used to produce polypropylene
    8. Stopped 2 months ago
  2. Specifications
    1. Tube Length: 290mm x 69mm
    2. All shaft motorized spindle and 2 independent sides driven
    3. Friction Spindle: 9mm(T) x 52mm diameter

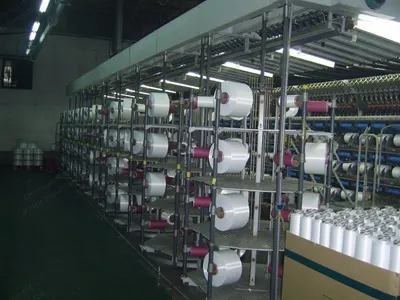

    4. Creel: 2 x 216
    5. Standard Main Voltage: 440V/60Hz (present 380V/60Hz-down and using)
    6. Installed kW: 118.9kW (normal consumption is about 100~110kW)
    7. Nozzle: SM104 TC Type (dia 1.4) open type
    8. Temperature: from 200 to 600 deg.
  3. Dimensions
    1. Width: 9,500(4,250x2)+space (working)
    2. Length: 16,700 + space (20~21meters required)
    3. Height: 3.0~3.5 meters
  4. Condition
    1. Mill floor condition
    2. Auto doffing system
