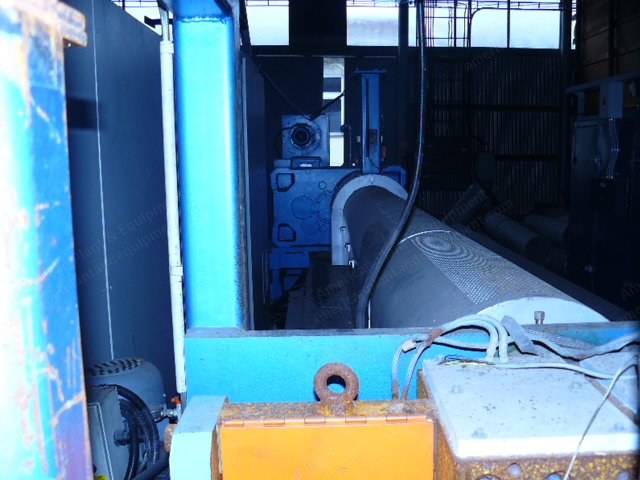

ESL, Polypropylene Fiber Spinning Line, 1996, 600 kg/h, 8 Spinnerets, 8 to 70 dtex

ESL, Polypropylene Fiber Spinning Line, 1996, 600 kg/h, 8 Spinnerets, 8 to 70 dtex

Description

  1. Overview
    1. Maximum capacity approximately 600 kg/h
    2. Line is approximately 65,000 mm long and has 8 spinnerets
    3. Existing spinnerets are suitable for fibers 8 dtex to 70 dtex
    4. Further blanks for spinnerets are available and can be designed according to request (at a specialized factory)
    5. The blanks are paid already, only the drillings for the wholes need to be paid extra
    6. Line control by touch screen
    7. The polymer pipes are dephueyl-heated
    8. The line is dismantled

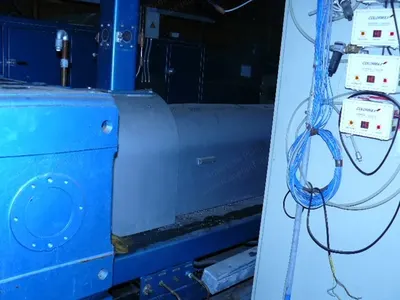

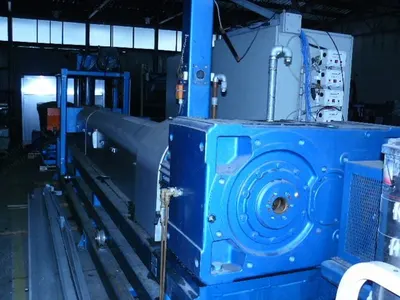

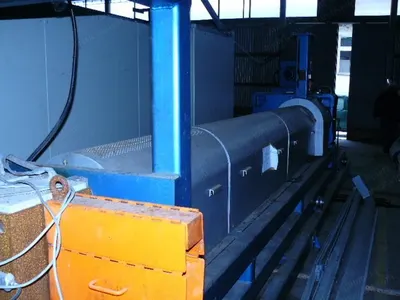

  2. Extruder
    1. Designed and manufactured by ESL England, originally built 1996
    2. 150 mm diameter 30:1 L/D ratio extruder screw
    3. Barrel is heated in 8 zones: zones 1 to 7 have 12 kW heaters, zone 8 is 14 kW
    4. Cooling blowers at zone 7 and 8

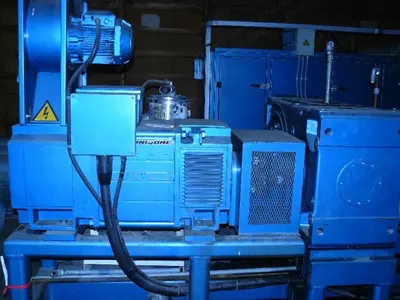

    5. Extruder drive is 313.6 kW @ 1830 rpm, type LAK 4250A Thrige-Scott
    6. Gearbox: Rossimotriduttory, type MR2L-320
    7. Length (heated): 4500 mm
    8. Diameter: 220 mm
    9. Spinning plates: 660 x 110 mm
  3. Specifications
    1. Installed power is 624.5 kW (heaters) and 546 kW (drivers)
    2. Consumed power is generally 60% of installed power
    3. Compressed air consumption is 2 cubic metres per hour at 7 bar pressure
    4. Water consumption is 0.5 cubic metres per hour at 5 bar pressure
    5. Floor should have 3 tonnes per square metre load bearing capacity
    6. These figures are as the machine was originally built and do not take into account any modification
  4. Godets
    1. 1st and 2nd godet: 2 x septett (7 rollers)
    2. Diameter of rollers: 320 mm
  5. Color Injection
    1. 4 components
    2. Manufacturer: Woywood Plasticolor
    3. Plasticolor 3200 with 4 dosage screws (1 x granulate + 3 entries for additives)
  6. Control
    1. PC control with touch screen
    2. Manufacturer: ESL
  7. Crimper
    1. Manufacturer: ESL
  8. Cutter
    1. Manufacturer: Fleissner
    2. 2 cutting wheels available (cutting lengths 60 mm, 90 mm or 120 mm possible)
  9. Bale Press
    1. Manufacturer: Kenn Mills Eng. Ltd.
    2. Twin press T 60
  10. Stretching Ovens
    1. 3 stretching ovens behind each other
    2. Total length 5000 x 750 mm
  11. Spinnerets
    1. 26 pieces: outside dimension 110 x 660 mm, with each 1000 holes - hole diameter 2 mm for fiber 70 dtx and 110 dtx, profile "Pakman"
    2. 37 pieces: outside dimension 1110 x 660 mm, with each 6950 holes - hole diameter 0.75 mm for fiber 17 dtx and 30 dtx, profile "Pakman"
    3. 22 pieces: pre jet plates (for filter material) outside dimension 110 x 660 mm, with each 1700 hole - hole diameter 3 mm, profile "round"
    4. Further 30 pieces are without holes (as mentioned above)
  12. Laboratory Equipment
    1. 1 Textecho Fafegraph M
    2. 1 Textecho Vibromat M
    3. 1 measuring device Zweigle S 160
    4. 1 screen NSC-Multisyne 2 A
    5. 1 microscope zoom
    6. 1 measuring unit for measuring bagginess
    7. 1 laboratory card = table carding machine for manual use
    8. 1 micro scale Precisa
  13. Cooling Compressor
    1. Climaveneta, consisting of 2 x 2-cylinder machine
    2. Because of over capacity only one 2-cylinder-compressor was used
    3. The second one was not used because of over capacity
  14. Included
    1. Jet cleaning device (pyrolysis)
    2. Laboratory equipment
    3. Bale press
    4. One cooling compressor available
