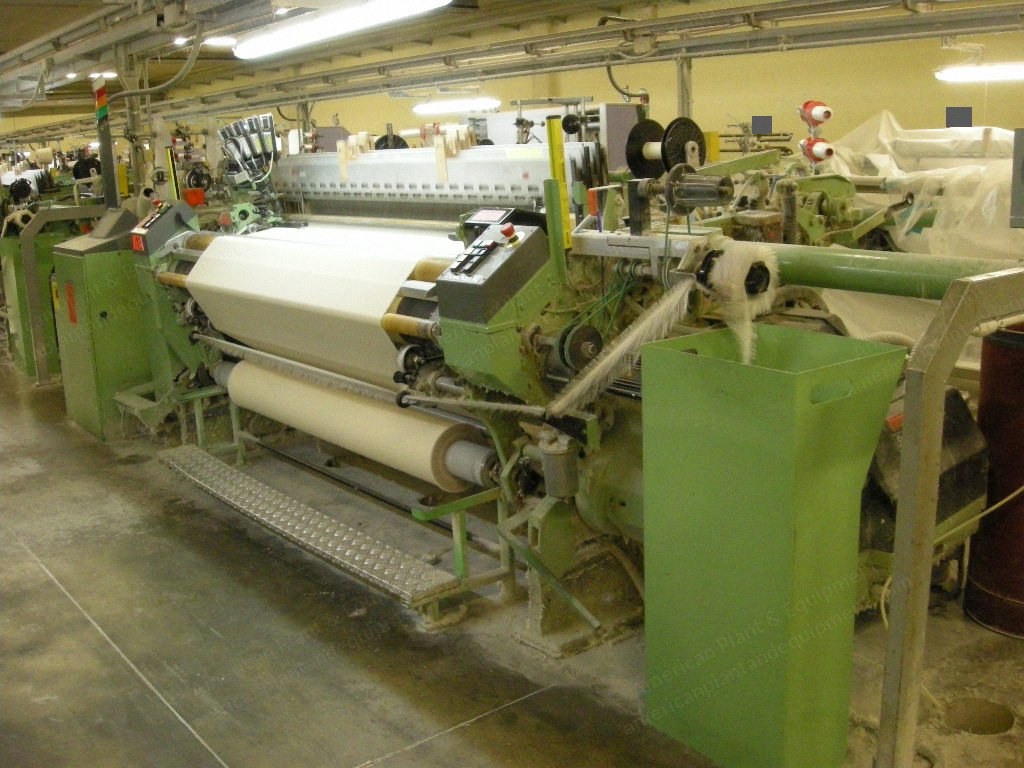

Dornier, HTVS, 1999/2000, 2100mm Working Width, 8 Colors, Staubli 2670 Electronic Dobby

Dornier, HTVS, 1999/2000, 2100mm Working Width, 8 Colors, Staubli 2670 Electronic Dobby Sold

Description

  1. Overview
    1. Type: HTVS 8/S 20
    2. Working width: 2100 mm
    3. 8 colors

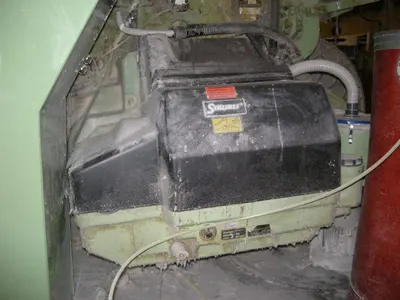

    4. Staubli 2670 electronic dobby
    5. 20 shafts
    6. Dialog panel II with VGA display
  2. Feeding and Weft Control
    1. Feeding with single beam device
    2. Eltex ASP electronic weft control
    3. Warp let-off modul device EWL
    4. Take-up modul ECT
    5. 4 Roj Vega weft feeders
  3. Heald Frames and Beams
    1. 12 heald frames
    2. 1.5 beams with 1000 mm flanges
    3. 1.5 cloth rollers
    4. 7000 drop wires (each loom)
    5. 7000 heald wires (each loom)
  4. Warp Control and Selvedge
    1. Warp control Grob type KFW 1600
    2. 2 looms with Motoleno selvedge device
  5. Accessories and Electrical
    1. Key card accessories
    2. Voltage: 380 V, 3-phase, 50 Hz
