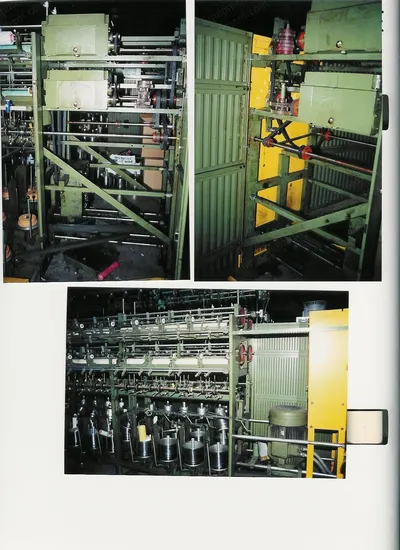

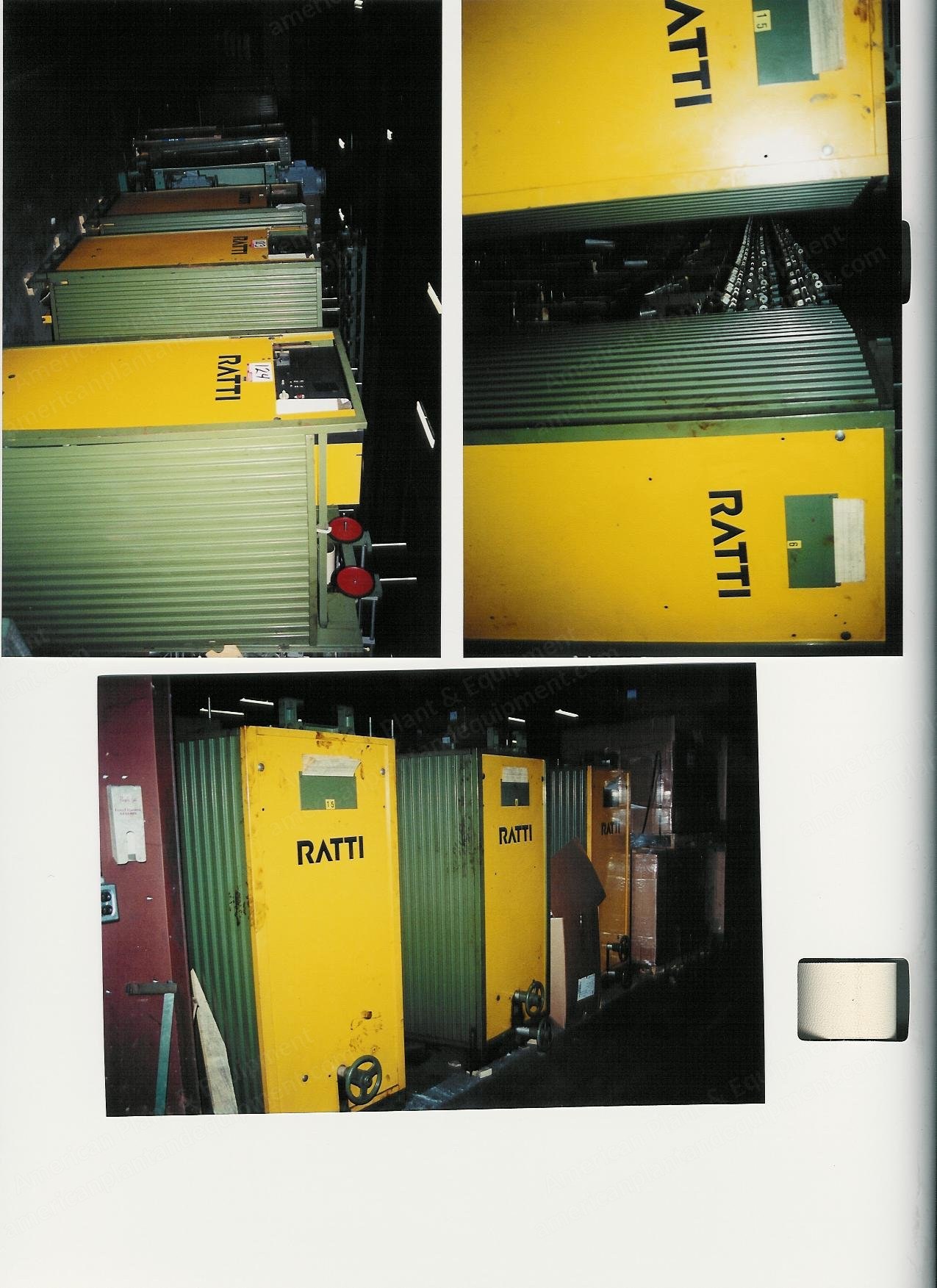

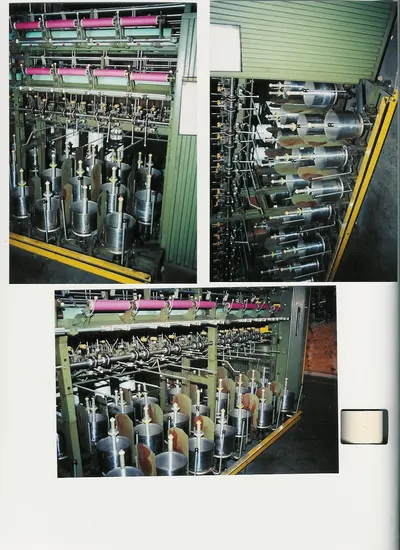

Ratti, R522-DT, Two-For-One Twisters, 144 Spindles, 200mm Pot Diameter, 30 HP

Ratti, R522-DT, Two-For-One Twisters, 144 Spindles, 200mm Pot Diameter, 30 HP

Description

  1. Overview
    1. Spindles: 144
    2. Pot diameter: 200 mm
    3. Supply package textured or flat yarn up to 190 mm diameter by 250 mm height
    4. Denier range: 30 to 600
    5. Twist range TPM: 96 to 3,980
    6. Spindle speed up to 12,000 rpm
  2. Specifications
    1. Individual spindle brakes
    2. Adjustable balloon control guides
    3. End break detector
    4. Overfeed to take-up
    5. Take-up tube length: 230 mm
    6. Traverse length of take-up: 200 mm
    7. Take-up package up to 250 mm diameter
    8. Motor: two speed, 30 hp (22 kW)
    9. Electrical: 460/380/3/60/50
  3. Condition
    1. In excellent condition on plant floor
    2. Immediate delivery
    1. USA
