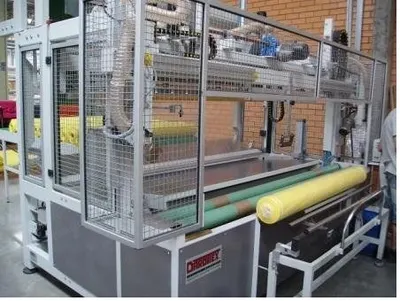

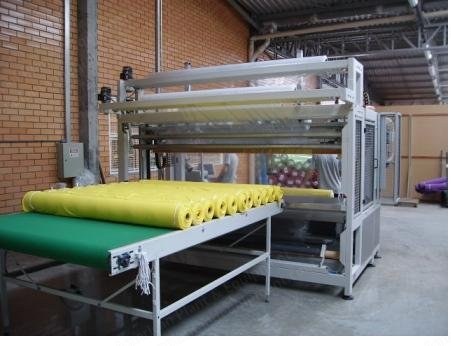

Compatta, Roll Wrapping Machine, 4200mm Welding Bar, 3600mm Max Roll Width, 5 HP

Compatta, Roll Wrapping Machine, 4200mm Welding Bar, 3600mm Max Roll Width, 5 HP

Description

  1. Overview
    1. In steel, with housing of a film reel, motorized unwinding film.
    2. Predisposed for possibly two extra devices of film reel.
    3. Basic modulus complete with following devices and accessories.
  2. Longitudinal Welding
    1. Longitudinal welding bar, hot welding by electrical resistance, with film-cut device incorporated.
    2. Precision mechanical device for perfect welding.
    3. Welding bars moved by pneumatic pistons.
    4. Temperature and welding time adjustable on the base of kind of film and programmable by PLC.
  3. Unwinding and Waste Recuperation
    1. Automatic unwinding film reel, with movement by moto-reducer, controlled by dancing roller.
    2. Reel placed on the top of machine.
    3. Waste recuperation on the bottom of machine.
  4. Electrical Control
    1. Electrical control cabinet with programmer automatic cycle (PLC).
    2. Easy diagnostic default visualizator.
    3. Automatic cycle with specific software, programmable based on customer’s needs.
    4. Auto-diagnostic screen with serial for reprogramming at distance (optional).
  5. Entry
    1. Frontal entry by sliding the roll itself with pusher to move the roll in the welding position.
  6. To Complete Longitudinal Welding
    1. Roll exit level after longitudinal sealing, with automatic level lower for a welding adequate to every roll diameter and roll expulsion to the heads sealing section, or, alternatively, direct exit on pallet in case of heads sealing lack.
  7. Heads Sealing and Product Evacuation
    1. Heads sealing device by hot blowing with double phon, complete with automatic device to approach phon to the heads depending on the roll width.
    2. Device complete with two motorized cylinders to put roll during blowing operations, temporized for every film demand.
    3. Complete also with pushing device to permit frontal exit of roll at the end of the processing cycle.
    4. Expulsion installed on phon system.
  8. Technical Data
    1. Length of welding bar: 4200 mm.
    2. Roll diameter: from 200 mm to 500 mm.
    3. Roll width: 3600 mm maximum (subject to roll diameter).
    4. Machine power: 5 HP.
    5. Longitudinal bar power: 2.5 kW.
    6. Phon power: 10 kW.
    7. Voltage: 380 V / 3 phase + N / 50 Hz.
    8. Film requested: any type of politene.
    9. Thickness of film: from 20 to 120 microns.
    10. Productivity: 1 - 2 rolls per minute (subject to roll diameter).
  9. Included Accessories
    1. Extra unrolling film reel-holder for storage of different sizes of plastic film.
    2. Transportation belt to introduce frontally the plate, 3000 mm length, synchronized with photocell detecting products.
    1. Europe.
