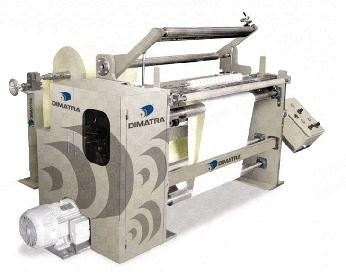

NovaStar, SR322, 1600mm Working Width, 100 m/min Max Speed, Slitter Rewinder

NovaStar, SR322, 1600mm Working Width, 100 m/min Max Speed, Slitter Rewinder

Description

  1. Overview
    1. Versatile machine for cutting and rewinding textile material to produce small rolls.
    2. Maximum productivity of 4 logs per minute.
    3. Includes high quality components for great productivity and performance.
  2. Key Features
    1. Air expandable shaft on the unwinder section (one piece included).
    2. Central driven unwinder with low weight dancer roll to control low tension on expandable textile fabric.
    3. Retractable chucks with pneumatic system to insert the shaft on unwinder.
    4. Bowed roll (one included).
    5. Longitudinal cutting: shear cut type (includes fourteen cutters).
    6. Peripheral winding system with rubber roll and steel roll.
    7. Winding shafts (three pieces included).
    8. Manual transfer of the rolls from winding position to doffing rolls.
    9. Rolls are automatically cut with rotary knife system.
    10. Automatic thread system.
    11. Control panel with Siemens PLC and HMI (human machine interface).
    12. Emergency stops.
    13. Safety guards.
    14. Motorized transmission system with AC motors.
  3. Technical Specifications
    1. Diameter of rolled wipes: 50-300 mm.
    2. Material: textile 60 to 200 gr/m².
    3. Maximum tension: 0.05 kg/cm.
    4. Maximum speed: 100 m/min.
    5. Maximum roll width: 1600 mm.
    6. Maximum weight of roll in unwinder section: 400 kg.
    7. Maximum roll diameter in unwinder section: 1200 mm.
    8. Internal diameter of cardboard center: 76 mm.
    9. Minimum width of slitted rolls: 100 mm.
    10. Diameter of center cores on winding section: 1.
  4. Productivity
    1. 100,000 rolls per day if producing only 4 in wide by 60 in long (101.6 mm in width by 1524 mm in length).
    2. 65,000 rolls per day if producing only 6 in wide by 60 in long (152.4 mm in width by 1524 mm in length).
    3. 43,000 rolls per day if producing only 4 in wide by 50 ft long (101.6 mm in width by 1524 cm in length).
    4. 28,000 rolls per day if producing only 6 in wide by 50 ft long (152.4 mm in width by 1524 cm in length).
  5. Utilities
    1. Electrical: 12 kW, 440 VAC, three phase.
    2. Pneumatic: 5 bars.
  6. Ducts and Wiring
    1. Ducts and wires running from utilities sources to the control panel and from the control panel to the machine will be at customer costs and must be done according to the instructions shown in our diagrams.
  7. Installation
    1. Machine installation and start up labor costs are included with 2 technicians (1 electrical and 1 mechanical) during 5 days.
