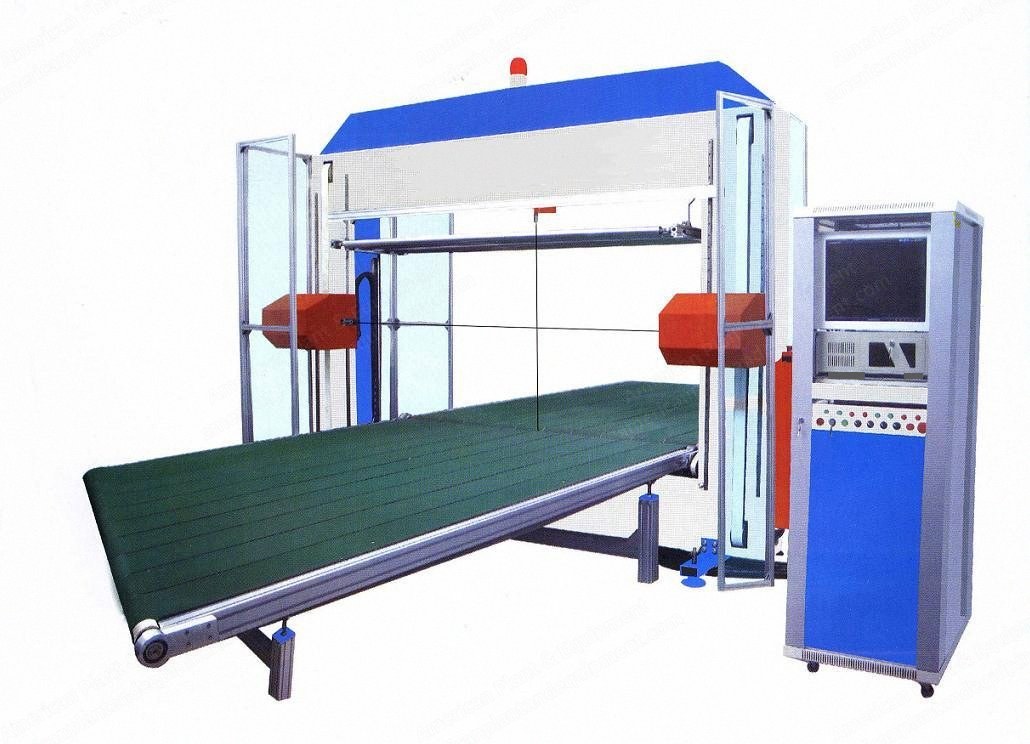

NovaStar, FN165, CNC Contour Foam Cutting Machine, 2 Blades, 3000x2200x1200mm Capacity, 13 Japanese Servo Motors (New)

NovaStar, FN165, CNC Contour Foam Cutting Machine, 2 Blades, 3000x2200x1200mm Capacity, 13 Japanese Servo Motors

Description

  1. Overview
    1. Two blades combined vertical and horizontal
    2. Thirteen Japanese servo motors
    3. Blade: narrow blade type (width: 3 mm)
  2. Specifications
    1. Maximum foam cutting size: 3000 L x 2200 W x 1200 mm H (120 in x 88 in x 48)
    2. Maximum blade speed: 8 meters per minute
    3. Processing precision: ±0.2 mm
    4. Voltage: 380/50 or 220/60
    5. Total power: 10.5 kW
  3. Dimensions and Layout
    1. Floorspace required: 7000 L x 3500 W x 2700 mm H (23 ft x 137 in x 106)
    2. 3000 mm long conveyor on each side of the cutting station (10 ft on each side)
