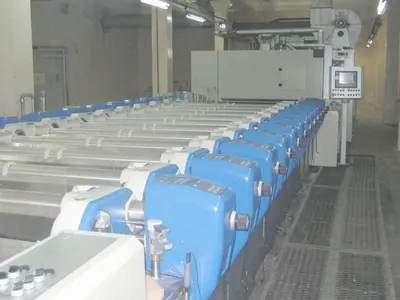

Zimmer, Rotary Printing Machine, 2004, 12 Colors, 1600mm Width, Steam Heated Dryer (New)

Zimmer, Rotary Printing Machine, 2004, 12 Colors, 1600mm Width, Steam Heated Dryer Sold

Description

  1. Overview
    1. Like new condition
    2. 12 colors
    3. Width: 1600 mm
    4. Max printing width: 1540 mm
    5. Repeat size: 640 mm
  2. Included Equipment

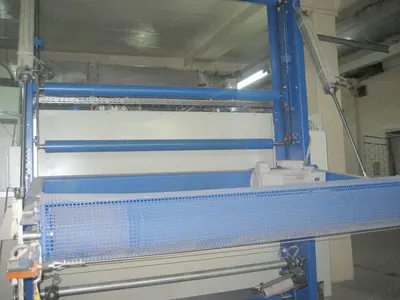

    1. Fabric feeding device

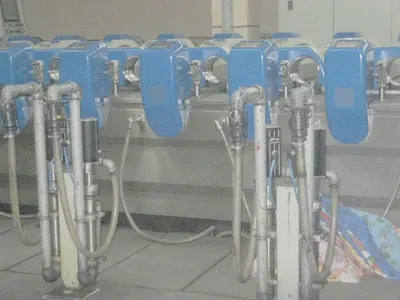

    2. Printing machine equipped with patterns

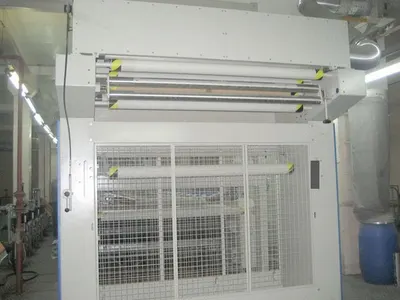

    3. High efficiency dryer compact HC steam heated
    4. Fuzz remover
    5. Distribution box

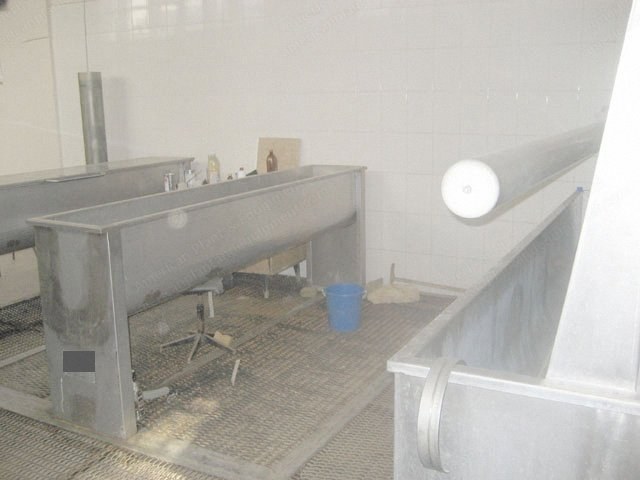

    6. Pattern rinsing device
    7. Color kitchen
    8. 2 tanks 500 liters each, 2 preliminary filters, 2 pumps, 2 filters, 4 pumping tanks 1000 liters each, 2 color mixers, scales
    9. Sample printing machine mini MDF
    10. 2 stage piston type compressor Keiser
  3. Specifications
    1. 380 volt 50 Hz maximum capacity 250 kVA average capacity 130 kW
    2. Water pressure 2 to 3 bar, water temp 10 to 25 C, water usage m3/hour
    3. Air pressure - no less than 7 bar
