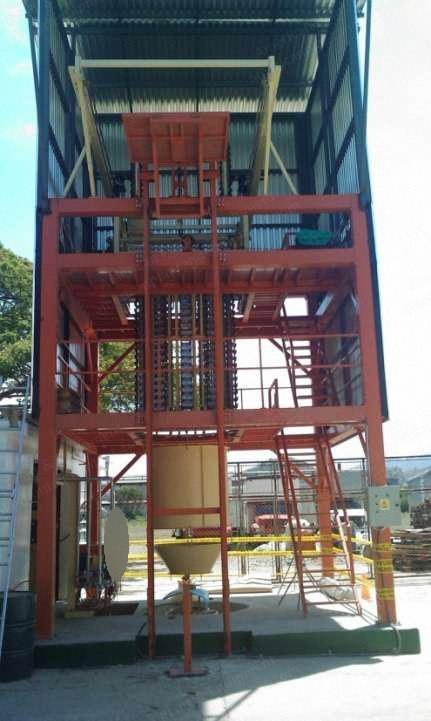

NovaStar, FG120, Vertical Round PU Foaming Production Line, 4200x4200x7000mm, 10 Streams, PLC Control (New)

NovaStar, FG120, Vertical Round PU Foaming Production Line, 4200x4200x7000mm, 10 Streams, PLC Control

Description

  1. Overview
    1. Inventory number: G-2265
    2. Vertical PU foaming production line
  2. Main Machine Frame
    1. Frame size: 4200(L) x 4200(W) x 7000(H) mm
    2. Frame material: 100x100x5 standard profiled bar
  3. Production Stream Constituent
    1. Each stream uses an electromagnetism actuator to control pump speed; motor feedback single pulse each rotation to control system; PLC system precisely controls flux of each stream
    2. Water: output 0-2 L/min; pump Viking, USA made (option: Viking pump SG-0518 PTFE lip seal, USA made)
  4. Storing Tank
    1. Equipped with water chiller (15P) with water circle pipe for PPG, TDI, MC
    2. PPG no. 1: capacity 3 m³; material 5 mm A3 carbon steel; accessory: mix device and cooling water circle pipe, material loading pump
    3. PPG no. 2: capacity 3 m³; material 5 mm A3 carbon steel; accessory: mix device and cooling water circle pipe, material loading pump
    4. TDI: capacity 2.5 m³; material 5 mm A3 carbon steel; accessory: mix device and cooling water circle pipe, material loading pump
    5. MC: capacity 1 m³; material 3 mm stainless steel; accessory: mix device and cooling water circle pipe, material loading pump
    6. Tin: capacity 150 L; material 1 mm stainless steel
    7. Silicon: capacity 150 L; material 1 mm stainless steel
    8. Amine: capacity 150 L; material 1 mm stainless steel
    9. Water: capacity 150 L; material 1 mm stainless steel; accessory: water filter
    10. Color: capacity 150 L; material 1 mm stainless steel
    11. Fire retarding agent or others: capacity 150 L; material 1 mm stainless steel
  5. Mixing Head
    1. Power: 7.5 kW
    2. Mix RPM (invert): 600 RPM
    3. Invert: Delta
    4. Material: duralumin, 40 chrome
    5. Output: 20-48 L/min
  6. Control System
    1. PLC: Delta; PLC system controls and adjusts all timing valves, mix head speed, take-up system and pump; easy setting for different foam products
    2. 10" color touch screen: shows all production line running data, saves production data for different foam products; easy data input
    3. Full set of button control system: operator can adjust production data faster via button control panel
  7. Cutting Device
    1. Cutting device is synchromesh with take-up device by mechanical
    2. Motor power: 0.55 kW, 0.75 kW
    3. Cutting blade: toothed blade
    4. Hoist system to take the foam block down
    5. Max weight of foam block: 300 kg
  8. Take-Up Device
    1. Motor power: 3 kW
    2. Height: 2800 mm
  9. Other
    1. Material pipe: galvanization pipe
    2. Include outside frame of main machine, with step and desk
  10. Production Specification
    1. Material constitute: 10
    2. Diameter of foam block: 1200 mm (option: 1380, 1450 mm)
    3. Max height of block: 3000 mm
    4. Density: 14-35 kg/m³ by 1200 mm diameter
    5. Speed of produce: 900-1550 mm/min
    6. Max output of mix head: 48 L/min
