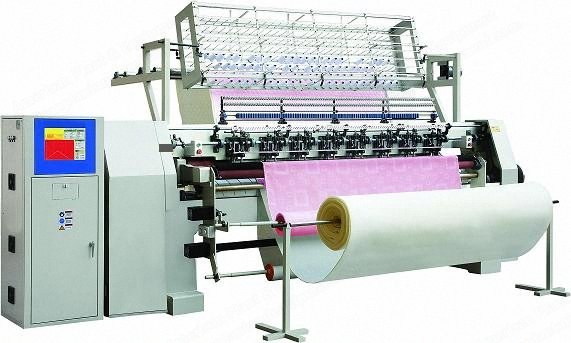

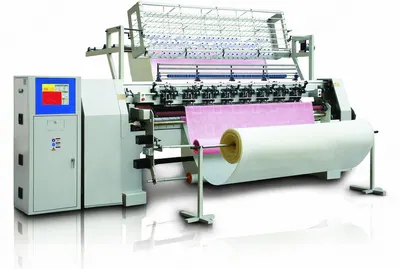

NovaStar, QL126, 128" (3300mm) Width, 3 Bars, Computerized Lock Stitch Tack and Jump Quilter (New)

NovaStar, QL126, 128" (3300mm) Width, 3 Bars, Computerized Lock Stitch Tack and Jump Quilter

Description

  1. Overview
    1. Three-bar quilting machine
    2. Width of quilting: 3300 mm
    3. Space between needles: 25.4 mm
    4. X-axis movement distance: 305 mm
    5. Thickness of quilting: up to 20 mm
    6. Length of stitch: 2 to 5 mm
    7. Speed of production: 20 to 90 m/h
    8. Speed of main shaft: 450 to 550 rpm
    9. Needle model: 16#, 19#
  2. Specifications
    1. Dimensions (L x W x H): 5100 x 1150 x 1800 mm
    2. Gross weight: 3300 kg
    3. Power: 4.5 kW
    4. Voltage: 220/60 Hz or 380/50 Hz
  3. Features
    1. Thread-break detection technique
    2. Automatic needle lifting and computerized speed adjustment
    3. CAD drawing method
    4. Able to quilt simple embroidery patterns
    5. Inside-pattern tack and jump, different pattern quilting in two lines
    6. 360° quilting operation, complicated pattern
