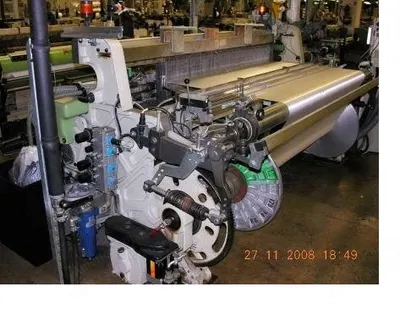

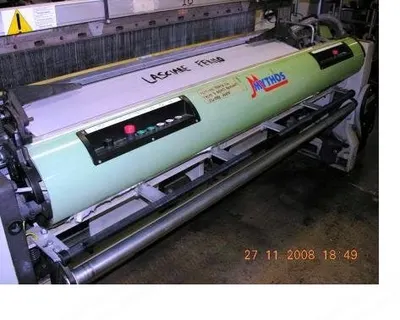

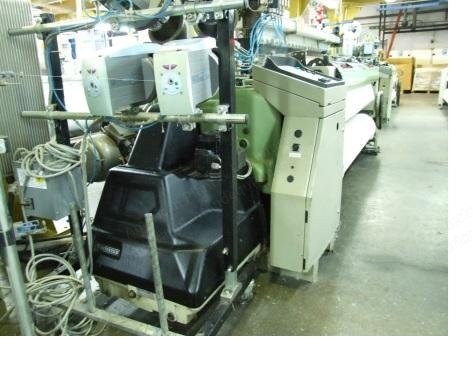

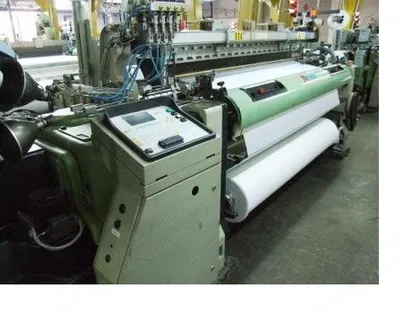

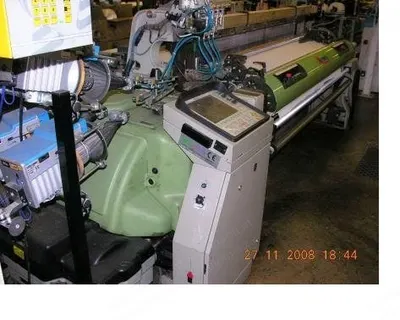

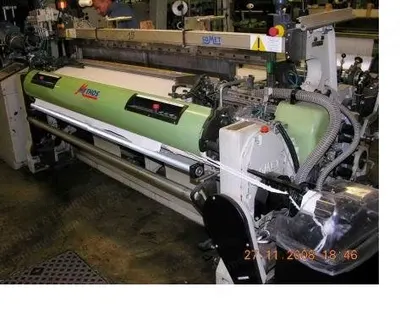

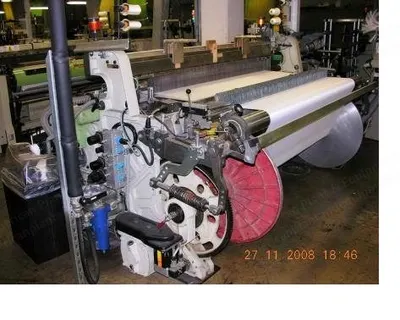

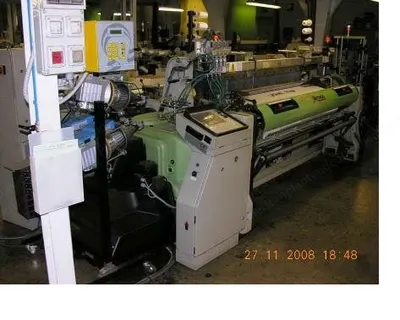

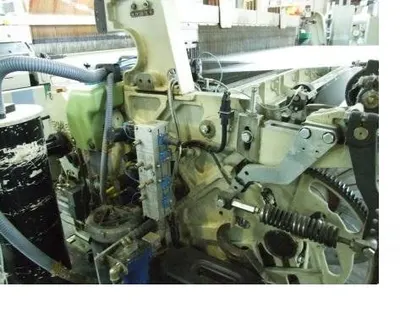

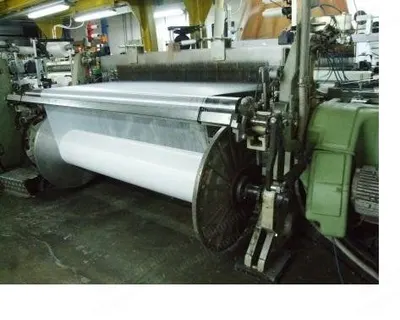

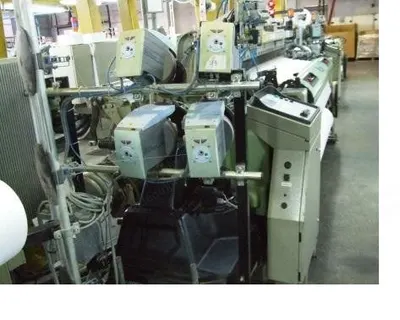

Somet, Mythos, 2000/2001, Airjet Looms, 1900mm to 2300mm Width, 4 Colours

Somet, Mythos, 2000/2001, Airjet Looms, 1900mm to 2300mm Width, 4 Colours

Description

  1. Overview

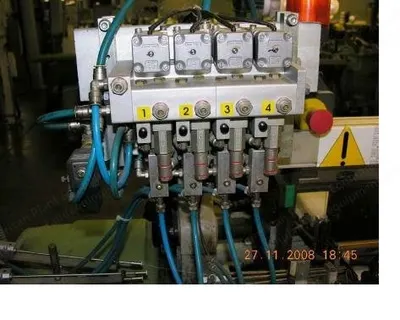

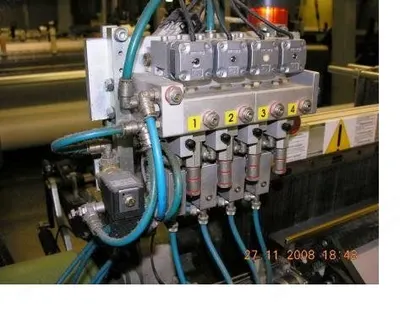

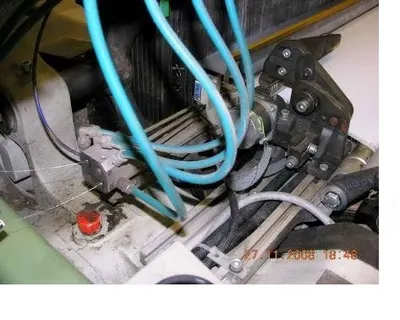

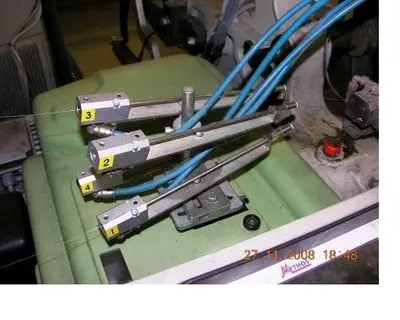

    1. Air jet weft selector, 4 colours.
    2. Gauge reed: 23 needles/cm (alternative gauge reeds available: 9, 14.5, 12, 13, 19, 85, 17, 21).
    3. Electronic Staubli dobby 2871E, 22-16 shafts.
    4. Camme motion FIM 2029 CS, 10 shafts.
    5. Camme types installed: symmetrical cam (profile 0) 2/2 for 2 looms, 2/1 for 2 looms, 1/1 for 2 looms.
    6. Camme types available: symmetrical cam (profile 0) 2/2 for 4 looms, 2/1 for 4 looms, 1/1 for 4 looms.
    7. Camme types installed: symmetrical cam (profile 0) 2/2 for 2 looms, 2/1 for 3 looms, 1/1 for 26 looms.
    8. Camme types available: symmetrical cam (profile 0) 2/2 for 29 looms, 2/1 for 28 looms, 1/1 for 5 looms.
    9. Number of heald frames: 8/10 or 6.
    10. Number of heddles: 10/16,000 each loom.
    11. Rotary warp stop motion and warp stop motion with drop wires (10/16,000 each loom).
    12. Number of warp beam flange diam. 800/760 mm: 1.5.
    13. Number of cloth rolls: 1.5.
    14. Number of LGL or Sirio DSR: 3.

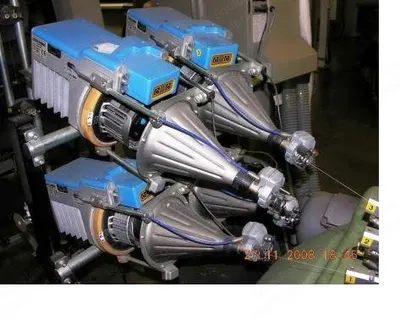

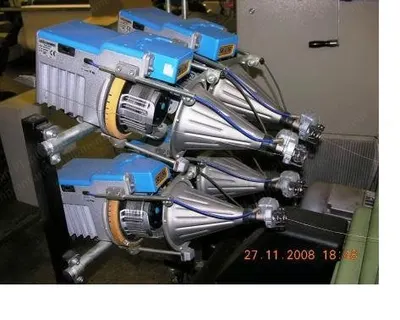

    15. Roj weft feeders.
    16. Number of weft creel 8 positions: 1.

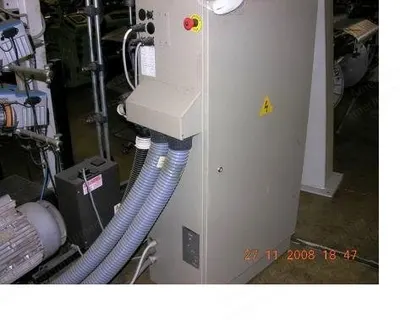

    17. Number of electric panel power device for weft feeders: 1.

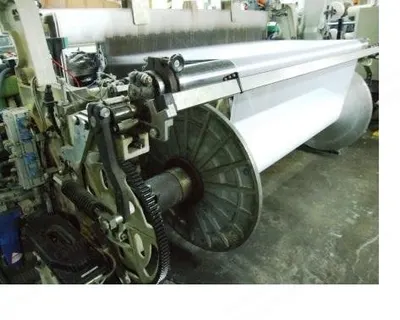

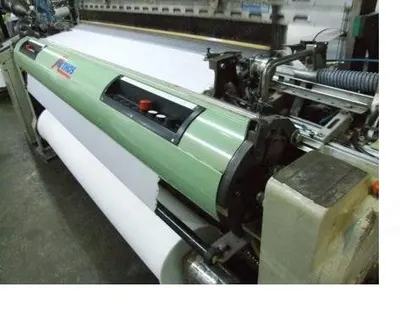

    18. Electronic unwinder of the beam and winder of cloth roller.
    19. Maximum weaving speed: 1000 rpm.
  2. Specifications by Year and Width
    1. Year: 2001, width: 1900 mm.
    2. Year: 2001, width: 2300 mm.
    3. Year: 2000, width: 1900 mm.
    4. Year: 2001, width: 2300 mm.
  3. Condition
    1. Rotary warp stop motion for 24 looms, warp stop motion with drop wires (10/16,000 each loom) for 7 looms.
    2. Electronic unwinder of the beam and winder of cloth roller.
  4. Included
    1. Air jet weft selector 4 colours.
    2. Gauge reed: 23 needles/cm (alternative gauge reeds available: 9, 14.5, 12, 13, 19, 85, 17, 21).
    3. Electronic Staubli dobby 2871E 22-16 shafts.
    4. Camme motion FIM 2029 CS 10 shafts.
    5. Camme types installed: symmetrical cam (profile 0) 2/2 for 2 looms, 2/1 for 2 looms, 1/1 for 2 looms.
    6. Camme types available: symmetrical cam (profile 0) 2/2 for 4 looms, 2/1 for 4 looms, 1/1 for 4 looms.
    7. Camme types installed: symmetrical cam (profile 0) 2/2 for 2 looms, 2/1 for 3 looms, 1/1 for 26 looms.
    8. Camme types available: symmetrical cam (profile 0) 2/2 for 29 looms, 2/1 for 28 looms, 1/1 for 5 looms.
    9. Number of heald frames: 8/10 or 6.
    10. Number of heddles: 10/16,000 each loom.
    11. Rotary warp stop motion and warp stop motion with drop wires (10/16,000 each loom).
    12. Number of warp beam flange diam. 800/760 mm: 1.5.
    13. Number of cloth rolls: 1.5.
    14. Number of LGL or Sirio DSR: 3.
    15. Roj weft feeders.
    16. Number of weft creel 8 positions: 1.
    17. Number of electric panel power device for weft feeders: 1.
    18. Electronic unwinder of the beam and winder of cloth roller.
    19. Maximum weaving speed: 1000 rpm.
    1. Not specified.
