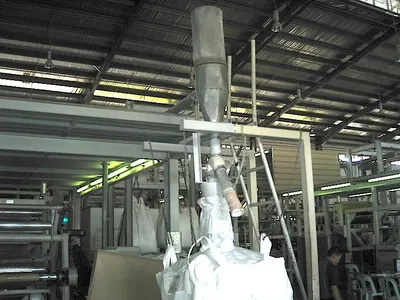

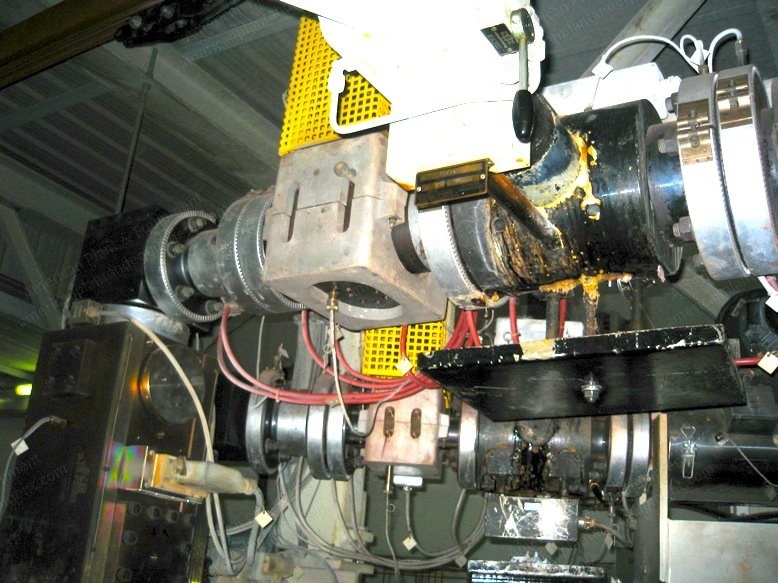

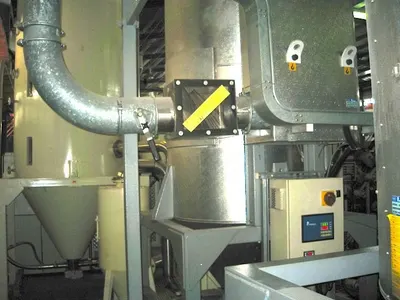

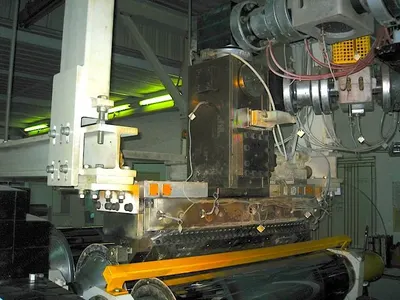

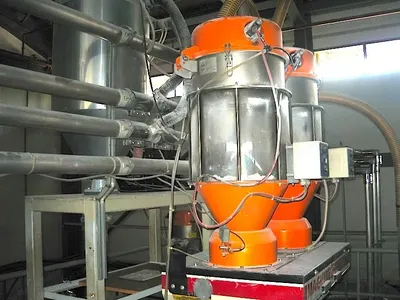

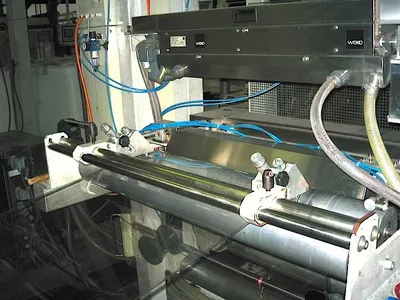

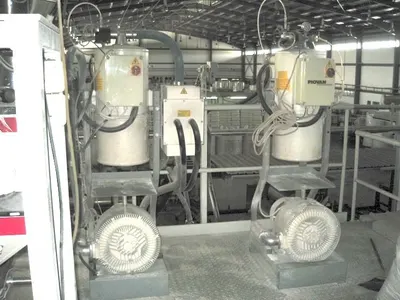

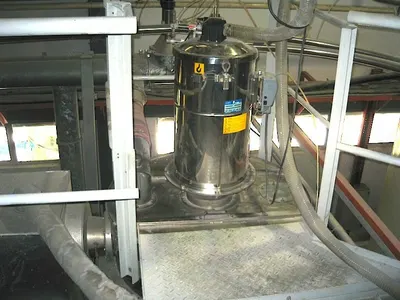

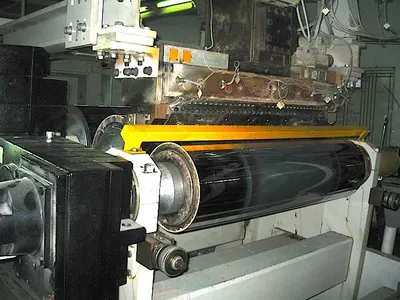

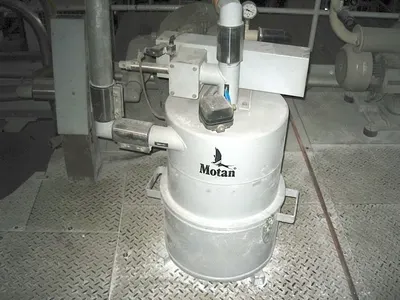

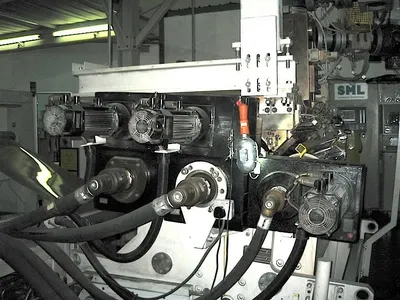

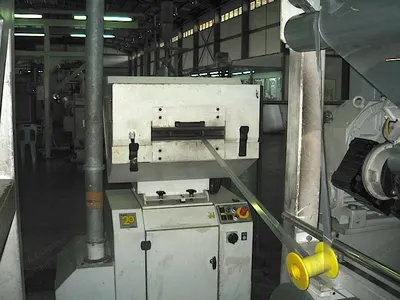

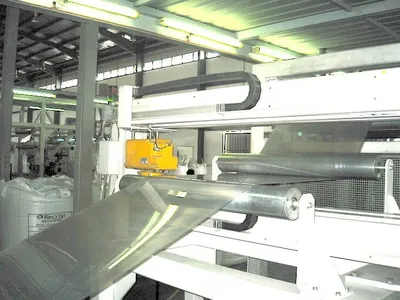

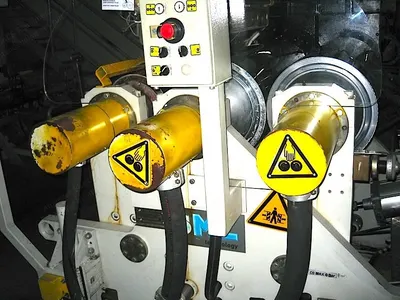

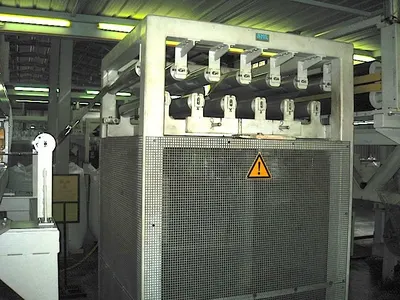

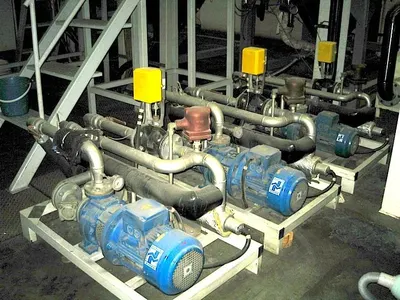

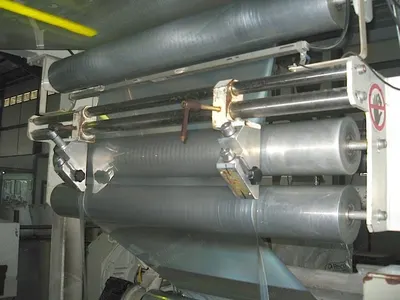

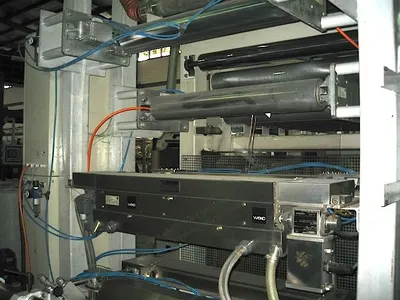

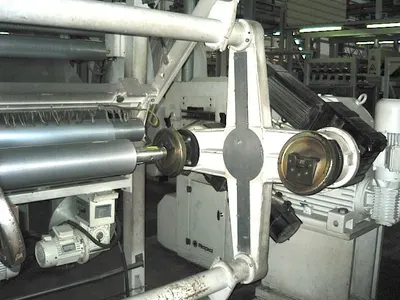

Description Overview Two complete APET sheet lines: SML 2 (made 2003) and SML 1 (made 2001) Straight laid out for polyester Thickness range: 0.1–1.2 mm Width range: 400–700 mm Output: 280–300 kg/h Used but like new condition Complete lines including drying, in perfect running condition Extrusion System Main extruder: 90/33, 400 kg/h, 122 kW Coextruder: 45/28, 100 kg/h, 38.4 kW Static mixer 4D EDI T-die 950 mm width with external deckling Feed block for 3-layer co-extrusion Hydraulic screen changer on 45 mm and 90 mm extruders Maag melt pumps for pressure regulation on 45 mm and 90 mm extruders Polishing Calender Roller C0: 300 mm Roller C1: 400 mm Roller C2: 400 mm Roller width: 1050 mm Winding and Accumulation Accumulator for easy and safe changeover of winding roll Sheet length approximately 17 meters Turret winder with AC servo drive 1000 mm diameter, photocell gap-winding Taper tension potentiometer Thickness Monitoring Software and shift report – marker Beta Control Material Handling and Drying Maguire material conveying – Motan with 2 vacuum blowers Total of 9 loaders, dosing and blending series 140 and 440 Side trim grinder with blower and cyclone collection – maker Rapid Dry material system – Motan Dry Air Generator Luxor 1000 coupled to ETA for energy recuperation, servicing 3000 L bin Luxor 400 with ETA servicing 1800 L bin 2 small dryers for additives Difference of F10.118 (made 2001) versus offer F10.117 in layout of drying systems Electrical and Controls 3-phase 400/230 V EU standard Complete electrical and electronic process controls
