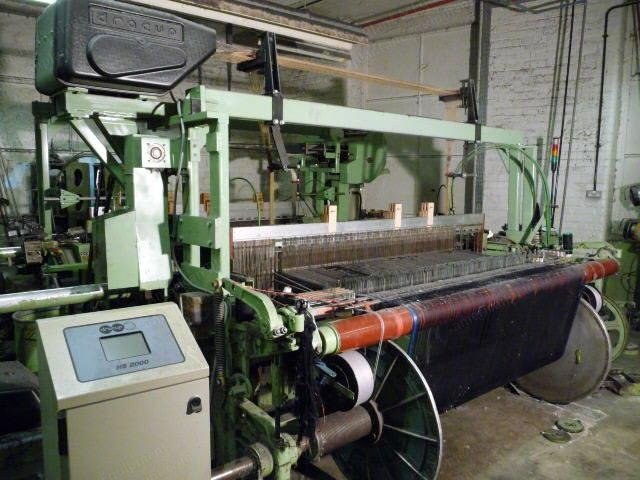

Dornier, HTV4/SD, 1991, Rapier Looms, 2300mm Width, 4 Colors, Staubli Mechanical Dobby

Dornier, HTV4/SD, 1991, Rapier Looms, 2300mm Width, 4 Colors, Staubli Mechanical Dobby

Description

  1. Overview
    1. Model: HTV4/SD
    2. Year: 1991
    3. Width: 2300 mm
    4. Number of colors: 4
  2. Dobby and Shedding
    1. Dobby: Staubli mechanical dobby, type 2217
    2. Maximum number of levers: 12
    3. Number of levers installed: 8 (total 24)
    4. Frames: 8 per loom (total 24)
  3. Weft and Jacquard
    1. Tucking units: fitted to 2 looms
    2. Name edge jacquard: 1 x Dracup type 400E and Dracup type HS2000
    3. Weft accumulators: Iro Galaxy (9207) – 3 per loom on 2 looms (total 6) and Iro Galaxy (RS975) – 2 on remaining loom
  4. Accessories and Parts
    1. Heddles and droppers: 4000
    2. Cloth rollers: 1 per loom (total 3)
    3. Beams: 1 per loom (total 3)
  5. Condition and Notes
    1. With tucking units and name edge jacquards
