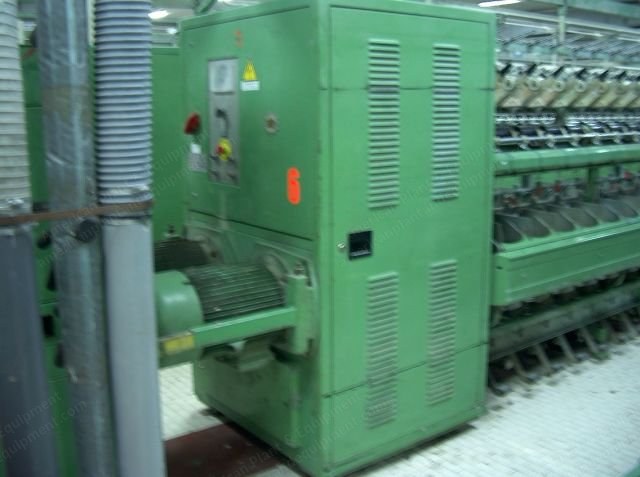

Savio, TDS 228 & A.E.S. 12, 1993, 170 Spindles Twisters, 28 Heads Electronic Doubler

Savio, TDS 228 & A.E.S. 12, 1993, 170 Spindles Twisters, 28 Heads Electronic Doubler

Description

  1. Overview
    1. Make: Savio
    2. Model: A.E.S. 12
    3. Year: 1993
    4. Quantity: 2
    5. All these machines are now installed in one complete twisting plant.

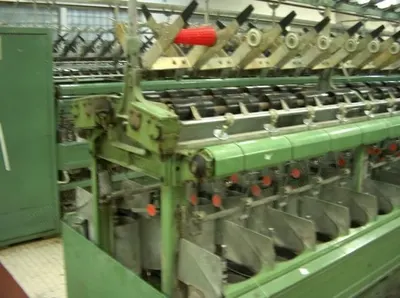

  2. Machine 1 Specifications

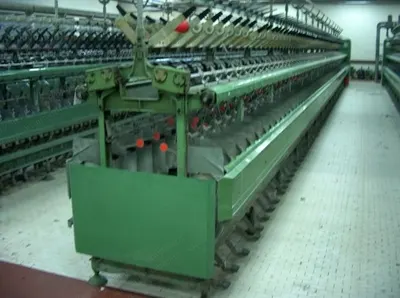

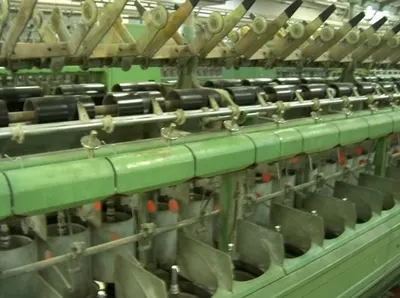

    1. No. 170 spindles each
    2. Double working side with independent control
    3. Independent control each spindle
    4. Feeding from doubled cone 8”
    5. Exit in conical cone 6” 4°20’
    6. Yarn reserve device
    7. Device for soft package
    8. Superior creel for bobbins with plastic supports
    9. Blower-suction device make Magitex for cleaning
    10. Complete set of pulleys for speedy change
    11. Complete set of gear for twist change
    12. Electrical feeding volt 380 Hz. 50

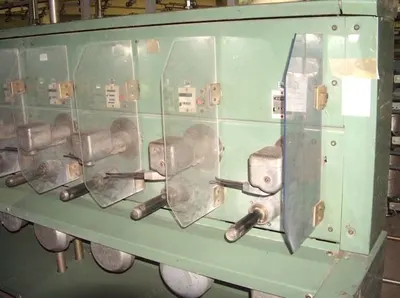

  3. Machine 2 Specifications

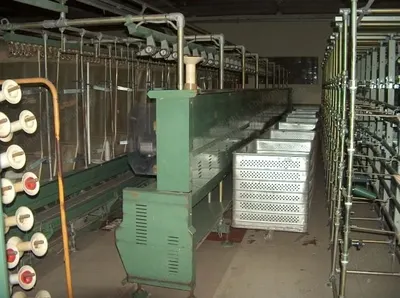

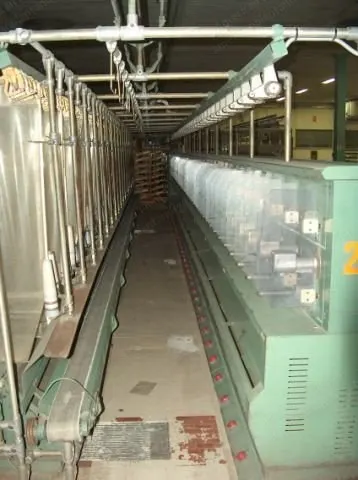

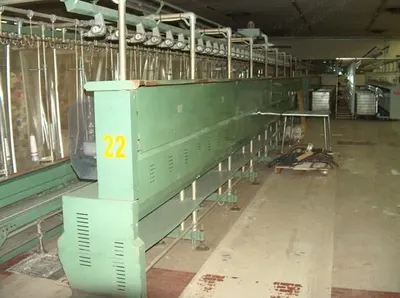

    1. Nos. 28 heads
    2. Single-side machine

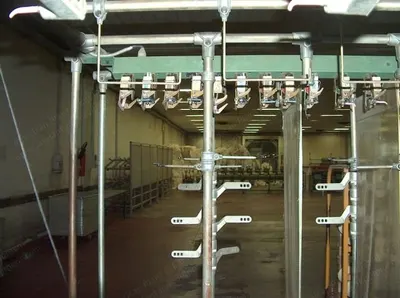

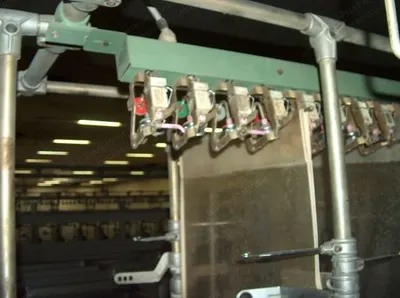

    3. Feeding from up to 3 packages with external creel
    4. Take-up in cheese double yarn suitable for feeding Savio TDS 228
    5. Pre-set electronic meter counter every spindle
    6. Assembly speeds of 1.200 m/min
    7. Single-section yarn tensioning device with incorporated microswitch
    8. Package holding self
    9. Independent electrical motor every spindle
    10. Independent electronic braking every spindle
    11. Electrical feeding volt 380 Hz. 50
