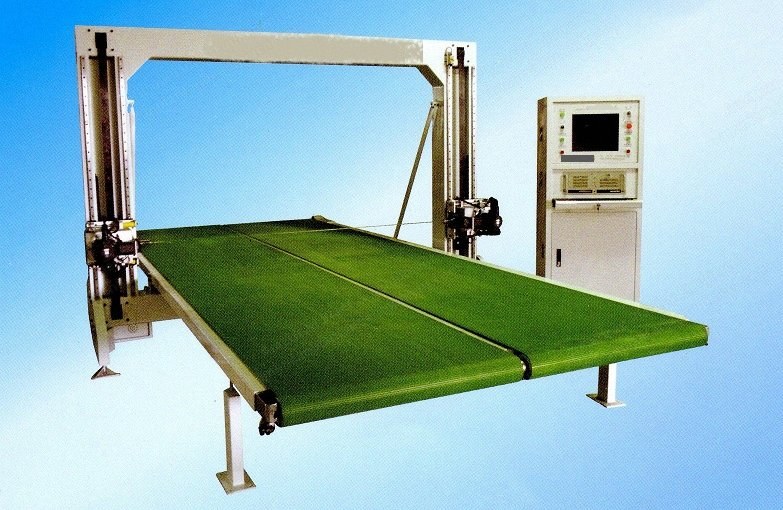

NovaStar, FN178, Horizontal Cutter, 3000x2100x1200mm Max Size, CNC, 8kW (New)

NovaStar, FN178, Horizontal Cutter, 3000x2100x1200mm Max Size, CNC, 8kW

Description

  1. Overview
    1. Industrial computer cnc control
    2. Lcd display
    3. Motion controlling card module
    4. Windows 2000 or above operating system
    5. Programmable axes: x, y, z, φ
  2. Specifications
    1. Weight: 1.8 ton
    2. Full power: 8 kw, 480 v, 60 hz
    3. Machine size: 6000 x 3000 x 2200 mm
    4. Blade size: 2345 x 3 x 0.5 mm
    5. Servo system: 2000-2400 r/min
    6. Step motor torque: 20 n.m
    7. Max cutting speed: 0-6.3 m/min
    8. Min cutting radius: 10 mm
    9. Admissible error: ±0.5 mm
    10. Min cutting size: 5 mm
  3. Condition
    1. Self-test system installed
    2. Blade alert installed
