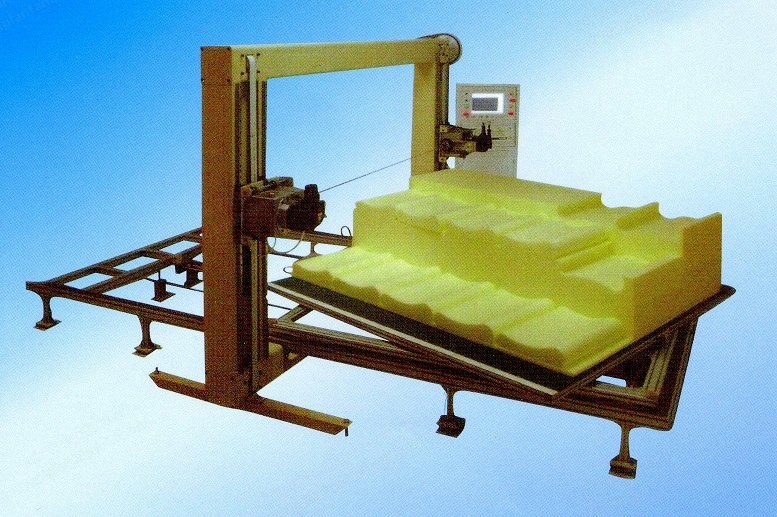

NovaStar, FN180, Contour Cutter with Rotary Table, Max Size 2200x2200x1200mm, 4-Axis CNC (New)

NovaStar, FN180, Contour Cutter with Rotary Table, Max Size 2200x2200x1200mm, 4-Axis CNC

Description

  1. Overview
    1. Suitable for simple 3-d products such as u-shape neck pillows and sofa accessories.
  2. Specifications
    1. Weight: 1.3 ton.
    2. Full power: 8 kw, 480 v, 60 hz.
    3. Machine size: 4000 x 3000 x 2200 mm.
    4. Blade size: 2345 x 3 x 0.5 mm.
    5. Maximum cutting dimensions: 2300 x 2300 x 1300 mm.
    6. Servo system: 2400-2600 r/min.
    7. Maximum cutting speed: 0-6.3 m/min.
    8. Admissible error: ±0.5 mm.
    9. Minimum cutting size: 5 mm.
    10. Minimum cutting radius: 10 mm.
    11. Step motor torque: 20 n.m.
  3. Control System
    1. Cnc type: industrial computer.
    2. Display: lcd.
    3. Controlling module: motion controlling card.
    4. Operating system: windows 2000 or above.
    5. Programmable axes: x, y, z, φ.
  4. Features
    1. Self-test system: installed.
    2. Blade alert: installed.
