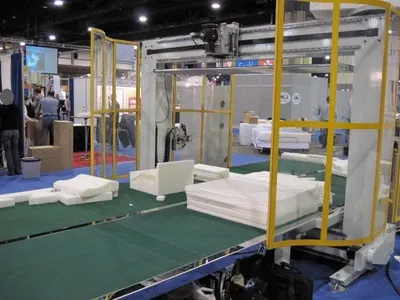

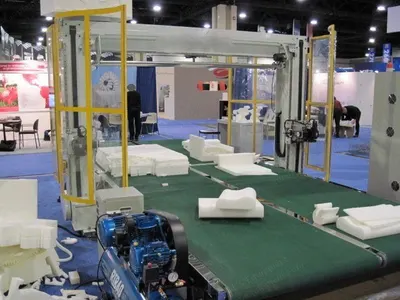

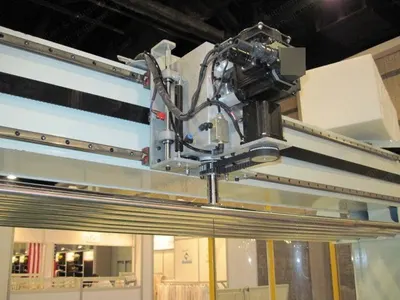

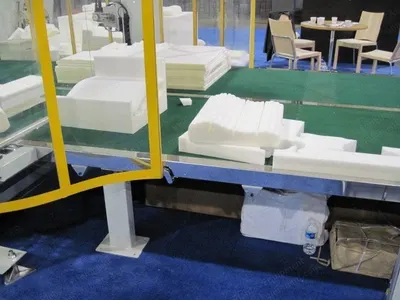

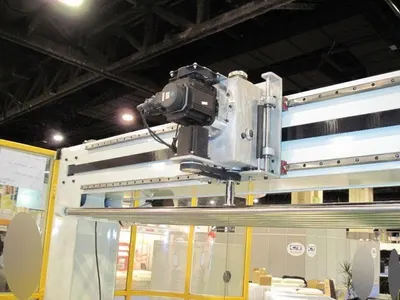

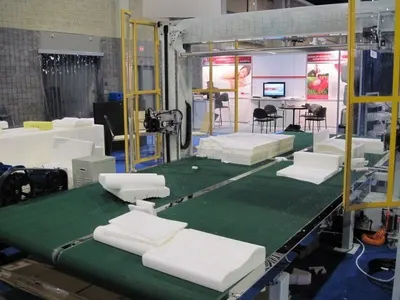

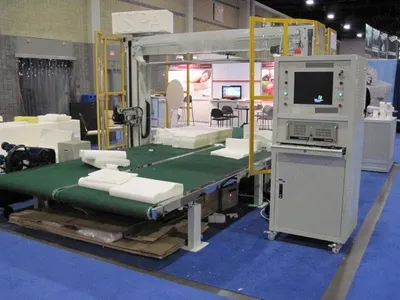

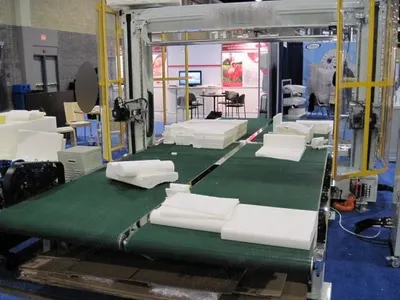

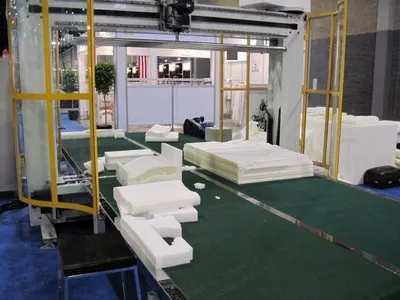

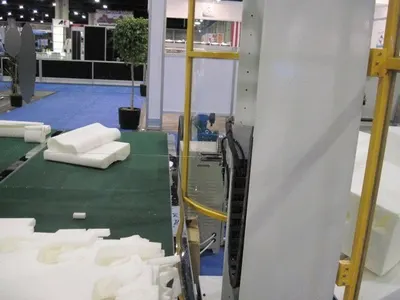

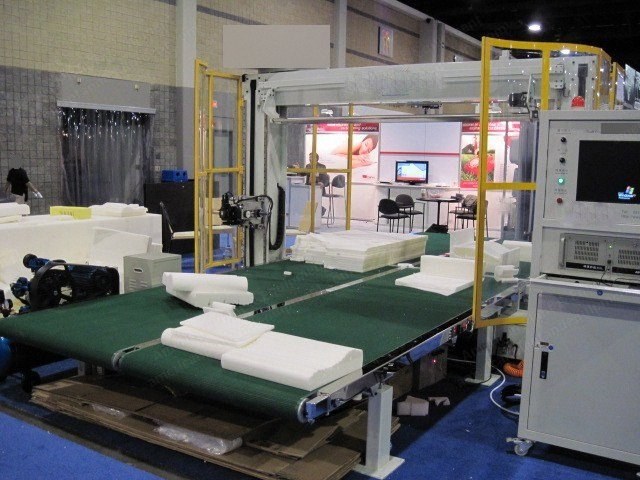

NovaStar, FN181, CNC Double Blade Cutter, Max Bun Size 3000x2100x1200mm, 10kW (New)

NovaStar, FN181, CNC Double Blade Cutter, Max Bun Size 3000x2100x1200mm, 10kW

Description

  1. Overview
    1. Dimensions: 6000mm x 3100mm x 2300mm
    2. Weight: 2.8 tons
    3. Power: 10kW
  2. Specifications
    1. Max bun size: 3000mm x 2100mm x 1200mm
    2. Blade size: (2345+1490mm) x 3mm x 0.5mm

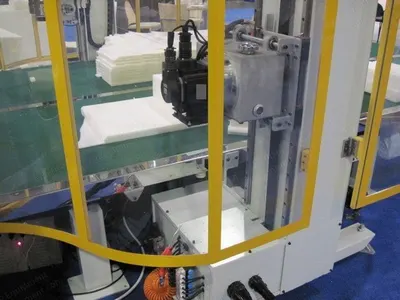

    3. Servo system: 2400 to 2600 RPL
    4. Max cutting speed: 0-6.3 meters per minute
    5. Minimum cutting size: 5mm
    6. Minimum cutting radius: 10mm
    7. Step motor torque: 20 Nm
    8. Programmable axis: X, Y1, Y2, Z1, Z2, Φ1, Φ2
  3. Control System

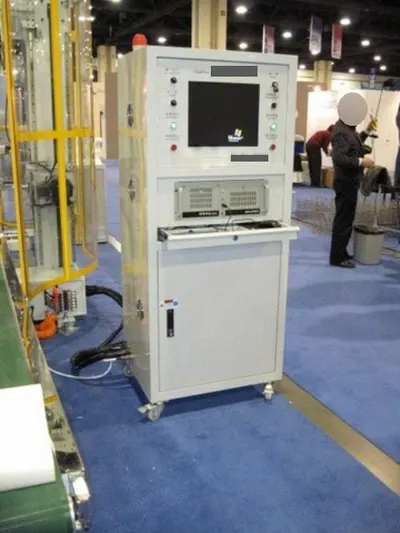

    1. CNC: Computer controlled with LCD display (Windows 2000 or above)
    2. Motion controlling card
  4. Condition and Features
    1. With self test system and blade alert
