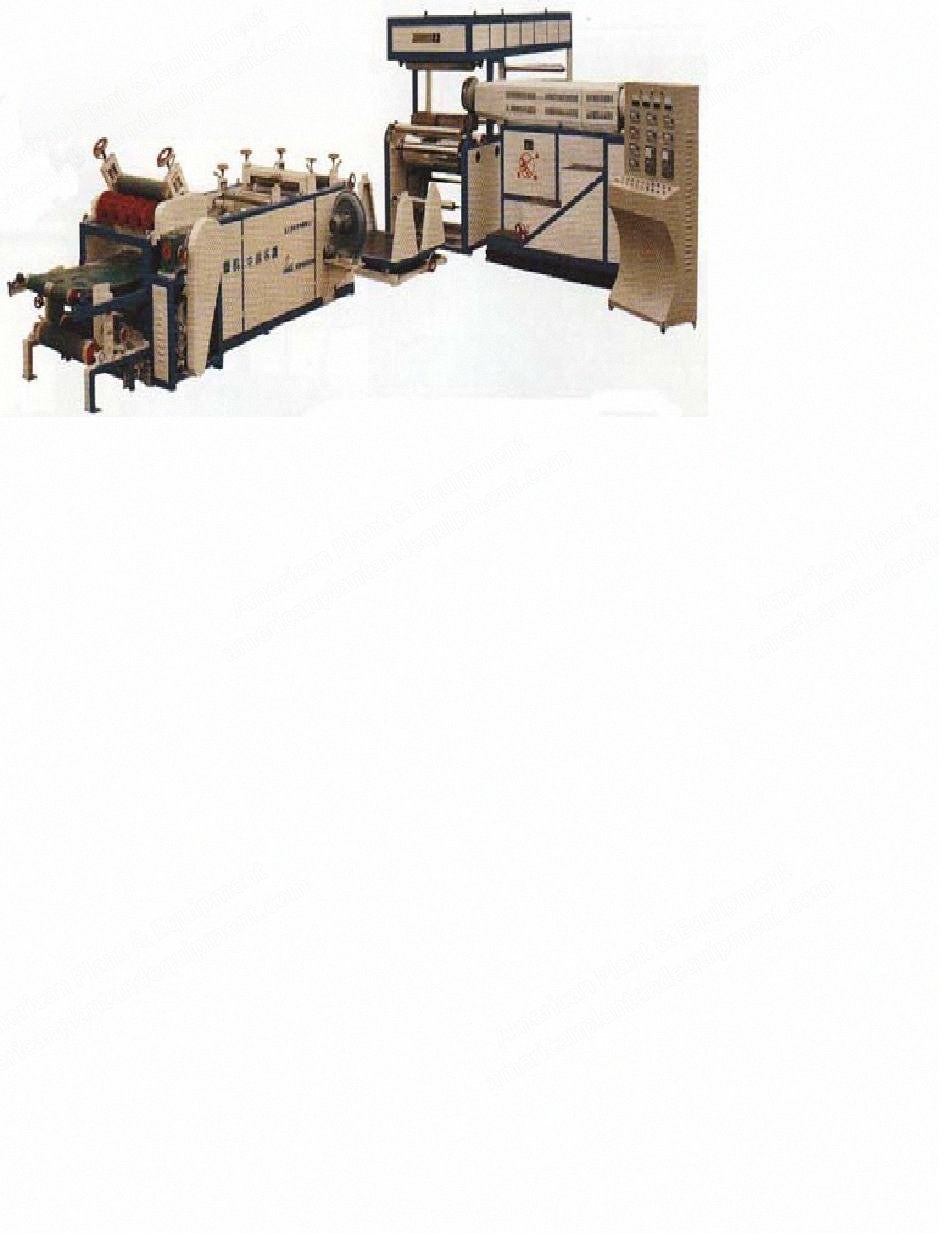

NovaStar, LC119, 1500mm Die Width, 120mm Screw Diameter, Extrusion Laminating Machine (New)

NovaStar, LC119, 1500mm Die Width, 120mm Screw Diameter, Extrusion Laminating Machine

Description

  1. Overview
    1. Multifunctional laminating machine model LC119
    2. Optional equipment includes cooling tower and chiller
    3. Spare parts for one-year use available as an option
  2. Product Information
    1. Laminated bag/fabric
    2. Material: PP / HDPE
    3. Gravity: 0.91 kg/dm3
    4. Warp tape width: 2.54 mm
    5. Weft tape width: 2.54 mm
    6. Warp tape titer: 1000 to 2000 denier
    7. Weft tape titer: 1000 to 2000 denier
  3. Technical Specifications
    1. Model: LC119
    2. Diameter of extruder screw: 120 mm
    3. L/D ratio of screw: 28:1
    4. Number of dies: 1
    5. Width of die: 1500 mm
    6. Gross power: 96 kW
    7. Power of extruder motor: 37 kW
    8. Heating power of extruder: 42 kW
    9. Power of driving motor: 11 kW
    10. Maximum coating width: 1200 mm
    11. Coating speed: 30-100 m/min
    12. Installing dimensions (L x W x H): 15500 x 8000 x 2500 mm
    13. Weight (approx.): 8000 kg
  4. Function and Features
    1. Uses adhesive property of polypropylene and polyethylene at melting status to adhere and laminate paper or color-printed OPP and BOPP film to woven bag under pressure
    2. Through cut-off and sewing to make paper and plastic laminated or color-printed packaging woven bags
    3. Can also coat woven cloth with melted PP/PE to make laminated woven sacks
    4. Extruder with vertical gear reducer adopts automatic temperature-control system to adjust melting temperature
    5. Screw and cylinder are made of nitrided 38CrMoAlA alloy steel
    6. Double-die can realize single or double-face coating
    7. Width of coating and laminating can be regulated
    8. Stepless speed regulation controls coating thickness and laminating speed
    9. Photoelectric meter of edge correcting assures accuracy of coating
    10. Automatic edge cutting, counting, edge-blowing, perforating, edge-folding, cutting-off and winding devices are applied
  5. Included Items
    1. Laminating machine model LC119 (1 set)
    2. Chiller and cooling tower can be quoted if required
    3. Spare parts for one-year use should be considered by buyer
