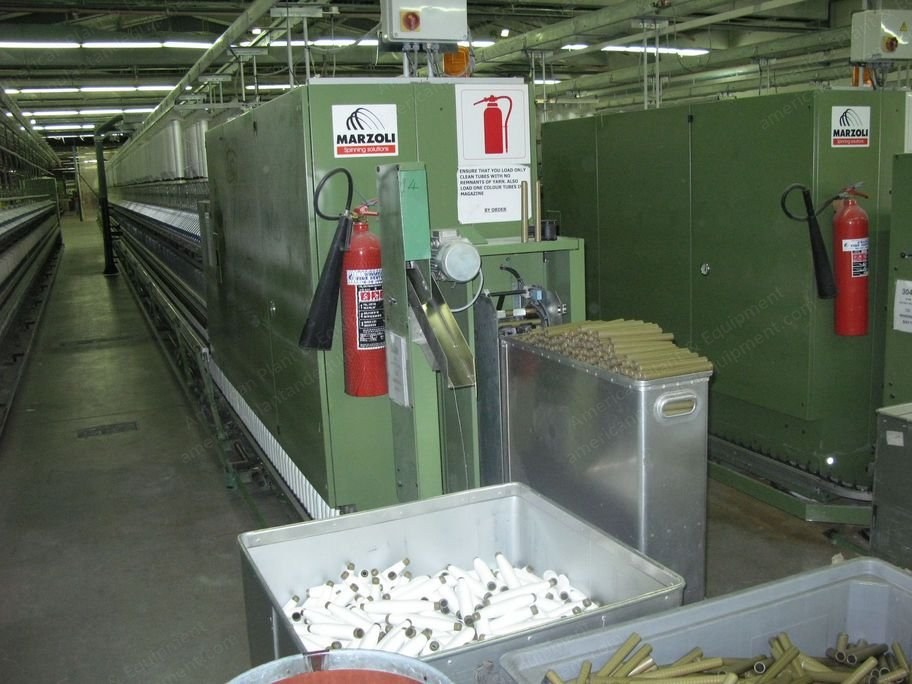

Marzoli, Complete Spinning Line, Blowroom, Carding, Drawing, Speed Frames, Ring Frames, Winding, Twisting

Marzoli, Complete Spinning Line, Blowroom, Carding, Drawing, Speed Frames, Ring Frames, Winding, Twisting

Description

  1. Spinning Preparation No. 1
    1. Blowroom: 2x Marzoli "B10/1" hoppers (2002)
    2. 1x Marzoli "B22" conveyor (2002)
    3. 1x Marzoli "B142" automixer (2002)
    4. 1x Marzoli "B34" opener (1984)
    5. 1x Marzoli "SU1J" fan (1984)
    6. Carding: 4x Schubert & Salzer "KB86" carding machines with chute feeds
    7. Can size: 1000 mm x 950 mm (1986)
    8. Drawframes: 1x Schubert & Salzer draw frame, "SB 51"
    9. Can size 800 mm x 950 mm (1986)
    10. 1x Schubert & Salzer "RSB 51" draw frames
    11. Can size 500 x 1000 mm
  2. Spinning Preparation No. 2
    1. Blowroom: 2x Marzoli "B10/2" hoppers (1984)
    2. 2x Marzoli "B10/2A" hoppers (1988)
    3. 1x Marzoli "B22" conveyor (1984)
    4. 2x Marzoli "B34" openers (1994-1996)
    5. 1x Marzoli "B142" automixer (1984)
    6. Carding: 6x Marzoli "C41" carding machines with chute feeds
    7. Can size: 600 mm x 1000 mm (1984)
    8. Draw frames: 1x Rieter "SB52" draw frame
    9. 2x Rieter "RSB51" draw frames
    10. Can size: 500 mm x 1000 mm
  3. Spinning No. 1
    1. Speed frames: 2x Marzoli "BC16" speed frames
    2. 80 & 116 spindles (1984)
    3. Ring frames: 5x Marzoli "NSF" ring frames
    4. 600 spindles, 50 mm & 75 mm ring diameter
    5. 230 mm gauge, with Luwa overhead blowers (1984, 1986)
    6. Ring frames: 2x Marzoli "NSF2/L" ring frames
    7. 600 spindles
    8. 45 mm & 75 mm ring diameter
    9. 200 mm gauge
    10. With Caipo slubbing devices
    11. Automatic doffing
    12. With Luwa overhead blowers (1988)
  4. Spinning No. 2
    1. Speed frame: 1x Marzoli "FT1" speed frame
    2. 120 spindles (1994)
    3. Ring frames: 7x Marzoli "RST1" ring frames
    4. 1296 spindles, 40 mm & 75 mm
    5. 180 mm spindles
    6. With auto doffing
    7. With Sohler overhead blowers
  5. Winding
    1. Autoconers: 2x Schlafhorst "338D" autoconers
    2. 60 positions
    3. 6" cylindrical tubes
    4. Quantum clearers
    5. Air splicing
    6. Waxing device
    7. Length measuring device
    8. With Luwa overhead blowers
    9. Autoconers: 2x Schlafhorst "338RM" autoconers
    10. 60 positions
    11. 6" cylindrical tubes
    12. Quantum clearers
    13. Air splicing
    14. Waxing device
    15. Length measuring device
    16. With Luwa overhead blowers
  6. Twisting
    1. SSM "DP-3C/S Digicone Perciflex" winder, 40 positions (2003)
    2. SSM "PS6-SD" package assembly winder, 208 spindles (2002)
    3. 6x Volkmann "VTS-08" compact twisters, 208 spindles (2002-2003)
    4. 3x Hamel "HDWR" & "H1016" assembly winders (1999 & 2002)
    5. 1x Hamel "2/054" assembly winder (1988)
    6. 4x Hamel "ET240" balloonless elastotwisters (2002)
    7. 5x Hamel "H2020E" & "H2016E" balloonless elastotwisters (2001 & 1999)
    8. 1x Hamel "2016E" balloonless elastotwisters (1997)
    9. 10x Hamel "2016" twisters, 4 with elasto conversions (1988)
    10. 1x Cimi "Vaporex VCA/A" cone steaming unit 1500 x 2600 mm with boiler (1997)
  7. Other Equipment
    1. Cason ring bobbin stripper (2003)
    2. Cason roving bobbin stripper (2003)
    3. Cason blade sharpener
    4. Hudson stretch wrapping machine
    5. Suessen cot grinder for ring frames
    6. Dronsfield cot grinder for draw frames
