Barmag, 9E10, 1998, FOY/POY Spinning Line, 24 Spinning Positions, 3400 kg/day Capacity (New)

Barmag, 9E10, 1998, FOY/POY Spinning Line, 24 Spinning Positions, 3400 kg/day Capacity Sold

Description

  1. Overview
    1. Foy / poy barmag spinning line, year 1998
    2. 2 extruders with 12 spinning positions each (total 24)
    3. Maximum production capacity of 1 extruder is 3400 kg/d
  2. Extruder Specifications

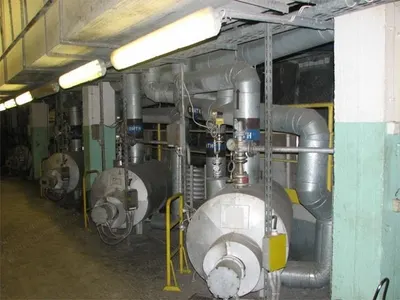

    1. Extruder type 9e10
    2. 6 heating zones, temperature range 250 – 310 °c
    3. Screen quenching chambers

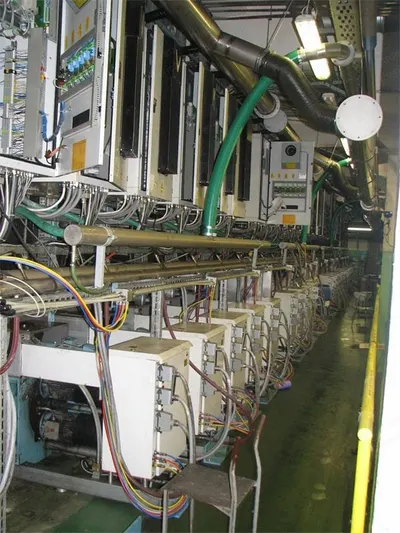

    4. Spinning heads equipped with spinning pumps and spin packs
    5. 12 spinning positions, each with 6 points
    6. Cpf fluid dynamics central filter installed on the machine
    7. Extruders equipped with hot tubes, max. temp. 200 °c, spin finish application jets and interlacing jets

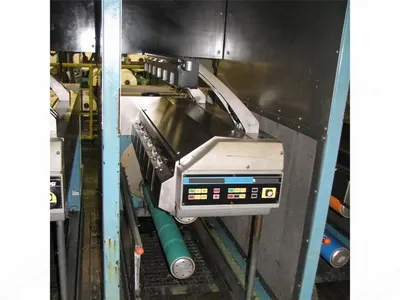

    8. In each position a birotor craft winder 6/900 is installed
    9. Maximum spinning speed is 5500 m/min
    10. Manufactured titre range is 33 – 76 dtex
    11. Possibility to control individual positions
    12. Machines have hot tube but not hot goged roller
  3. Additional Description
    1. Spin pack - screen filtration with cup, spinnerette diameter: 100 and 100/70 mm
    2. Max. melt pressure 300 bar
    3. Spinnerette: 100 mm - 72 holes 0.17 x 0.51, 48 holes 0.2 x 0.4
    4. Spinnerette: 100/70 mm - 24 holes 0.23 x 0.46 and 0.27 x 0.54, 36 holes 0.23 x 0.46, 48 holes 0.2 x 0.4 and 0.17 x 0.34
    5. Spinning melt pump 6 - fold planetary gear pump, capacity 6 x 1.8 ccm/rew
    6. Barmag spin finish pumps: 1 per spinning pos., capacity 6 x 0.08 ccm/rew
    7. Quantity of accessories - machines 100 % complete in very good condition and has additional equipment: 3 small small gallets, 3 big gallets, 4 spool handles, 1 winde-up machine, 30 bi-rotors
    8. Foy-poy line are without chips conveying and dryers
    9. Quenching system: cross flow quench with air supply valve blowing length approx. 1000 mm
  4. Per Line Configuration
    1. 1 line 12 position has: one extruder
    2. Number of spinning heads: 2
    3. Number of spinning positions: 12
    4. Number of ends per spinning position: 6
    5. Number of spin pack per spinning position: 6
    6. Number of quenching system: 12
    7. Spin-finish pump: 1 per position
    8. Tcs tubes: 6 per position
    9. Number of craft winders: 12 per machine
  5. Yarn Production
    1. Were producing following yarns on this machine: poy 84 dtex/48, foy 56 dtex/48, 76 dtex/48, also 44 dtex/24 and 33 dtex/24
    2. Foy range is from 44 dtex to 100 dtex
    3. Efficiency for machine for working speed: 4500 m/min (for such speed the owner was processing)
    4. Because technical possibilities of machine are much wider (extruder's capacity from 2200 kg/day to 5400 kg/day) we pass you max. efficiency for foy yarn in case of speed 5250 m/min for: 44 dtex - efficiency 2400 kg/day, 56 dtex - efficiency 3000 kg/day, 76 dtex - efficiency 4200 kg/day, 110 dtex - efficiency 6000 kg/day – change of screw to extruder is necessary
    5. Medium usage of electric energy per 1 ton of foy yarn by medium efficiency 3 t/day for one extruder is 2187 kwh
  6. Condition
    1. Barmag lines stopped on mill floor, very good condition - they are ready to work
    2. They were running up to january 2009 year
    3. When lines were stopped they were running in excellent condition
  7. Inspection
    1. Possible immediately
  8. Shipping
    1. 2 lines can be loaded to from 12 to 20 containers 40" - estimated value
