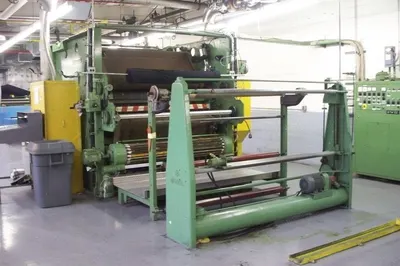

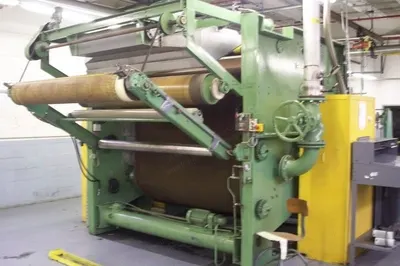

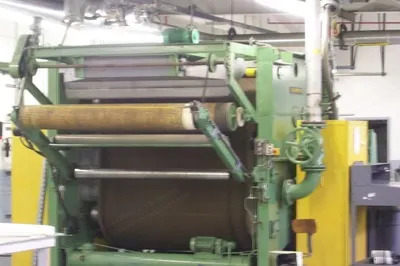

Kleinewefers, Transfer Printer / Laminator, 84 inch Cylinder Width, Thermal Hot Oil Heated, with Menzel A-Frame Unwinder

Kleinewefers, Transfer Printer / Laminator, 84 inch Cylinder Width, Thermal Hot Oil Heated, with Menzel A-Frame Unwinder

Description

  1. Overview
    1. Kleinewefers single cylinder transfer printer / laminator
    2. Main cylinder is 84 in wide and thermal hot oil heated

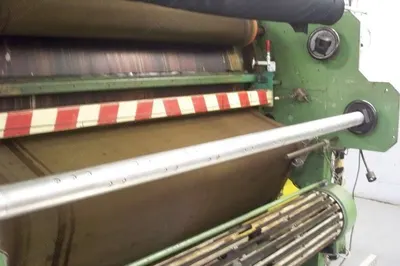

    3. 77 in rubber press roll presses the blanket against the cylinder for carrying the fabric
    4. 75 in mesh conveyor belt / blanket running on a 79 in carry roll
  2. Unwind And Entry Section
    1. Menzel a-frame unwinder with hydraulic connection (it is not a surface batcher); unit has a 90 in 6-roll light compensator
    2. Let off stand with mini super chucks, 1 1/4 in square bar, approx. 84, 2 rolls to bring the material under the operator’s platform into the Kleinewefers
    3. 2-station fabric let off with electric guider
    4. 72 in entry slot roll, approx. 14 in dia.
    5. 82 in x 3 in air bar mounted on the front
  3. Wind-Up Section
    1. 75 in surface type batcher (at rear of machine), hydraulic, for the final wind-up
  4. Overhead Hoist
    1. C&M series 627 overhead hoist, 1/2 ton
  5. Hot Oil Heater
    1. Design duty is 1.6 mm btu’s per hr
    2. Gross input is 2.2 mm btu’s per hr
    3. Heating surface is 159 sq. ft
    4. Operating max. temp. is 450
    5. Fuel is natural gas
    6. Fluid oil is para.nf
    7. Minimum flow rate is 130 gal/min
    8. Safety valve setting is 150 psi
    9. Power flame burner, model cr2-g-20a
    10. Natural gas at 2200 mbh
    11. 115 volts on the controls and 460 on the motor
