NovaStar, MH146, Vertical Mattress Conveyor, 600mm Base Width, 30m Length, Galvanized Steel Rollers (New)

NovaStar, MH146, Vertical Mattress Conveyor, 600mm Base Width, 30m Length, Galvanized Steel Rollers

Description

  1. Overview

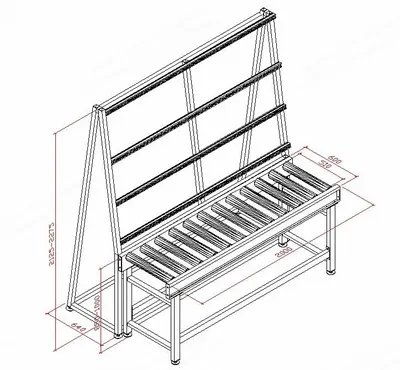

    1. Galvanized steel roller conveyor with back support consisting of horizontal rollers on bars
  2. Specifications
    1. Width of conveyor base: 600 mm (24 inches)
    2. Roll width: 20 inches
    3. Length: 30 m (100 feet)
    4. Height of conveyor and conveyor base: 850-1000 mm (33 to 40 inches)
    5. Thickness of metal base: 2.0 mm (0.78 inch)
    6. Height of back rest frame: 2200 mm (90 inches from the floor, approximately 54 inches from the top of the conveyor to the top of the frame)
