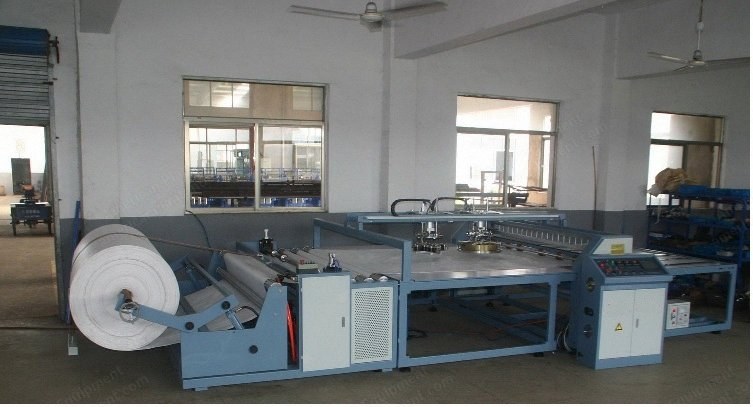

Functions include auto roll loading, deviation rectifying, measuring length, circle cutting, marking circle, linear cutter cutting, cloth feeding out, and more.
Functions can be selected according to your requirements.
Equipped with a plc centralized controlling system and color touch-screen for convenient, clear, and correct data setting, display, and recording.
Hydraulic pressure auto roll loading and deviation rectifying devices provide steady, tried, convenient, and functional operation.
Import servo controls the length of cloth for high precision and high speed.
The whole set of electrical heating linear cutter is made of alloy steel and will not be distorted.
Suitable for various heat cutting applications, including cutting of fibc basic fabric, sheet fabric, bottom fabric, top panel, and port fabric.
Specifications
Cutting width: max. 2300 mm
Cutting length: 500 to 10000 mm
“X” hole: 200 to 550 mm
“O” hole: 300 to 600 mm
Cutting precision: ±3 mm
Production speed/output (standard): 15 to 20 pieces per minute (fabric cutting)
Total installed capacity: 8 kW
Weight (about): 2800 kg
Dimension (l × w × h): 6880 × 2760 × 1600 mm
