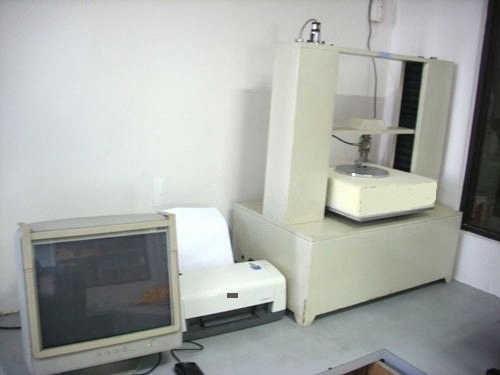

Description Overview Fully automatic machine performs precompression by itself Computer controlled with store and print capability Can convert newtons to pounds Inbuilt delay of 60 seconds Specifications Base plate has 361 holes with 6 mm diameter Distance between each hole: 20 mm Induction sensor force load cell Speed input frequency control: 0.01 mm/min Travel distance of the head: 250 mm (9.84 inches) Accuracy: ± 1% load Sample size: 40 cm x 40 cm x 10 cm Volume: 85 cm x 65 cm x 80 cm Weight (approx.): 130 kg Power: AC 220 V, 3 A Included Auxiliary Equipment Compression fixture with steel platform 40 cm x 40 cm Pressure head diameter steel disk: 203 mm Aperture: 6 mm, pitch: 20 mm Can supply with different size pads on the pressure side; standard size is 230 mm diameter (9.05 inches)
