NovaStar, WG101, Full Servo Reciprocating Packing Machine, Max Film Width 450mm, Speed Up to 80 Bags/Min, 380V (New)

NovaStar, WG101, Full Servo Reciprocating Packing Machine, Max Film Width 450mm, Speed Up to 80 Bags/Min, 380V

Description

  1. Overview
    1. Packing film max diameter: 350 mm
    2. Packing film max width: 450 mm
    3. Bag length: 100 mm to 350 mm
    4. Packing width: 50 mm to 125 mm (adjustable)
    5. Product height: 10 mm to 100 mm (adjustable)
    6. End seal type: reciprocating hot seal
    7. Speed: up to 80 bags per minute
  2. Specifications
    1. Interface: 5.7" LCD screen
    2. Servo motor: material feeding system, label system, film feeding system, end seal system
    3. End seal product: tension overload protection
    4. Hole system: synchronization rotary cut
    5. Compressed air requirement: 0.5 to 0.8 Mpa, 0.01 m³/min

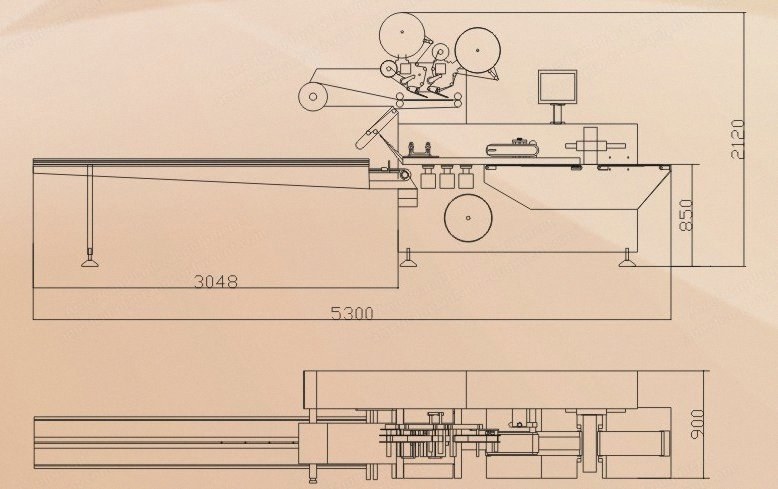

  3. Dimensions and Weight
    1. Machine area: 5600 mm x 1000 mm x 2000 mm
    2. Packing size: 3000 mm x 1200 mm x 2250 mm
    3. Weight: 1200 kg
