Gribetz, Panel Cutter, 90" Working Width, with Table

Gribetz, Panel Cutter, 90" Working Width, with Table

Description

  1. Overview

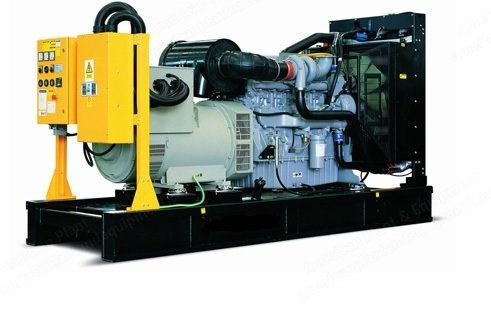

    1. Gensets producing a prime power output at 0.8 pf, 3ph, 4-wire, 50 hz at 1500 rpm, 440v/254v-415v/240v-400v/230v-220v/127v-200v/115v can be chosen.
    2. The units have a 10% overload rating for one hour in twelve.
    3. The units are rated for operation at normal temperature and pressure.
  2. Specifications
    1. Model P625C: open type, prime kva 625, prime kw 500, standby kva 687.5, standby kw 550, engine model ktaa19g6a, alternator model pl5l.
    2. Model P625CS: soundproof type, prime kva 625, prime kw 500, standby kva 687.5, standby kw 550, engine model ktaa19g6a, alternator model pl5l.
  3. Engine
    1. Perkins/cummins engine incorporating with radiator cooling and battery charging alternator.
    2. Engine model ktaa19g6a.
  4. Alternator
    1. Leroy somer/stamford/powerlink brushless alternator.
    2. Alternator model pl5l.
  5. Control System
    1. Control system with dse-702 control module to provide all monitoring and control functions.
  6. Included Components
    1. Output rated moulded case circuit breaker.
    2. Skid type base frame with integral fuel tank.
    3. Avms fitted to set.
    4. Lead acid starting batteries.
    5. Industrial silencer and flexible exhaust hose.
    6. One generator set/engine/alternator operational manual book, panel wiring diagram and factory test certificate.
