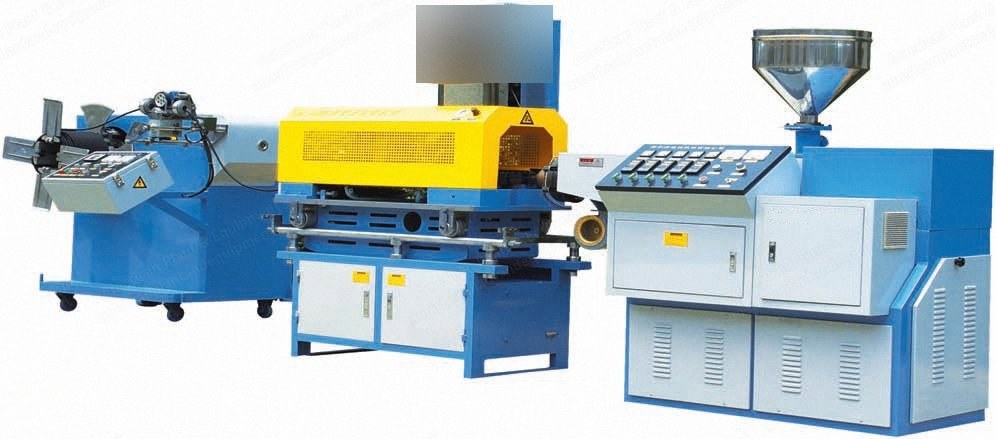

Screw material: 38CrMoAl excellent high grade alloy steel and processing surface by nitriding
Driving power of main machine: 7.5 kW
Adjusting speed method: Adjusting speed by frequency conversion
Barrel diameter: Φ45 mm
Barrel material: 38CrMoAl excellent high grade alloy steel and processing surface by nitriding
Heating zones: 4 zones
Heating power: approx. 8 kW
Mould material: Excellent mould steel
Hose size of mould: Φ10 mm to Φ34.5 mm
Quantity of mould: 46 pairs
Cooling method: By wind and water
Blower power: 0.5 kW
Driving power of forming machine: 1.5 kW
Adjusting speed method of forming machine: By frequency conversion
Power of lengthways cutter (choose and buy): 1.1 kW
Winder driving power: 1.5 kW
Winder adjusting speed method: Automatic control electromagnetism adjusting speed
General Specifications
Electrics: 380 V, 50 Hz
Installation dimension: 8 m × 1.5 m × 1.6 m
Total weight: approx. 2.5 t
Installed capacity: approx. 20 kW
Power Consumption
The actual power consumption of the machine during production is approx. 50% of total installed capacity because the machine has frequency conversion to adjust speed.
Worker Requirements
The machine can run in 3 shifts continuously and therefore uses less power per kg produced daily consumption. You can arrange workers as follows:
Workshop: 1 technician
Operator: 3 operators
Checker: 0
Manager: 1 non-production worker
Total workers: 5
