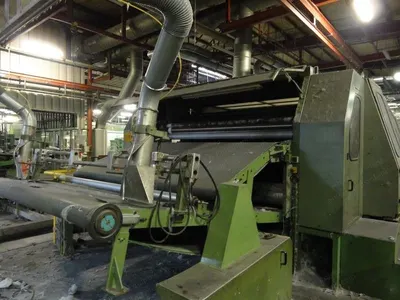

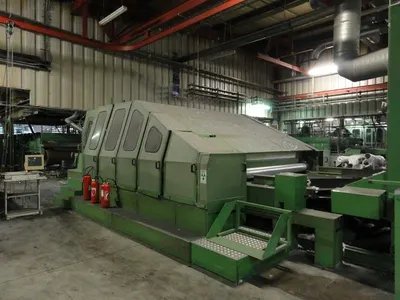

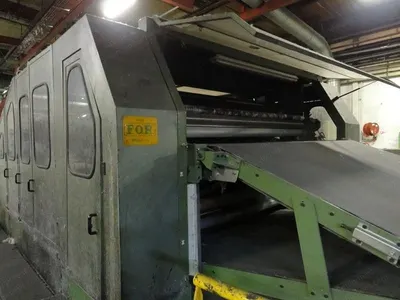

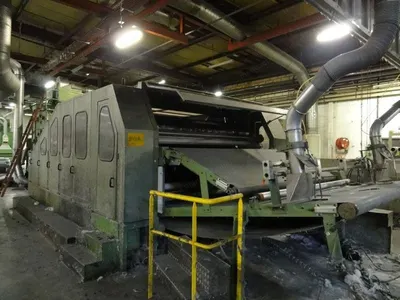

Laroche, Asselin, Pierret Non-Woven Carding, Opening, Needling and Cutting Line

Laroche, Asselin, Pierret Non-Woven Carding, Opening, Needling and Cutting Line

Description

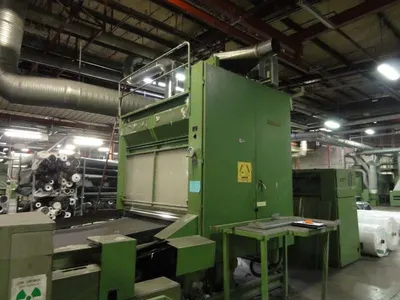

  1. Overview
    1. Non woven equipment for card for non woven.
    2. Year 1991.
    3. Width 2500 mm.
    4. Double doffer, web delivery.

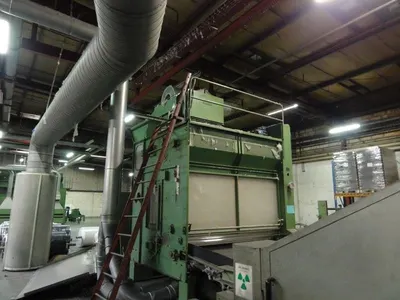

    5. Feeding with Hergeth chute feed and condensor.
    6. Production speed between 33 m/min for 30 gr fibre/m2 to 50 m/min for 13 gr fibre/m2, essentially viscose blends.
    7. Theoretical capacity of the card: 400 kg/hour.
    8. Current average production of the card: 170 kg/hour.
    9. Current production: chemical bonded nonwovens in weight range 17 to 65 grs/m2.
    10. Fibres used: 1.3 to 3.3 dtex, 38 to 70 mm, polyester or viscose fibres or blends.
    11. End products on this line: nonwovens for filtration, hygiene and automotive.
  2. Laroche Opener Type Cadett
    1. Year 1985.
    2. Belt width: 1300 mm, width 500 mm.
  3. Asselin Pre-Needle Loom
    1. Year 1987.
    2. Type SD26.
    3. Working width 2700 mm, traverse 60 mm.

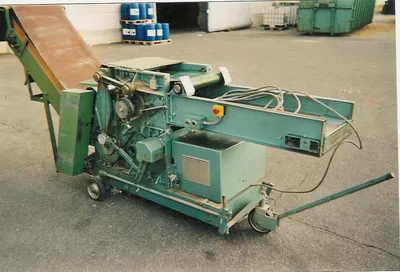

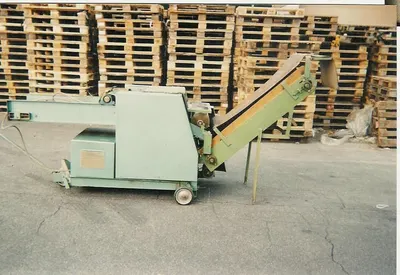

  4. Pierret Guillotine Fiber Cutter
    1. Type CT45-2R.
    2. Year 1980.
    3. Cutting width 450 mm.
  5. Carding Group
    1. 2 half moons dia. 850 complete with assembled supports.
    2. 4 stripper/cylinders dia. 119 mm.
    3. 3 worker/cylinders dia. 211 mm.
    4. 1 drum dia. 858 mm.
    5. 1 combing cylinder dia. 483 mm.
    6. 1 combing cylinder dia. 398 mm.
    7. 1 carrying cylinder dia. 308 mm.
    8. Carding group dia. 1508 mm.
    9. 2 half moons dia. 1500, complete with assembled supports.
    10. 3 cylinders dia. 119 mm of ventilation plate.
    11. 3 stripper/cylinders dia. 138 mm.
    12. 4 worker/cylinders dia. 260 mm.
    13. Combing group at delivery: 1 combing cylinder dia. 858 mm, 1 combing cylinder dia. 663 mm.
    14. Entangling group (superior & inferior): 2 entangling cylinders dia. 308 mm, 2 entangling cylinders dia. 260 mm, 2 delivery rollers dia. 138 mm, 4 grooved cylinders dia. 111 mm, 2 brush cylinders dia. 80 mm.
